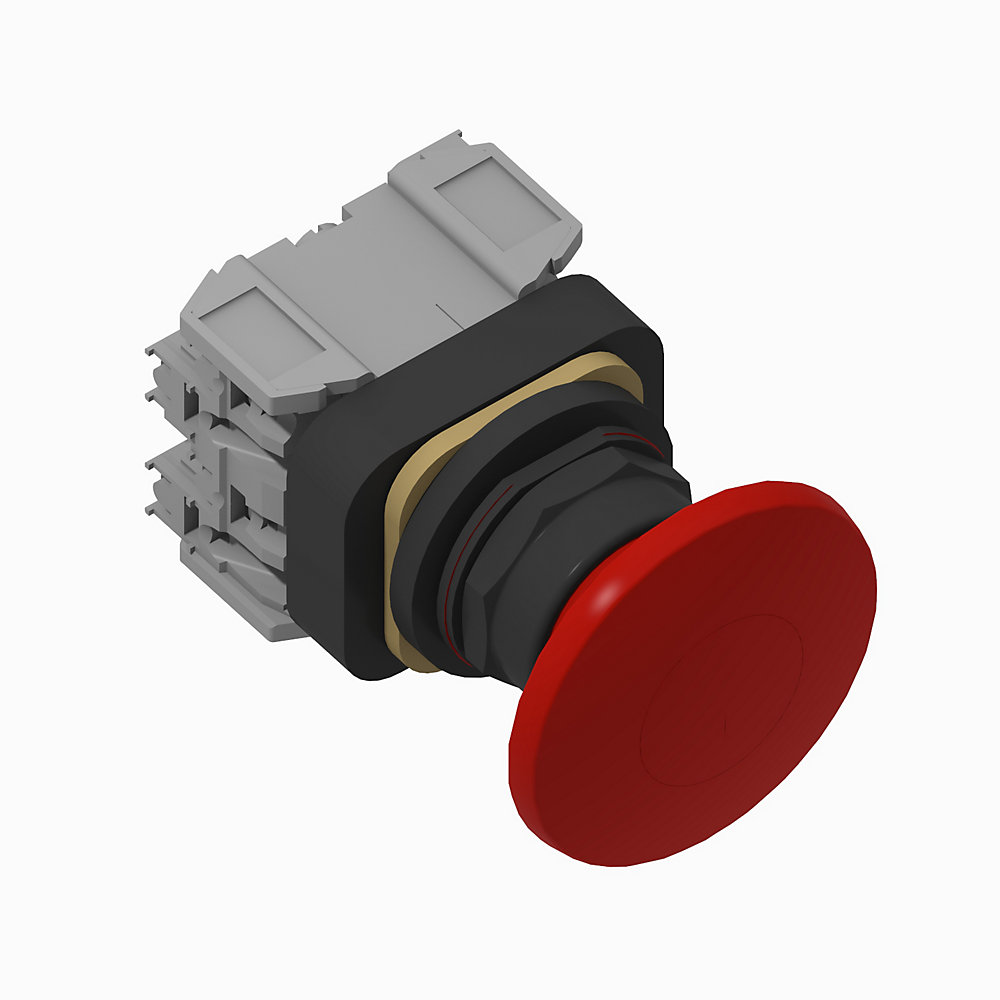

| Product Type | 30mm Push-Pull Device |
|---|
| Suitable for illumination | No |
|---|---|
| Operator cap/button shape | Round |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Operator cap type | Jumbo mushroom head |
| Hole diameter | 30.5 |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | Yes |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator cap color | Red |
| Operator cap/button size | 60 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator function | 3-position |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push-pull unit |
| Operator special function | Momentary-out, maintained-center, maintained-in |
| Contact block configuration | 2-NO 2-NC standard contacts |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Humidity | 50 |
|---|---|
| Operating temperature | -25 |
| Hazardous location rating | No |
| Storage temperature | -40 |
| Operator construction/material | Plastic |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.7 |
| Lead Time | 15 |
| Dimension Width | 5.7 |
| Dimension Length | 11.6 |
| Stock Status | NON_STOCKED |
| Weight | 0.163 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Selection Guide | 800T-BR012 |
| General | Specification | 800-TD009 |
| General | Push my Buttons Podcast | -- |
| General | Repair Parts List | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Sign in to your Rockwell Automation account to view Knowledgebase Articles.
Sign In
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Product Type | 30mm Push-Pull Device |
|---|
| Suitable for illumination | No |
|---|---|
| Operator cap/button shape | Round |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Operator cap type | Jumbo mushroom head |
| Hole diameter | 30.5 |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | Yes |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator cap color | Red |
| Operator cap/button size | 60 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator function | 3-position |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push-pull unit |
| Operator special function | Momentary-out, maintained-center, maintained-in |
| Contact block configuration | 2-NO 2-NC standard contacts |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Humidity | 50 |
|---|---|
| Operating temperature | -25 |
| Hazardous location rating | No |
| Storage temperature | -40 |
| Operator construction/material | Plastic |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.7 |
| Lead Time | 15 |
| Dimension Width | 5.7 |
| Dimension Length | 11.6 |
| Stock Status | NON_STOCKED |
| Weight | 0.163 |
| Weight Unit | KG |
| Dimension Unit | CM |
