800HC-16JRR2KB7AX

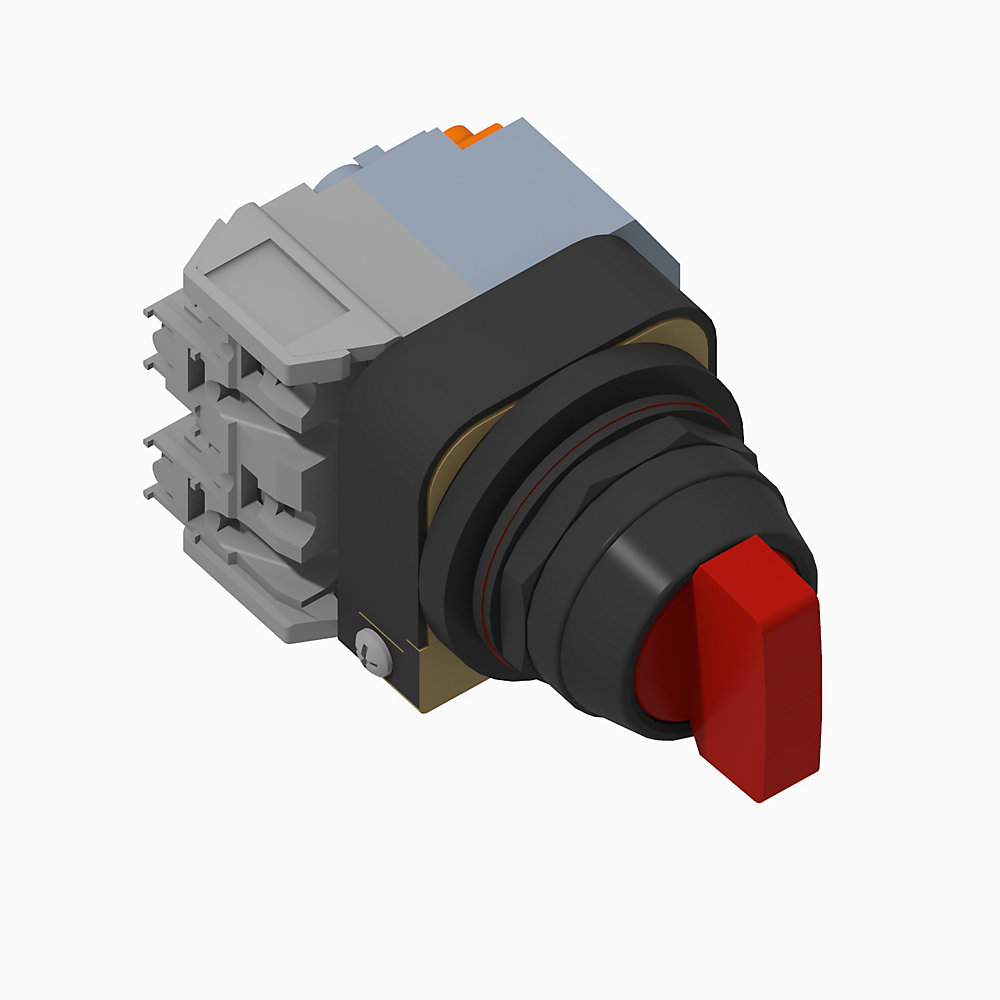

30mm Selector Switch 800H PB

Name: 30mm Selector Switch 800H PB
Brand: Rockwell Automation
SKU: 800HC-16JRR2KB7AX

Serial #:

Lifecycle status: Active

Product at a glance

Build America, Buy America

Lifecycle status: Active

Product at a glance

Build America, Buy America

Description

30.5mm Type 4/4X/13 Sel. Switch-Illum., 3 Pos., Transformer, 120V AC 50/60 Hz, Red, Std. Knob Maint., 1 NO-1 NC, Finger Safe Guards

Unique Product Identifier	800HC-16JRR2KB7AX
UPC	662074800728
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	30 mm Selector Switch

Number of switch positions	3
Hole diameter	30.5 mm
Type of electric connection	Screw connection
Operator mechanical design life (cycles, min.)	200000
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator type	Selector switch
Contact block termination tightening torque	Custom configuration - consult factory
Contact block electrical design life (cycles, at max. load)	Custom configuration - consult factory
Operator function	Maintained
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	Custom configuration - consult factory
Contact block termination wire range	Custom configuration - consult factory

Suitable for illumination	True
Illumination lamp type	Incandescent
Illumination module type	Transformer
Illumination module input voltage	120V AC @ 50/60Hz
Contact block thermal current rating	Custom configuration - consult factory
Contact block utilization category (AC)	Custom configuration - consult factory
Contact block utilization category (DC)	Custom configuration - consult factory
Contact block operational voltage, max	Custom configuration - consult factory
Position 1 contact block	1-NO 1-NC standard contacts
Position 3 contact block	No block this position

Terminations with finger safe covers	True
Operator cap/button material	Plastic
Operator construction/material	Plastic
Operator cap type	Standard knob
Operator cam code	KB7
Operator cap color	Red

Operating temperature	-25 °C
Hazardous location rating	Custom configuration - consult factory
Humidity	50 %
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Repair Parts List	--
Product Cutsheet	--
Selection Guide	800T-BR012
Push my Buttons Podcast	--

Installation Instructions	Publication
440t-in031_-en-p	440T-IN031

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800HC-16JRR2KB7AX
UPC	662074800728
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Technical Specifications

Type	30 mm Selector Switch

Number of switch positions	3
Hole diameter	30.5 mm
Type of electric connection	Screw connection
Operator mechanical design life (cycles, min.)	200000
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator type	Selector switch
Contact block termination tightening torque	Custom configuration - consult factory
Contact block electrical design life (cycles, at max. load)	Custom configuration - consult factory
Operator function	Maintained
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	Custom configuration - consult factory
Contact block termination wire range	Custom configuration - consult factory

Suitable for illumination	True
Illumination lamp type	Incandescent
Illumination module type	Transformer
Illumination module input voltage	120V AC @ 50/60Hz
Contact block thermal current rating	Custom configuration - consult factory
Contact block utilization category (AC)	Custom configuration - consult factory
Contact block utilization category (DC)	Custom configuration - consult factory
Contact block operational voltage, max	Custom configuration - consult factory
Position 1 contact block	1-NO 1-NC standard contacts
Position 3 contact block	No block this position

Terminations with finger safe covers	True
Operator cap/button material	Plastic
Operator construction/material	Plastic
Operator cap type	Standard knob
Operator cam code	KB7
Operator cap color	Red

Operating temperature	-25 °C
Hazardous location rating	Custom configuration - consult factory
Humidity	50 %
Storage temperature	-40 °C

Drawings

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Documents

Repair Parts List General
--

Product Cutsheet General
--

Selection Guide General
800T-BR012

Push my Buttons Podcast General
--

440t-in031_-en-p Installation Instructions
440T-IN031

800-td009_-en-p Technical Data
800-TD009

General	Publication
Repair Parts List	--
Product Cutsheet	--
Selection Guide	800T-BR012
Push my Buttons Podcast	--
Installation Instructions	Publication
440t-in031_-en-p	440T-IN031
Technical Data	Publication
800-td009_-en-p	800-TD009
