| Product Type |

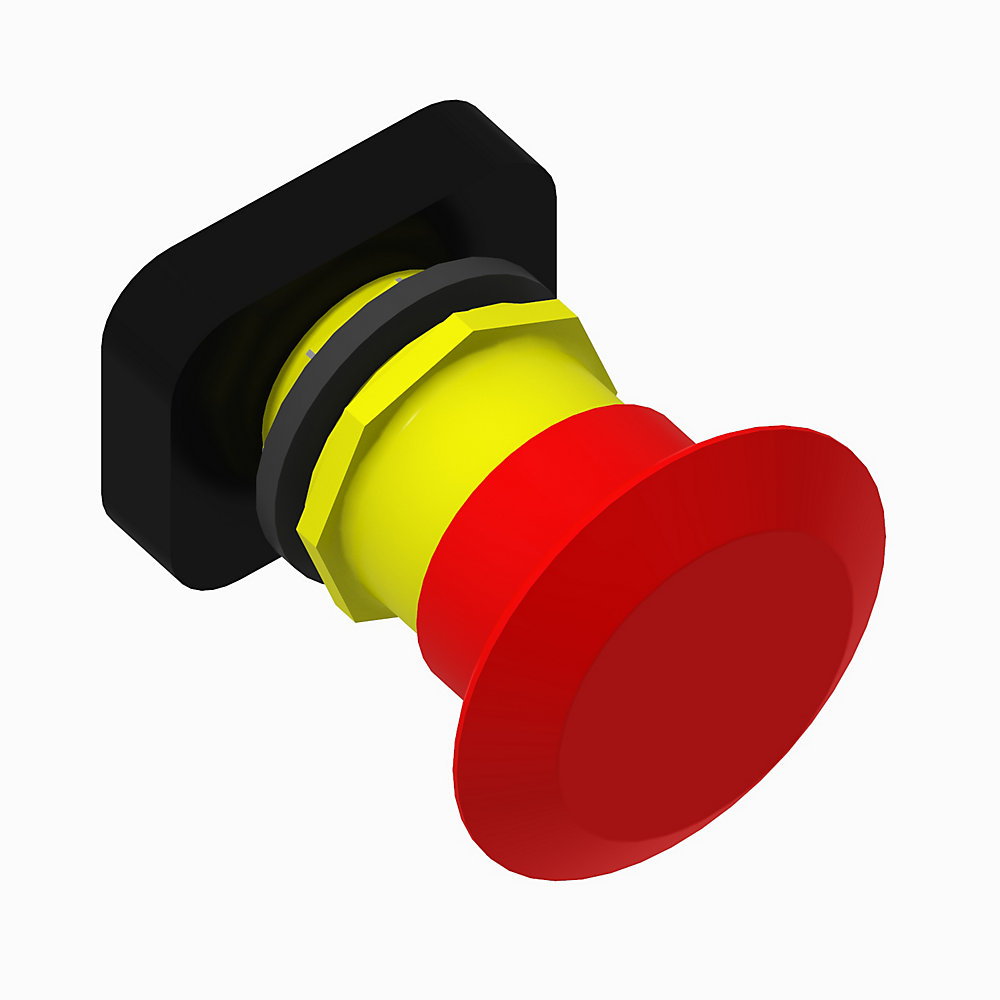

30mm Trigger Action E-Stop
|
|---|
| Diameter cap |
60 mm
|
|---|---|
| Hole diameter |
30.5 mm
|
| Terminations with finger safe covers |
False
|
| Suitable for illumination |
False
|
| Operator mechanical design life (cycles, min.) |
250000
|
| Operator special function |
Twist release
|
| Enclosure compatibility (NEMA type) |
1, 4, 4X, 12, 13
|
| Operator cap text/symbol |
No legend on cap
|
| Operator cap type |
Jumbo mushroom head
|
| Operator construction/material |
Plastic
|
| Operator type |
Emergency stop push button
|
| Operator function |
2-position maintained
|
| Vibration |
10 G maximum
|
| Contact block configuration |
No contacts
|
| Shock |
25 G (contact fragility)/100 G (no damage)
|
| Operator mechanism |
Trigger-action
|
| Operator cap/button size |
60
|
|---|---|
| Operator cap/button material |
Plastic
|
| Latch material |
Plastic / metal
|
| Operator cap color |
Red
|
| Termination style |
Screw
|
| Operator cap/button shape |
Round
|
| Operating temperature |
-25 °C
|
|---|---|
| Hazardous location rating |
False
|
| Humidity |
50 %
|
| Storage temperature |
-40 °C
|
| Certifications |
ABS, CCC, CE, CSA, EAC, GOST, UL
|
|---|
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- CE
- CSA Listed
- China CCC
- UL Recognized
- UL Listed
- Eurasion Economic Community
This product was certified with the above certifications as of 2025-09-07. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Product Type |
30mm Trigger Action E-Stop
|
|---|
| Diameter cap |
60 mm
|
|---|---|
| Hole diameter |
30.5 mm
|
| Terminations with finger safe covers |
False
|
| Suitable for illumination |
False
|
| Operator mechanical design life (cycles, min.) |
250000
|
| Operator special function |
Twist release
|
| Enclosure compatibility (NEMA type) |
1, 4, 4X, 12, 13
|
| Operator cap text/symbol |
No legend on cap
|
| Operator cap type |
Jumbo mushroom head
|
| Operator construction/material |
Plastic
|
| Operator type |
Emergency stop push button
|
| Operator function |
2-position maintained
|
| Vibration |
10 G maximum
|
| Contact block configuration |
No contacts
|
| Shock |
25 G (contact fragility)/100 G (no damage)
|
| Operator mechanism |
Trigger-action
|
| Operator cap/button size |
60
|
|---|---|
| Operator cap/button material |
Plastic
|
| Latch material |
Plastic / metal
|
| Operator cap color |
Red
|
| Termination style |
Screw
|
| Operator cap/button shape |
Round
|
| Operating temperature |
-25 °C
|
|---|---|
| Hazardous location rating |
False
|
| Humidity |
50 %
|
| Storage temperature |
-40 °C
|
| Certifications |
ABS, CCC, CE, CSA, EAC, GOST, UL
|
|---|
Drawings
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
Documents
|
Product Cutsheet
General
-- |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Certifications
- CE
- CSA Listed
- China CCC
- UL Recognized
- UL Listed
- Eurasion Economic Community
This product was certified with the above certifications as of 2025-09-07. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
