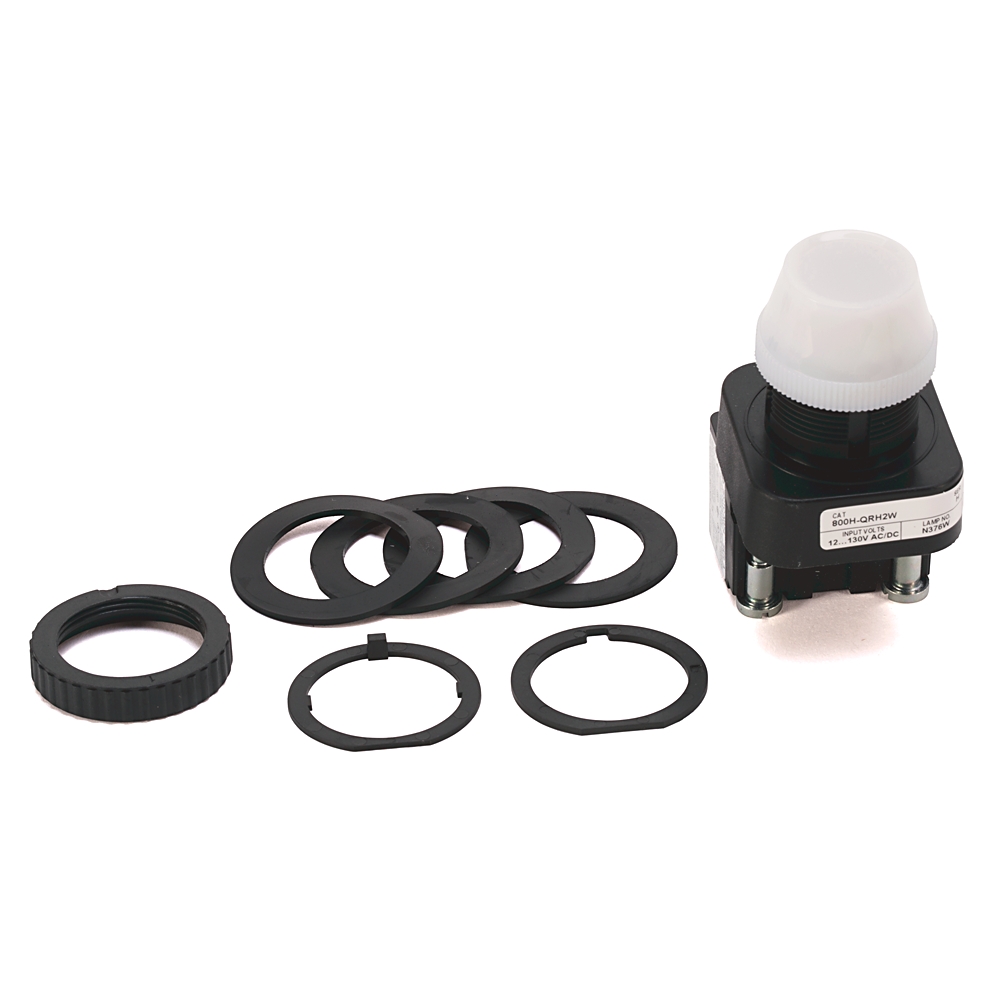

| Product Type | 30mm Pilot Light |
|---|
| Number of indicator lights | 1 |
|---|---|
| Illumination lamp type | LED |
| Operator construction/material | Plastic |
| Illumination module type | Full voltage |
| Illumination module input voltage | 12...130V AC/DC |
| Operator illuminated | True |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator type | Pilot light |
| Vibration | 10 G maximum |
| Shock | 100 G (no damage) |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button shape | Round |
| Operator cap type | Fresnal |
| Operator cap color | White |
| Operator cap/button material | Plastic |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | Class I, div. 2 |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Repair Parts List | -- |
| General | Push my Buttons Podcast | -- |
| General | Product Cutsheet | -- |
| General | Selection Guide | 800T-BR012 |
| Technical Data | 800-td009_-en-p | 800-TD009 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Product Type | 30mm Pilot Light |
|---|
| Number of indicator lights | 1 |
|---|---|
| Illumination lamp type | LED |
| Operator construction/material | Plastic |
| Illumination module type | Full voltage |
| Illumination module input voltage | 12...130V AC/DC |
| Operator illuminated | True |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Operator type | Pilot light |
| Vibration | 10 G maximum |
| Shock | 100 G (no damage) |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button shape | Round |
| Operator cap type | Fresnal |
| Operator cap color | White |
| Operator cap/button material | Plastic |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | Class I, div. 2 |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Drawings
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
Documents
|
Repair Parts List
General
-- |
|
Push my Buttons Podcast
General
-- |
|
Product Cutsheet
General
-- |
|
Selection Guide
General
800T-BR012 |
|
800-td009_-en-p
Technical Data
800-TD009 |
| Type | Resource | Publication |
|---|---|---|
| General | Repair Parts List | -- |
| General | Push my Buttons Podcast | -- |
| General | Product Cutsheet | -- |
| General | Selection Guide | 800T-BR012 |
| Technical Data | 800-td009_-en-p | 800-TD009 |
