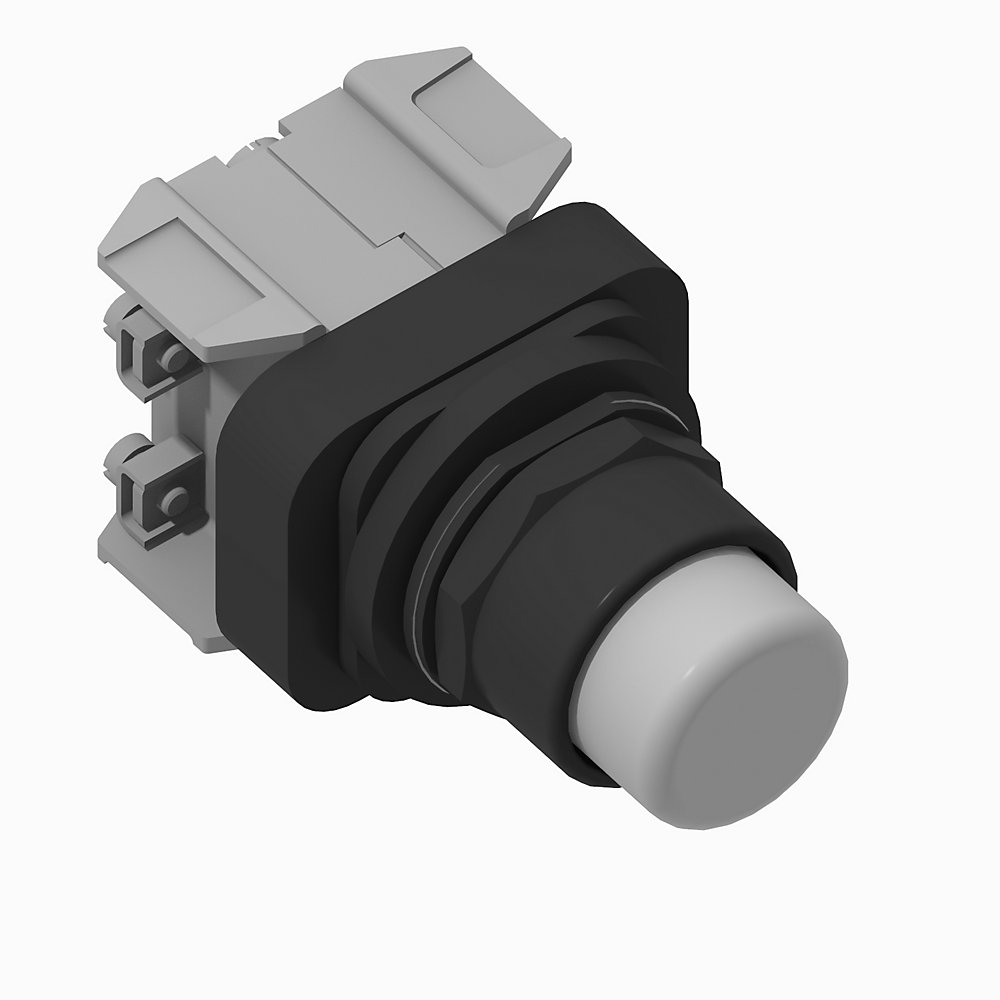

800H-QRB24CD1R

30mm Momentary Push Button 800H PB

Name: 800H-QRB24CD1R
Brand: Rockwell Automation

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of March 31, 2025, the 30mm Momentary Push Button 800H PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: March 31, 2025 Replacement Category: Functional Replacement

Lifecycle status: Discontinued

Discontinued Date: March 31, 2025 Replacement Category: Functional Replacement

Type	30mm Momentary Push Button

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	Incandescent
Illumination module type	Full voltage
Operator cap/button material	Plastic
Illumination module input voltage	24V AC/DC
Contact block operational voltage, max	150V AC @ 30V DC
Operator cap type	Extended head without guard

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Contact block electrical design life (cycles, at max. load)	200000
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Clear
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Illumination module termination wire range	17 - 18 AWG (x2)
Operator function	Momentary contact
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Contact block configuration	1 NO, logic reed contact block
Shock	25 G (contact fragility)/100 G (no damage)
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	Class I, Div. 2
Storage temperature	-40 °C

Operator construction/material	Plastic

Certifications	ABS, CCC, CE, CSA, EAC, GOST, UL

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Repair Parts List	--
Selection Guide	800T-BR012
Push my Buttons Podcast	--
Product Cutsheet	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Technical Specifications

Type	30mm Momentary Push Button

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	Incandescent
Illumination module type	Full voltage
Operator cap/button material	Plastic
Illumination module input voltage	24V AC/DC
Contact block operational voltage, max	150V AC @ 30V DC
Operator cap type	Extended head without guard

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Contact block electrical design life (cycles, at max. load)	200000
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Clear
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Illumination module termination wire range	17 - 18 AWG (x2)
Operator function	Momentary contact
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Contact block configuration	1 NO, logic reed contact block
Shock	25 G (contact fragility)/100 G (no damage)
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	Class I, Div. 2
Storage temperature	-40 °C

Operator construction/material	Plastic

Certifications	ABS, CCC, CE, CSA, EAC, GOST, UL

Drawings

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Documents

Repair Parts List General
--

Selection Guide General
800T-BR012

Push my Buttons Podcast General
--

Product Cutsheet General
--

800-td009_-en-p Technical Data
800-TD009

General	Publication
Repair Parts List	--
Selection Guide	800T-BR012
Push my Buttons Podcast	--
Product Cutsheet	--
Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library
