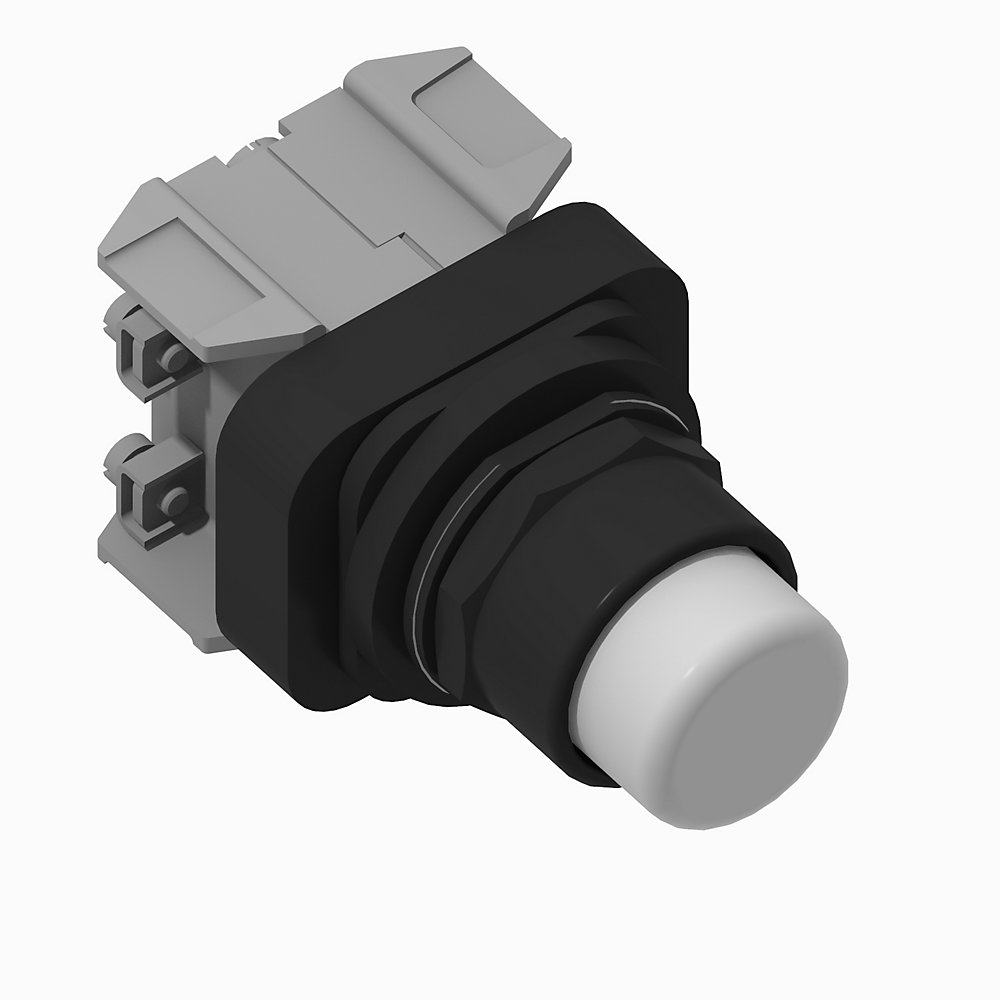

800H-QRB20WD1

30mm Momentary Push Button 800H PB

Name: 800H-QRB20WD1
Brand: Rockwell Automation

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of March 31, 2025, the 30mm Momentary Push Button 800H PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: March 31, 2025 Replacement Category: Functional Replacement Replacement Product: See Migration Documentation [https://www.rockwellautomation.com/en-us/support/product/product-compatibility-migration/product-lifecycle-status/migration-documents.html]

Product at a glance

Replacement Available

Lifecycle status: Discontinued

Product at a glance

Replacement Available

Type	30mm Momentary Push Button

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	Incandescent
Illumination module type	Full voltage
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Illumination module input voltage	240V AC/DC
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Extended head without guard

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Contact block electrical design life (cycles, at max. load)	1000000
Operator mechanical design life (cycles, min.)	250000
Operator cap color	White
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Illumination module termination wire range	16 - 18 AWG (x2)
Operator function	Momentary contact
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Contact block configuration	1 NO, standard contact block
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Plastic

Certifications	ABS, CCC, CE, CSA, EAC, GOST, UL
