800H-PRM16C

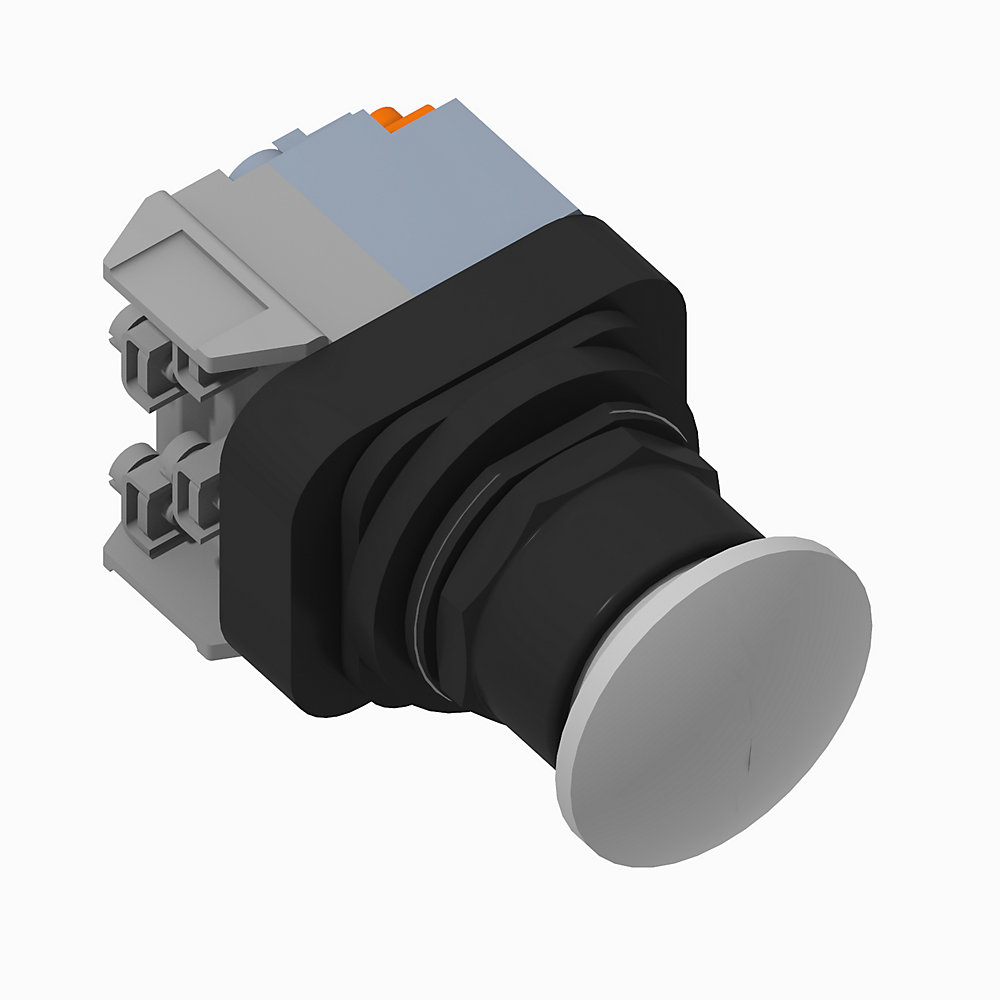

30mm Momentary Push Button 800H PB

Name: 30mm Momentary Push Button 800H PB
Brand: Rockwell Automation
SKU: 800H-PRM16C

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of March 31, 2025, the 30mm Momentary Push Button 800H PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: March 31, 2025 Replacement Category: Functional Replacement Replacement Product: See Migration Documentation [https://www.rockwellautomation.com/en-us/support/product/product-compatibility-migration/product-lifecycle-status/migration-documents.html]

Product at a glance

Replacement Available

Description

30.5mm Type 4/4X/13 Mom. Contact PB-Illum., Clear, Mushroom Hd, Incand./No Options, 120V AC 50/60 Hz, 1 NO-1 NC

Lifecycle status: Discontinued

Product at a glance

Replacement Available

Description

30.5mm Type 4/4X/13 Mom. Contact PB-Illum., Clear, Mushroom Hd, Incand./No Options, 120V AC 50/60 Hz, 1 NO-1 NC

Unique Product Identifier	800H-PRM16C
UPC	662468816915
Standard Warranty Duration	1 year See details
Country of Origin	China

Type	30mm Momentary Push Button

Contact block operational voltage, max	600V AC @ 600V DC
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Illumination lamp type	Incandescent
Illumination module input voltage	120V AC @ 50/60Hz
Illumination module type	Transformer
Operator cap type	Mushroom head
Operator cap/button material	Plastic
Operator cap/button shape	Round
Suitable for illumination	True

Mechanical

Contact block configuration	1 NO, 1 NC, standard contact block
Contact block electrical design life (cycles, at max. load)	1000000
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	14 - 18 AWG (x2)
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Hole diameter	30.5 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	15 - 18 AWG (x2)
Operator cap color	Clear
Operator cap/button size	40 mm
Operator function	Momentary contact
Operator mechanical design life (cycles, min.)	250000
Operator type	Push button
Shock	25 G (contact fragility)/100 G (no damage)
Terminations with finger safe covers	False
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator construction/material	Plastic

Hazardous location rating	False
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Click the Download CAD button below to view all file formats available for download.

General	Publication
Push my Buttons Podcast	--
Product Cutsheet	--
Selection Guide	800T-BR012
Repair Parts List	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800H-PRM16C
UPC	662468816915
Standard Warranty Duration	1 year See details
Country of Origin	China

Electrical & Connectivity

Type	30mm Momentary Push Button

Contact block operational voltage, max	600V AC @ 600V DC
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Illumination lamp type	Incandescent
Illumination module input voltage	120V AC @ 50/60Hz
Illumination module type	Transformer
Operator cap type	Mushroom head
Operator cap/button material	Plastic
Operator cap/button shape	Round
Suitable for illumination	True

Physical Characteristics

Mechanical

Contact block configuration	1 NO, 1 NC, standard contact block
Contact block electrical design life (cycles, at max. load)	1000000
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	14 - 18 AWG (x2)
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Hole diameter	30.5 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	15 - 18 AWG (x2)
Operator cap color	Clear
Operator cap/button size	40 mm
Operator function	Momentary contact
Operator mechanical design life (cycles, min.)	250000
Operator type	Push button
Shock	25 G (contact fragility)/100 G (no damage)
Terminations with finger safe covers	False
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator construction/material	Plastic

Compliance & Environment

Hazardous location rating	False
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C
