800H-PP46

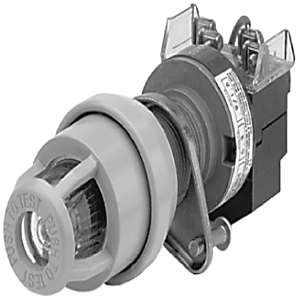

Type 7_9 Pilot Light 800H PB

Name: Type 7_9 Pilot Light 800H PB
Brand: Rockwell Automation
SKU: 800H-PP46

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of September 30, 2024, the Type 7_9 Pilot Light 800H PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: September 30, 2024 Replacement Category: Engineering Replacement Replacement Product: 800H-PPH46M [https://www.rockwellautomation.com/en-us/products/details.800H-PPH46M.html]

Product at a glance

Replacement Available

Lifecycle status: Discontinued

Discontinued Date: September 30, 2024 Replacement Category: Engineering Replacement Replacement Product: 800H-PPH46M [https://www.rockwellautomation.com/en-us/products/details.800H-PPH46M.html]

Product at a glance

Replacement Available

Description

Hazardous Location Type 7&9 Pilot Light, Standard Barrel Length, Xfmr, No Test Option, Incand., No Lens, 480V AC 50/60 Hz

Unique Product Identifier	800H-PP46
UPC	662073452881
Estimated Lead Time	15 days
Country of Origin	United States of America

Illumination Option Selection	P-L with Incandescent LA
Power Module Selection	Transformer Type
Type	Type 7_9 Pilot Light

Number of indicator lights	1
With light source	True
Type of lamp socket	Other
Rated supply voltage	480V AC @ 50/60Hz
Power module type	Transformer or dual input
Lamp test type	Pilot light with incandescent lA
Dielectric strength	2200V @ 1min, 1300V @ 1min (Logic Reed)

With front ring	False
Construction type lens	Round
Lens color	No lens with no contacts
Type of lens	High
Finger-safe guards	No guards on terminals

Type of electric connection	Screw connection
Vibration	10...2000 Hz, 1.52 mm displacement (peak-to-peak) 10 G maximum
Shock	1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G
Terminal screw torque	6 in-lb
Wire gauge	18 AWG
Mechanical life operations	250000 minimum
Degree of protection	Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories)

Operating temperature	-20 °C
Humidity	50% @ 104°F (40 °C)
Storage temperature	-40 °C

General	Publication
Repair Parts List	--
Technical Document	800-TD011
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800H-PP46
UPC	662073452881
Estimated Lead Time	15 days
Country of Origin	United States of America

Technical Specifications

Illumination Option Selection	P-L with Incandescent LA
Power Module Selection	Transformer Type
Type	Type 7_9 Pilot Light

Number of indicator lights	1
With light source	True
Type of lamp socket	Other
Rated supply voltage	480V AC @ 50/60Hz
Power module type	Transformer or dual input
Lamp test type	Pilot light with incandescent lA
Dielectric strength	2200V @ 1min, 1300V @ 1min (Logic Reed)

With front ring	False
Construction type lens	Round
Lens color	No lens with no contacts
Type of lens	High
Finger-safe guards	No guards on terminals

Type of electric connection	Screw connection
Vibration	10...2000 Hz, 1.52 mm displacement (peak-to-peak) 10 G maximum
Shock	1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G
Terminal screw torque	6 in-lb
Wire gauge	18 AWG
Mechanical life operations	250000 minimum
Degree of protection	Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories)

Operating temperature	-20 °C
Humidity	50% @ 104°F (40 °C)
Storage temperature	-40 °C

Documents

Repair Parts List General
--

Technical Document General
800-TD011

Product Cutsheet General
--

General	Publication
Repair Parts List	--
Technical Document	800-TD011
Product Cutsheet	--
