800H-JR91KE7CR

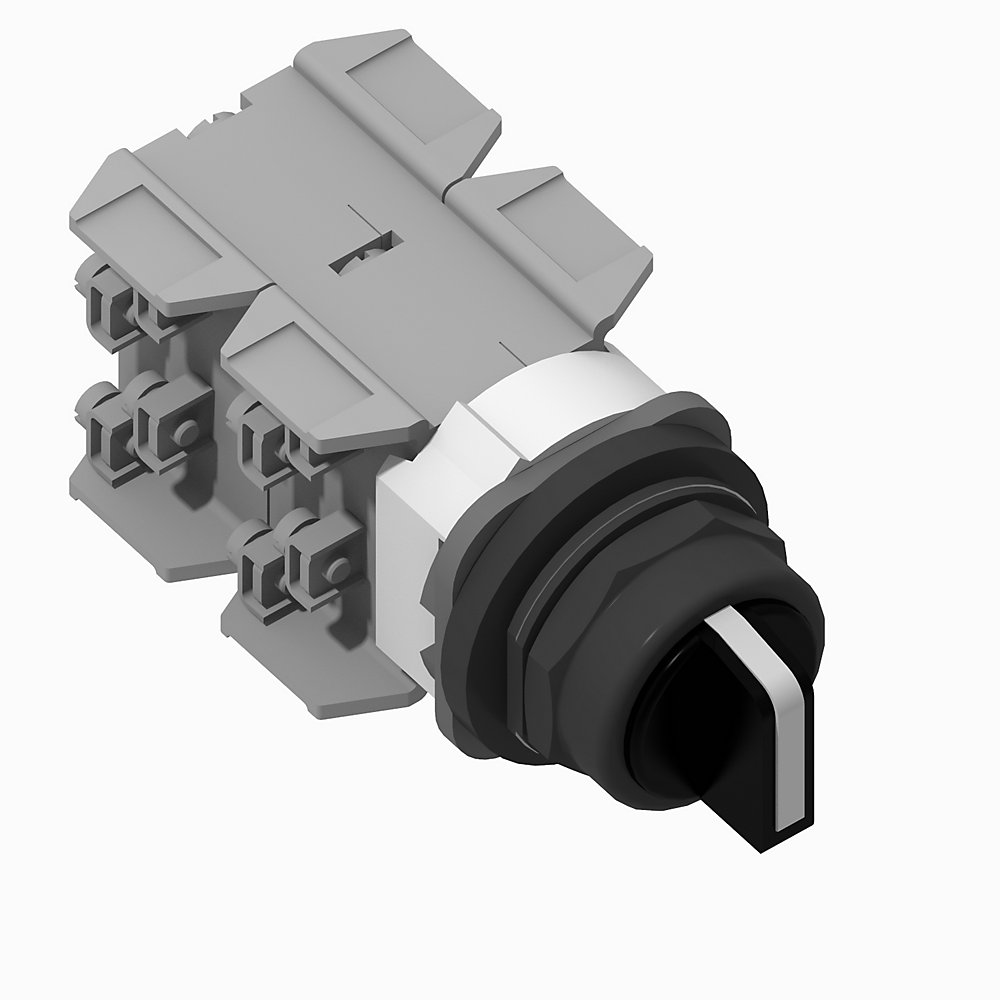

30mm Selector Switch 800H PB

Name: 30mm Selector Switch 800H PB
Brand: Rockwell Automation
SKU: 800H-JR91KE7CR

Serial #:

Lifecycle status: Active

Description

800H 3 Position Selector Switch , White, Std. Knob Spring Rtn fr/ Both, 3 Position, Cam and Contact Blocks, Code R for 800H , Yes

Unique Product Identifier	800H-JR91KE7CR
UPC	611320381801
Estimated Lead Time	84 days
Country of Origin	United States of America

Type	30 mm Selector Switch

Number of switch positions	3
Hole diameter	30.5 mm
Type of electric connection	Screw connection
Operator mechanical design life (cycles, min.)	1000000
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Operator type	Selector switch
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block electrical design life (cycles, at max. load)	200000
Operator function	Spring return from left and right
Shock	25 G (contact fragility)/100 G (no damage)
Contact block termination wire range	14 - 18 AWG (x2)

Suitable for illumination	False
Contact block configuration	4-NO 4-NC logic reed contacts
Contact block operational voltage, max	150V AC @ 30V DC

Terminations with finger safe covers	False
Operator cap/button material	Plastic
Operator construction/material	Plastic
Operator cap type	Standard knob
Operator cam code	KE7
Operator cap color	Black with white Insert

Operating temperature	-25 °C
Hazardous location rating	Class I, div. 2
Humidity	50 %
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)
2D Dimension Drawing (PDF)	Download (PDF)
Product Drawing	Drawing (DXF)

Drawings
3D STEP Model (STP) Download (ZIP)
2D Dimension Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)

General	Publication
Repair Parts List	--
800T/H 30 mm Push Button Brochure	800T-BR012
Product Cutsheet	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800H-JR91KE7CR
UPC	611320381801
Estimated Lead Time	84 days
Country of Origin	United States of America

Technical Specifications

Type	30 mm Selector Switch

Number of switch positions	3
Hole diameter	30.5 mm
Type of electric connection	Screw connection
Operator mechanical design life (cycles, min.)	1000000
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Operator type	Selector switch
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block electrical design life (cycles, at max. load)	200000
Operator function	Spring return from left and right
Shock	25 G (contact fragility)/100 G (no damage)
Contact block termination wire range	14 - 18 AWG (x2)

Suitable for illumination	False
Contact block configuration	4-NO 4-NC logic reed contacts
Contact block operational voltage, max	150V AC @ 30V DC

Terminations with finger safe covers	False
Operator cap/button material	Plastic
Operator construction/material	Plastic
Operator cap type	Standard knob
Operator cam code	KE7
Operator cap color	Black with white Insert

Operating temperature	-25 °C
Hazardous location rating	Class I, div. 2
Humidity	50 %
Storage temperature	-40 °C

Drawings

Drawings
3D STEP Model (STP)	Download (ZIP)
2D Dimension Drawing (PDF)	Download (PDF)
Product Drawing	Drawing (DXF)

Drawings
3D STEP Model (STP) Download (ZIP)
2D Dimension Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)

Documents

Repair Parts List General
--

800T/H 30 mm Push Button Brochure General
800T-BR012

Product Cutsheet General
--

800-td009_-en-p Technical Data
800-TD009

General	Publication
Repair Parts List	--
800T/H 30 mm Push Button Brochure	800T-BR012
Product Cutsheet	--
Technical Data	Publication
800-td009_-en-p	800-TD009
