800H-HP3113KB6

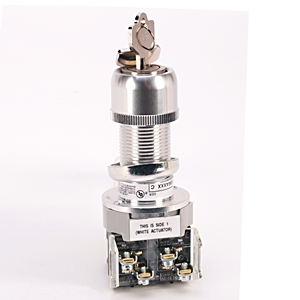

Type 7&9 Selector Switch 800H PB

Name: Type 7&9 Selector Switch 800H PB
Brand: Rockwell Automation
SKU: 800H-HP3113KB6

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of June 30, 2025, the Type 7&9 Selector Switch 800H PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: June 30, 2025 Replacement Category: Direct Replacement

Description

Hazardous Location Type 7&9 2 Pos. Cyl. Lock Sel. Switch, Standard Barrel Length, Maint., Key Removal - Left, D992 Key, No Contacts, No Contacts, No Contacts, No Contacts

Lifecycle status: Discontinued

Discontinued Date: June 30, 2025 Replacement Category: Direct Replacement

Description

Hazardous Location Type 7&9 2 Pos. Cyl. Lock Sel. Switch, Standard Barrel Length, Maint., Key Removal - Left, D992 Key, No Contacts, No Contacts, No Contacts, No Contacts

Unique Product Identifier	800H-HP3113KB6
UPC	885630131351
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

2-Position Cam Options	KB6 Cam,Maint., Lock - Left, Std. Key
Key Options	D992
Position 2 Contact Block	No

Dielectric strength	2200V @ 1min, 1300V @ 1min (Logic Reed)
Electrical life cycle	1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed)
Position 1 contact block	No contact blocks
Position 2 contact block	Not applicable
Position 3 contact block	No contact blocks
Position 4 contact block	Not applicable
Suitable for illumination	False
Wire gauge	18 to 14 AWG

Mechanical

Degree of protection	Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories)
Hole diameter	30.5 mm
Mechanical life operations	200000 min
Number of positions	2-position selector switch
Number of switch positions	2
Shock	1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G
Spring-return	False
Switching function latching	True
Terminal screw torque	6 in-lb
Type of electric connection	Screw connection
Typical operating forces operator without contact blocks	Maintained selector switch: 4 in-lb maximum
Vibration	10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed)
With light source	False

Construction

2-position cam options	KB6 cam
2-position lock/function	Maintained, lock in left position, standard key
Finger-safe guards	No guards on terminals
Key options	D992
Material front ring	Plastic
Type of control element	Key
With front ring	True

Humidity	50% @ 104°F (40 °C)
Operating temperature	-20 °C
Storage temperature	-40 °C

General	Publication
Technical Document	800-TD009
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library
