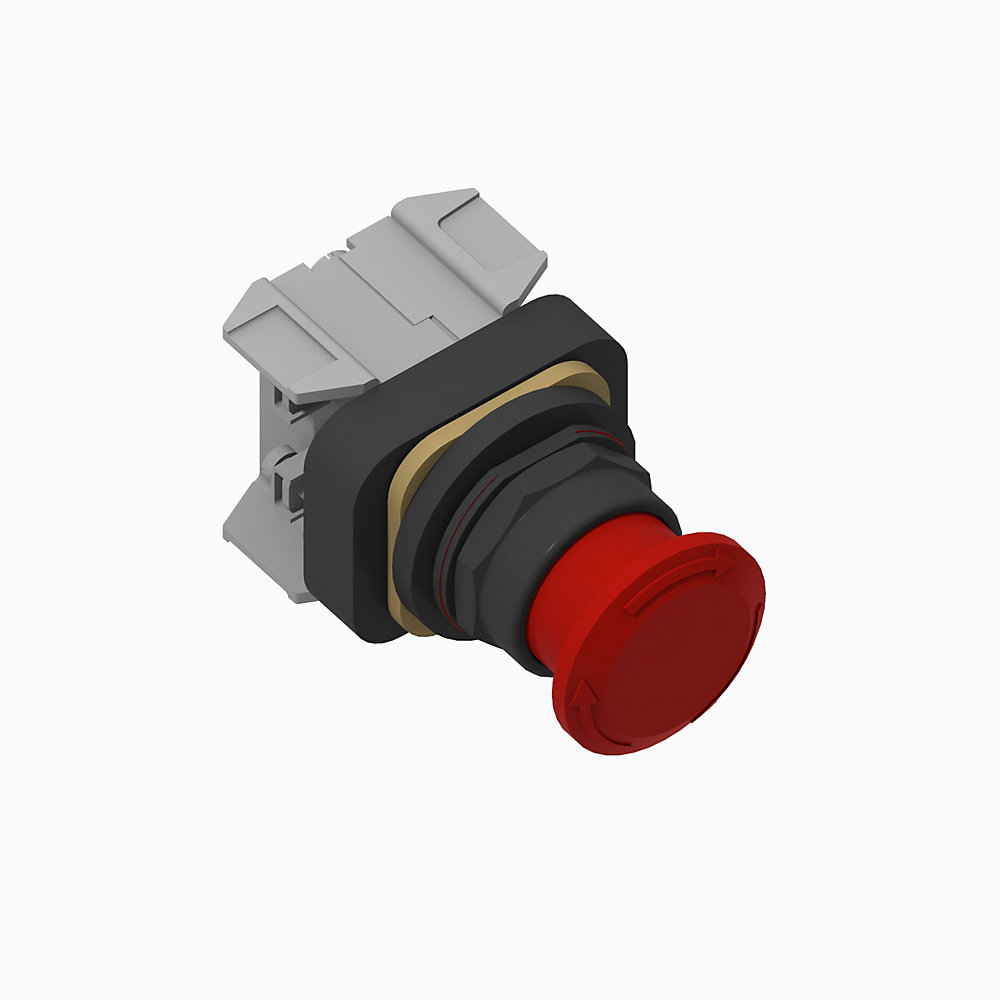

30mm Push-Pull Device 800H PB
Rockwell Automation announces that as of
March 31, 2025,
the 30mm Push-Pull Device 800H PB will be discontinued and no longer available for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
March 31, 2025
Replacement Category:
Functional Replacement
Replacement Product:
SeeMigrationDoc
[https://www.rockwellautomation.com/en-us/products/details.SeeMigrationDoc.html]
Rockwell Automation announces that as of
March 31, 2025,
the 30mm Push-Pull Device 800H PB will be discontinued and no longer available for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
March 31, 2025
Replacement Category:
Functional Replacement
Replacement Product:
SeeMigrationDoc
[https://www.rockwellautomation.com/en-us/products/details.SeeMigrationDoc.html]
| Cap Selection | Standard Mushroom Head |
|---|---|
| Product Type | 30mm Push-Pull Device |
| Suitable for illumination | True |
|---|---|
| Operator cap/button shape | Round |
| Illumination lamp type | Incandescent |
| Illumination module type | Full voltage |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 10 A |
| Illumination module input voltage | 240V AC/DC |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Operator cap type | Mushroom head |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator cap color | Red |
| Operator cap/button size | 40 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Illumination module termination wire range | 16 - 18 AWG (x2) |
| Operator function | 2-position |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push-pull unit |
| Operator special function | Maintained with twist release |
| Contact block configuration | 1-NCLB standard contact |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | False |
| Storage temperature | -40 °C |
| Operator construction/material | Plastic |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
