800H-FRXT1A2

30mm Push-Pull Device 800H PB

Name: 30mm Push-Pull Device 800H PB
Brand: Rockwell Automation
SKU: 800H-FRXT1A2

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of March 31, 2025, the 30mm Push-Pull Device 800H PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: March 31, 2025 Replacement Category: Direct Replacement Replacement Product: See Migration Documentation [https://www.rockwellautomation.com/en-us/support/product/product-compatibility-migration/product-lifecycle-status/migration-documents.html]

Product at a glance

Replacement Available

Lifecycle status: Discontinued

Product at a glance

Replacement Available

Description

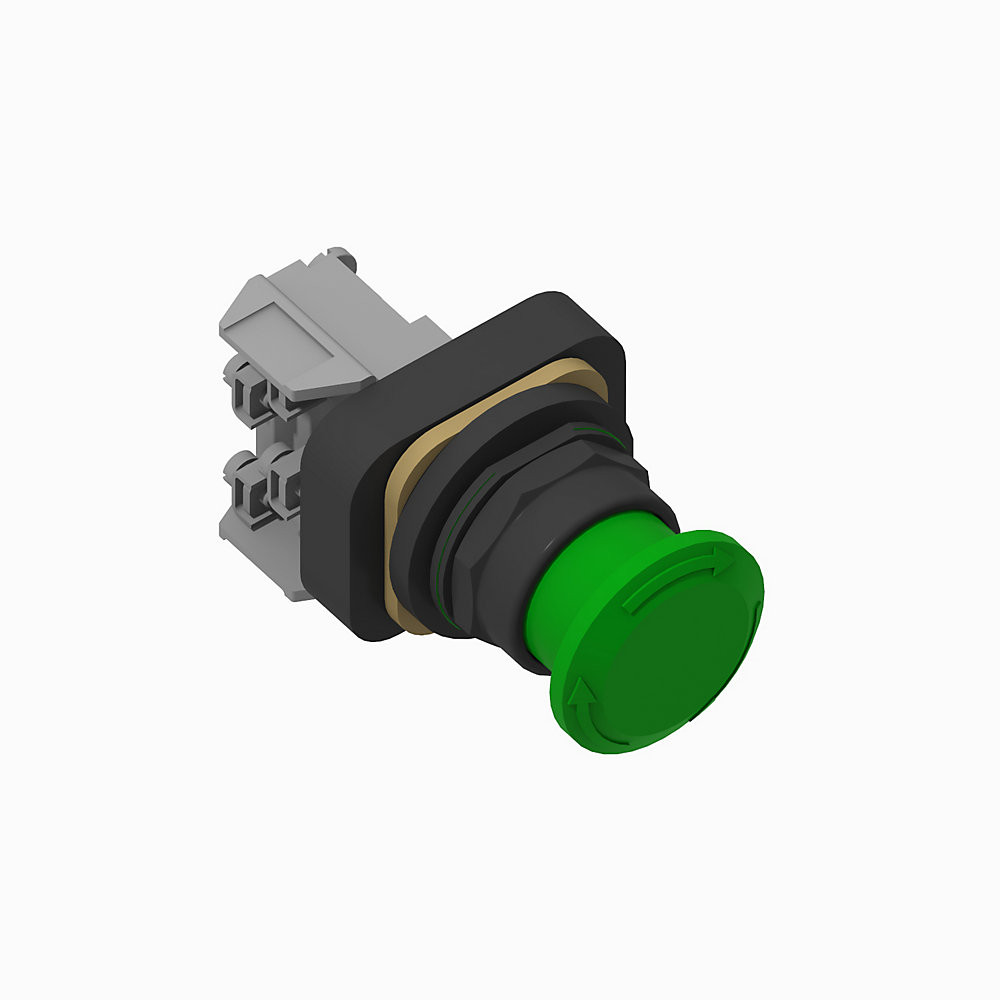

30.5mm Type 4/4X/13 2 Pos. PB-Non-Illum., Push-Pull / Twist to Release, Green, 2 NO

Unique Product Identifier	800H-FRXT1A2
UPC	662468028851
Estimated Lead Time	42 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Operator Type	Standard Mushroom Head
Type	30mm Push-Pull Device

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Mushroom head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Contact block electrical design life (cycles, at max. load)	1000000
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Green
Operator cap/button size	40 mm
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Operator function	2-position
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push-pull unit
Operator special function	Maintained with twist release
Contact block configuration	2-NO standard contacts
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Plastic

Drawings
2D Dimension Drawing (PDF)	Download (PDF)
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
2D Dimension Drawing (PDF) Download (PDF)
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DXF)

General	Publication
Selection Guide	800T-BR012
Push my Buttons Podcast	--
Repair Parts List	--
Product Cutsheet	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

American Bureau of Shippin

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800H-FRXT1A2
UPC	662468028851
Estimated Lead Time	42 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Technical Specifications

Operator Type	Standard Mushroom Head
Type	30mm Push-Pull Device

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Mushroom head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Contact block electrical design life (cycles, at max. load)	1000000
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Green
Operator cap/button size	40 mm
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Operator function	2-position
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push-pull unit
Operator special function	Maintained with twist release
Contact block configuration	2-NO standard contacts
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Plastic

Drawings

Drawings
2D Dimension Drawing (PDF)	Download (PDF)
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
2D Dimension Drawing (PDF) Download (PDF)
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DXF)

Documents

Selection Guide General
800T-BR012

Push my Buttons Podcast General
--

Repair Parts List General
--

Product Cutsheet General
--

800-td009_-en-p Technical Data
800-TD009

General	Publication
Selection Guide	800T-BR012
Push my Buttons Podcast	--
Repair Parts List	--
Product Cutsheet	--
Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library
