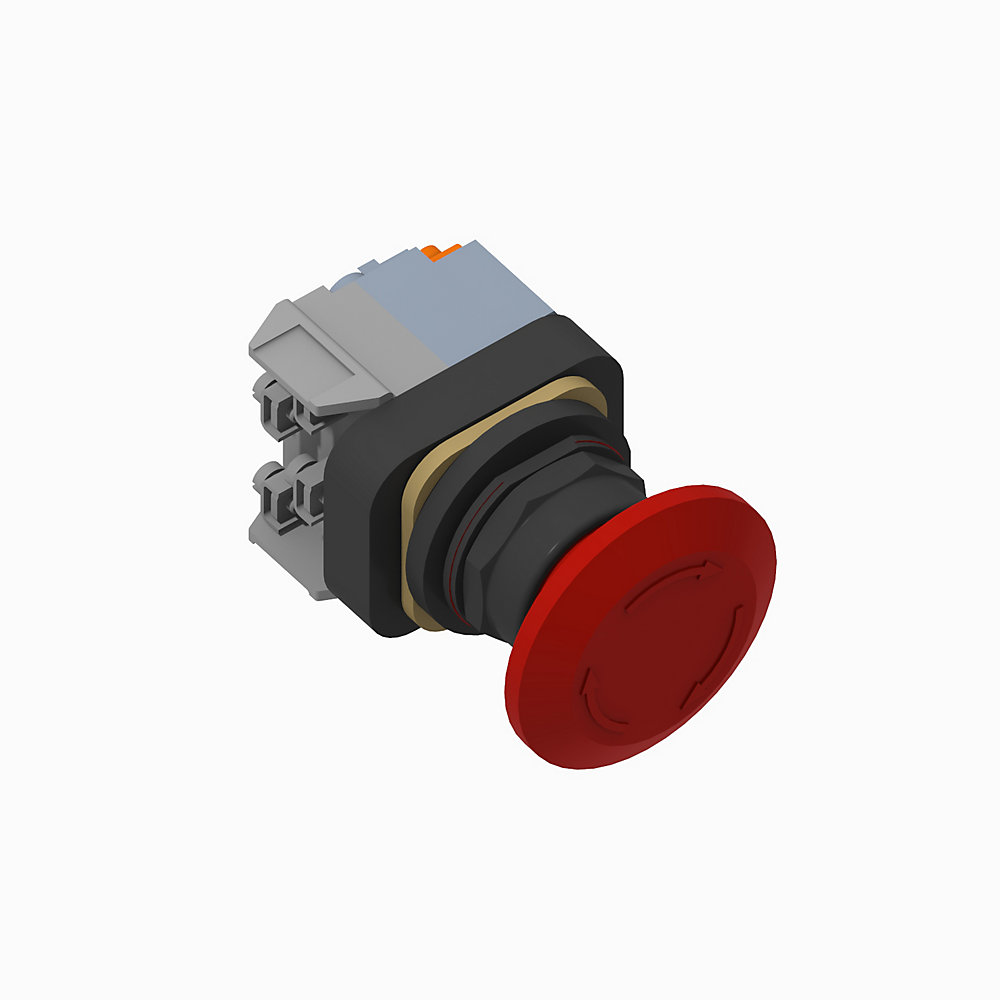

30mm Push-Pull Device 800H PB
Rockwell Automation announces that as of
December 20, 2024,
the 30mm Push-Pull Device 800H PB will be discontinued and no longer available for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
December 20, 2024
Replacement Category:
Functional Replacement
Replacement Product:
SeeMigrationDoc
[https://www.rockwellautomation.com/en-us/products/details.SeeMigrationDoc.html]
Rockwell Automation announces that as of
December 20, 2024,
the 30mm Push-Pull Device 800H PB will be discontinued and no longer available for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
December 20, 2024
Replacement Category:
Functional Replacement
Replacement Product:
SeeMigrationDoc
[https://www.rockwellautomation.com/en-us/products/details.SeeMigrationDoc.html]
| Cap Selection | Jumbo Mushroom Head |
|---|---|
| Product Type | 30mm Push-Pull Device |
| Suitable for illumination | True |
|---|---|
| Operator cap/button shape | Round |
| Illumination lamp type | Incandescent |
| Illumination module type | Transformer |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 2.5 A |
| Illumination module input voltage | 120V AC @ 50/60Hz |
| Contact block utilization category (AC) | C300, AC-15 |
| Contact block utilization category (DC) | R150, DC-13 |
| Contact block operational voltage, max | 300V AC @ 150V DC |
| Operator cap type | Jumbo mushroom head |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Contact block electrical design life (cycles, at max. load) | 1000000 None |
| Operator mechanical design life (cycles, min.) | 250000 None |
| Operator cap color | Red |
| Operator cap/button size | 60 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Illumination module termination wire range | 15 - 18 AWG (x2) |
| Operator function | 2-position |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push-pull unit |
| Operator special function | Maintained with twist release |
| Contact block configuration | 1-NO 1-NC PenTUFF contacts |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | False |
| Storage temperature | -40 °C |
| Operator construction/material | Plastic |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.7 |
| Lead Time | 15 |
| Dimension Width | 5.7 |
| Dimension Length | 11.6 |
| Stock Status | NON_STOCKED |
| Weight | 0.216 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Specification | 800-TD009 |
| General | Push my Buttons Podcast | -- |
| General | Repair Parts List | -- |
| General | Selection Guide | 800T-BR012 |
| General | Product Cutsheet | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Sign in to your Rockwell Automation account to view Knowledgebase Articles.
Sign In
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Cap Selection | Jumbo Mushroom Head |
|---|---|
| Product Type | 30mm Push-Pull Device |
| Suitable for illumination | True |
|---|---|
| Operator cap/button shape | Round |
| Illumination lamp type | Incandescent |
| Illumination module type | Transformer |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 2.5 A |
| Illumination module input voltage | 120V AC @ 50/60Hz |
| Contact block utilization category (AC) | C300, AC-15 |
| Contact block utilization category (DC) | R150, DC-13 |
| Contact block operational voltage, max | 300V AC @ 150V DC |
| Operator cap type | Jumbo mushroom head |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Contact block electrical design life (cycles, at max. load) | 1000000 None |
| Operator mechanical design life (cycles, min.) | 250000 None |
| Operator cap color | Red |
| Operator cap/button size | 60 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Illumination module termination wire range | 15 - 18 AWG (x2) |
| Operator function | 2-position |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push-pull unit |
| Operator special function | Maintained with twist release |
| Contact block configuration | 1-NO 1-NC PenTUFF contacts |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | False |
| Storage temperature | -40 °C |
| Operator construction/material | Plastic |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.7 |
| Lead Time | 15 |
| Dimension Width | 5.7 |
| Dimension Length | 11.6 |
| Stock Status | NON_STOCKED |
| Weight | 0.216 |
| Weight Unit | KG |
| Dimension Unit | CM |
Drawings
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
Documents
|
Specification
General
800-TD009 |
|
Push my Buttons Podcast
General
-- |
|
Repair Parts List
General
-- |
|
Selection Guide
General
800T-BR012 |
|
