800FM-MM43MX11

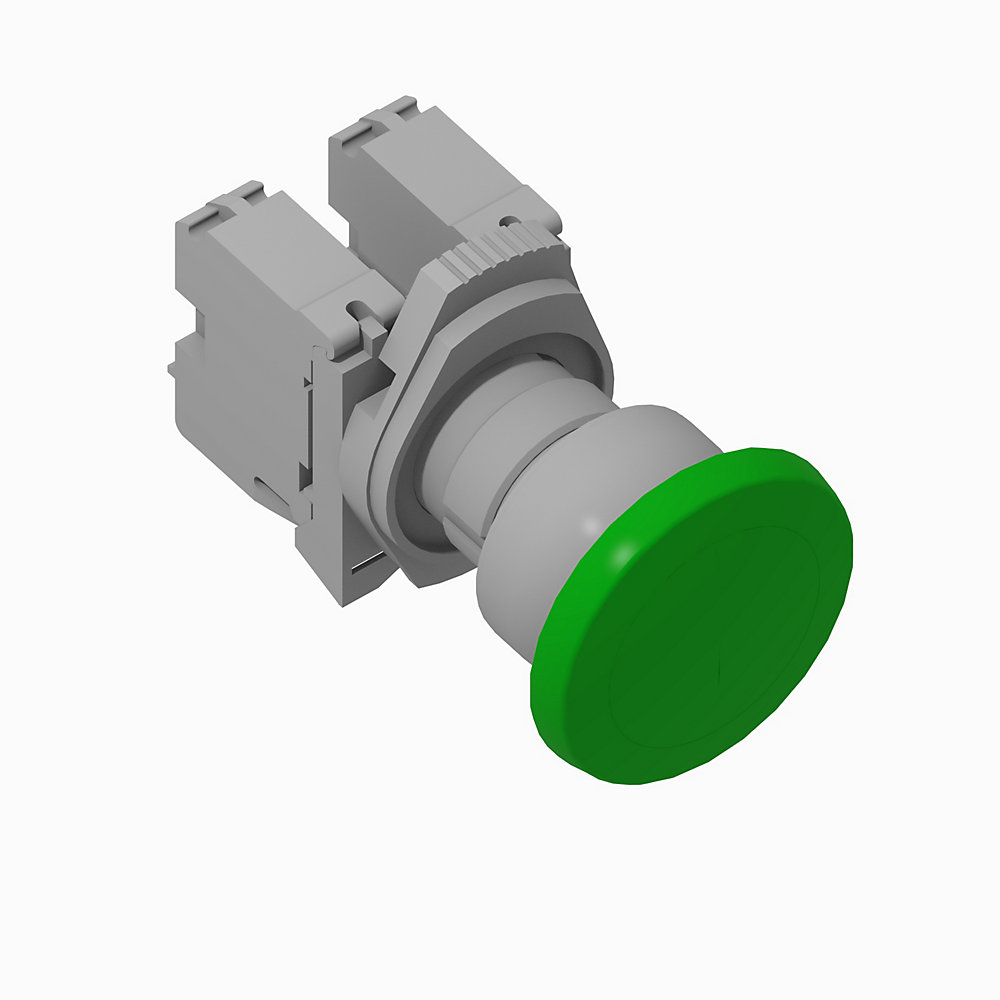

22mm Momentary Push Button 800F PB

Name: 22mm Momentary Push Button 800F PB
Brand: Rockwell Automation
SKU: 800FM-MM43MX11

Serial #:

Lifecycle status: Active

Description

800F Mushroom - Metal, 40mm, Momentary, Green, Metal Latch Mount, 1 N.O. Contact(s), 1 N.C. Contact(s), Standard Standard Pack (Qty. 1)

Unique Product Identifier	800FM-MM43MX11
UPC	612598843763
Estimated Lead Time	29 days
Standard Warranty Duration	1 year See details
Country of Origin	Switzerland
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Suitable for illumination	False
Illumination lamp type	No power module
Contact block type	Standard
Illumination module type	No power module
Contact block thermal current rating	10 A
Illumination module input voltage	No power module
Contact block utilization category (AC)	A600, AC 15 - screw termination
Contact block utilization category (DC)	Q600, DC-13 - screw termination
Contact block operational voltage, max	600V (A600, Q600) - screw termination
Operator cap type	Momentary mushroom, 40mm

Spring-return	True
Hole diameter	22.5 mm
Latch material	Metal
Operator mechanical design life (cycles, min.)	1.0E7
Contact block durability	1.0E7
Contact block mounting style	Latch
Operator function	22 mm momentary push button
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Enclosure compatibility	IP65, Type 4/13 (Round metal operator)
Contact block configuration	1 NO/1 NC
Shock	100 G
Vibration	10 G
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)
Switching function latching	False

Operating temperature	-25 °C
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Storage temperature	-40 °C

Operator construction/material	Metal
Termination style	Screw contact block
Operator cap color (lens)	Green

General	Publication
Product Cutsheet	--

Technical Data	Publication
800-td008_-en-p	800-TD008

User Manual	Publication
800-um001_-en-p	800-UM001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800FM-MM43MX11
UPC	612598843763
Estimated Lead Time	29 days
Standard Warranty Duration	1 year See details
Country of Origin	Switzerland
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Technical Specifications

Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Suitable for illumination	False
Illumination lamp type	No power module
Contact block type	Standard
Illumination module type	No power module
Contact block thermal current rating	10 A
Illumination module input voltage	No power module
Contact block utilization category (AC)	A600, AC 15 - screw termination
Contact block utilization category (DC)	Q600, DC-13 - screw termination
Contact block operational voltage, max	600V (A600, Q600) - screw termination
Operator cap type	Momentary mushroom, 40mm

Spring-return	True
Hole diameter	22.5 mm
Latch material	Metal
Operator mechanical design life (cycles, min.)	1.0E7
Contact block durability	1.0E7
Contact block mounting style	Latch
Operator function	22 mm momentary push button
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Enclosure compatibility	IP65, Type 4/13 (Round metal operator)
Contact block configuration	1 NO/1 NC
Shock	100 G
Vibration	10 G
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)
Switching function latching	False

Operating temperature	-25 °C
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Storage temperature	-40 °C

Operator construction/material	Metal
Termination style	Screw contact block
Operator cap color (lens)	Green
