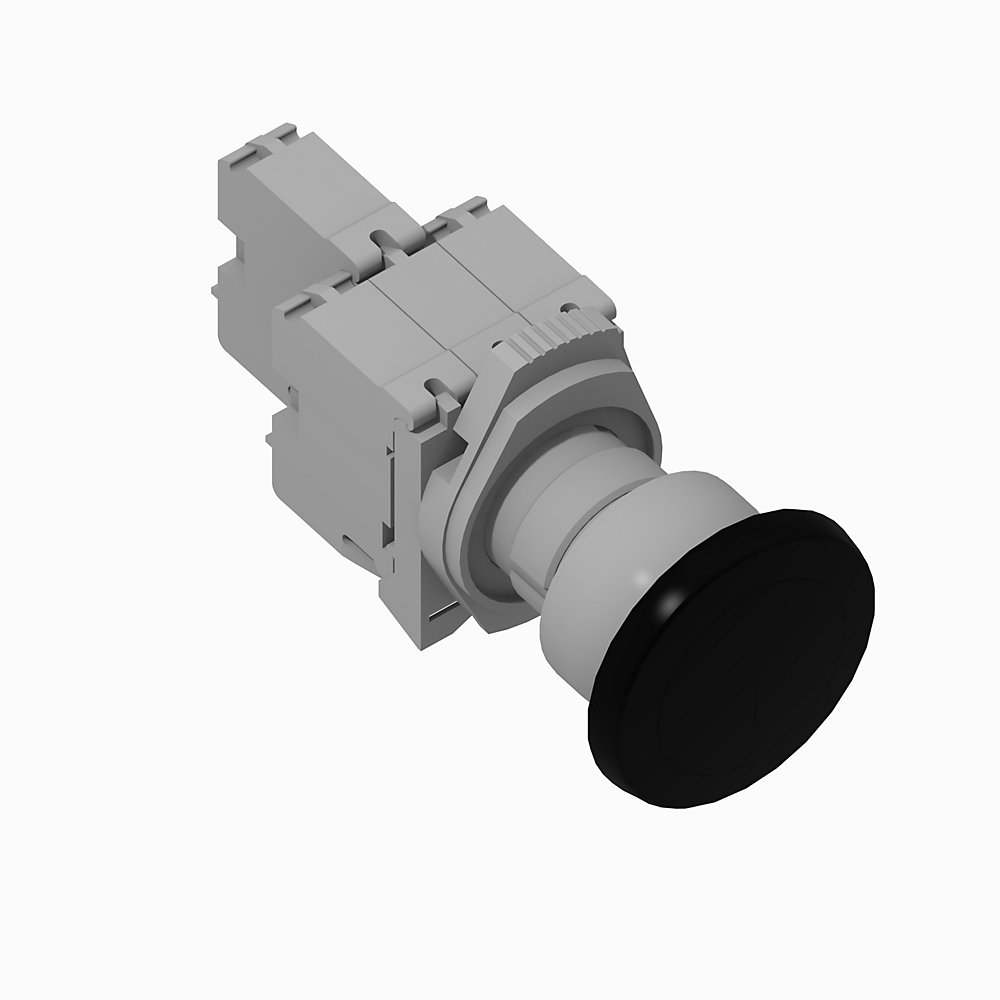

| Product Type | 22mm Momentary Push Button |
|---|
| Number of contacts as normally closed contact | 2 |
|---|---|
| Number of contacts as normally open contact | 2 |
| Suitable for illumination | No |
| Illumination lamp type | No power module |
| Contact block type | Standard |
| Illumination module type | No power module |
| Contact block thermal current rating | 10 A |
| Illumination module input voltage | No power module |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Operator cap type | Momentary mushroom, 40mm |
| Spring-return | Yes |
|---|---|
| Hole diameter | 22.5 |
| Latch material | Metal |
| Operator mechanical design life (cycles, min.) | 1.0E7 |
| Contact block durability | 1.0E7 |
| Contact block mounting style | Latch |
| Operator function | 22 mm momentary push button |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push button |
| Enclosure compatibility | IP65, Type 4/13 (Round metal operator) |
| Contact block configuration | 2 NO/2 NC |
| Shock | 100 G |
| Vibration | 10 G |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Switching function latching | No |
| Operating temperature | -25 |
|---|---|
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Storage temperature | -40 |
| Operator construction/material | Metal |
|---|---|
| Termination style | Screw contact block |
| Operator cap color (lens) | Black |
| Certifications | UL,UR, CSA, CCC, CE |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 16.002 |
| Lead Time | 7 |
| Dimension Width | 11.989 |
| Dimension Length | 3.988 |
| Stock Status | NON_STOCKED |
| Weight | 72.575 |
| Weight Unit | G |
| Dimension Unit | CM |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| Technical Data | 800-td008_-en-p | 800-TD008 |
| User Manual | 800-um001_-en-p | 800-UM001 |
