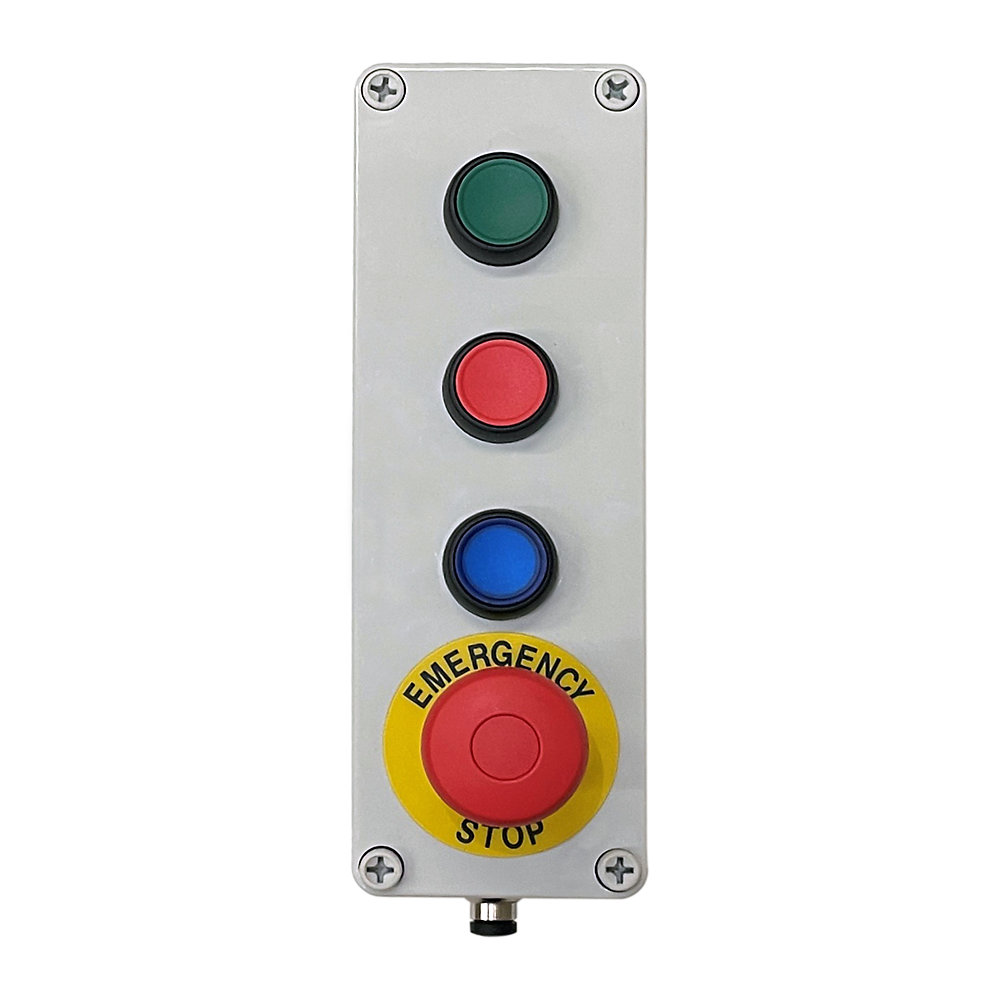

800F-VAJ3G2B

22mm DeviceNet Station 800F PB

Name: 22mm DeviceNet Station 800F PB
Brand: Rockwell Automation
SKU: 800F-VAJ3G2B

Serial #:

Lifecycle status: Active

Description

800F Assembled Stations with DeviceNet, Vertical, 2-hole/with legend frame, Pos 1:Pilot Light, Pos 1:Non-Ill 2-Pos Sel, 1 input/1 output (sourcing)

Lifecycle status: Active

Description

800F Assembled Stations with DeviceNet, Vertical, 2-hole/with legend frame, Pos 1:Pilot Light, Pos 1:Non-Ill 2-Pos Sel, 1 input/1 output (sourcing)

Unique Product Identifier	800F-VAJ3G2B
UPC	612598840984
Estimated Lead Time	97 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

Mechanical

Contact block electrical design life (cycles, at max. load)	1000000
Contact block termination tightening torque	0.7 to 0.9 Nm
Contact block termination wire range	Spring clA termination: #18...14 AWG (0.75...1.5 mm²) one per spring clA, two spring clA per terminal
Enclosure mounting	Vertical (Selector Switches in a vertical mount enclosure are mounted with a horizontal orientation)
Hazardous location rating	False
I/O version	No external input/output
Number of operators	2
Operator mechanical design life (cycles, min.)	1.0E7
Operator mounting hole dimension	22.5 mm
Shock	25 G (contact fragility)/100 G (no damage)
Station type	800F assembled stations with Devicenet
Termination style	Screw
Vibration	10 G maximum

Construction

Operator 1 color	Green
Operator 2 color	Black
Operator 3 color	None
Operator 4 color	None
Operator type 1	Pilot light
Operator type 2	Non-illuminated 2 position selector switch
Operator type 3	Non-illuminated extended button
Operator type 4	None

Contact block operational voltage, max	600V AC (A600, Q600) - screw termination
Contact block thermal current rating	10 A
Contact block utilization category (AC)	AC-15 (A600, Q600): screw termination, AC-15 (A300, Q300): spring clA termination
Contact block utilization category (DC)	DC 13 to IEC/EN 60947-5-1 and UL 508, 17V @ 5mA minimum

Humidity	≤95% RH from 25...60 °C (77...140 °F)
Operating temperature	-25 °C
Storage temperature	-40 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
800-td008_-en-p	800-TD008

User Manual	Publication
800-um001_-en-p	800-UM001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800F-VAJ3G2B
UPC	612598840984
Estimated Lead Time	97 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

Physical Characteristics

Mechanical

Contact block electrical design life (cycles, at max. load)	1000000
Contact block termination tightening torque	0.7 to 0.9 Nm
Contact block termination wire range	Spring clA termination: #18...14 AWG (0.75...1.5 mm²) one per spring clA, two spring clA per terminal
Enclosure mounting	Vertical (Selector Switches in a vertical mount enclosure are mounted with a horizontal orientation)
Hazardous location rating	False
I/O version	No external input/output
Number of operators	2
Operator mechanical design life (cycles, min.)	1.0E7
Operator mounting hole dimension	22.5 mm
Shock	25 G (contact fragility)/100 G (no damage)
Station type	800F assembled stations with Devicenet
Termination style	Screw
Vibration	10 G maximum

Construction

Operator 1 color	Green
Operator 2 color	Black
Operator 3 color	None
Operator 4 color	None
Operator type 1	Pilot light
Operator type 2	Non-illuminated 2 position selector switch
Operator type 3	Non-illuminated extended button
Operator type 4	None

Electrical & Connectivity

Contact block operational voltage, max	600V AC (A600, Q600) - screw termination
Contact block thermal current rating	10 A
Contact block utilization category (AC)	AC-15 (A600, Q600): screw termination, AC-15 (A300, Q300): spring clA termination
Contact block utilization category (DC)	DC 13 to IEC/EN 60947-5-1 and UL 508, 17V @ 5mA minimum

Compliance & Environment

Humidity	≤95% RH from 25...60 °C (77...140 °F)
Operating temperature	-25 °C
Storage temperature	-40 °C
