800F-Q7R

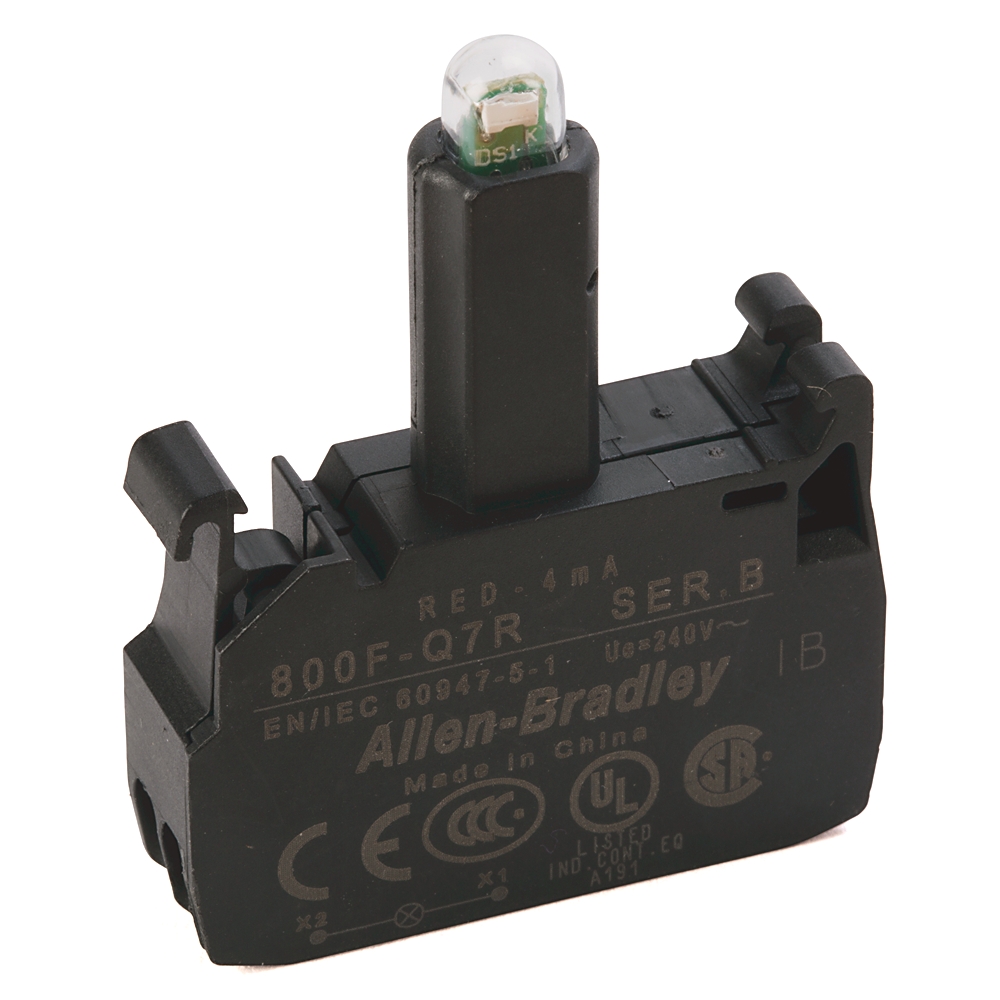

22mm LED Module 800F PB, Pack qty.10

Name: 22mm LED Module 800F PB, Pack qty.10
Brand: Rockwell Automation
SKU: 800F-Q7R

Serial #:

Lifecycle status: Active

Description

Integrated LED (Spring-Clamp), Latch Mount, 240V AC, Red LED, Standard Pack (Qty. 10)

Unique Product Identifier	800F-Q7R
UPC	662468120548
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	Singapore
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	22mm LED Module

Voltage type for actuating	AC
Lamp type	LED
Illumination lamp type	Red LED
Illumination module type	Spring clA LED
Illumination module input voltage	240V AC (LED)

Contact block mounting style	Latch

Operator type	22 mm LED module
Illumination module termination wire range	#18...14 AWG (0.75...1.5 mm²)
Vibration	10 g
Shock	100 g
Operator mounting hole dimension	22.5 mm
Latch material	Plastic / metal
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Operating temperature	-25 °C
Storage temperature	-40 °C
Humidity	≤95% RH from 25...60 °C (77...140 °F)

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Product Cutsheet	--
Push my Buttons Podcast	--

Technical Data	Publication
800-td008_-en-p	800-TD008

User Manual	Publication
800-um001_-en-p	800-UM001
