800F-20WG148

22mm Accessory 800F PB

Name: 22mm Accessory 800F PB
Brand: Rockwell Automation
SKU: 800F-20WG148

Serial #:

Lifecycle status: Active

Description

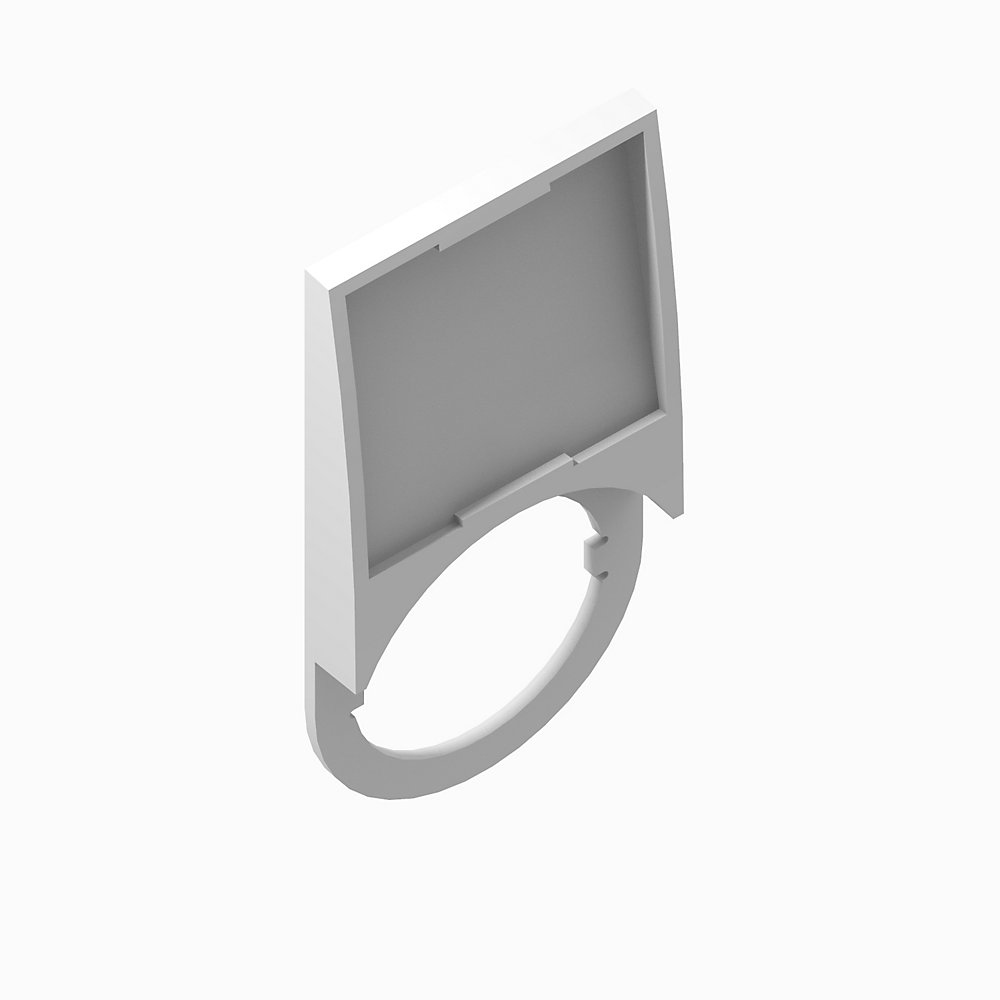

800F Legend Plate, 30 X 60mm Std., 2 Piece Snap-In (Plate and Frame), German: NIEDRIG, White with Black Legend Text,

Unique Product Identifier	800F-20WG148
UPC	781180251719
Estimated Lead Time	42 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Legend Text/Symbols	NIEDRIG
Type	22mm Accessory

Suitable for push button	True
Suitable for illuminated push buttons	True
Suitable for indicator light	True
Suitable for signalling lamp	True
Suitable for selector switch	True
Width	29.7 mm
Height	69.5 mm
Colour	White
Text font size	Standard text/symbols
Legend text/symbols	NIEDRIG
Snap-in legend plate and frame	30x60 mm plate and frame
Color	White with Black legend text
Engravable	True
Suitable for mushroom head push button	True
Construction type	Flat
Language or symbol	Blank or custom text

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Product Cutsheet	--
Push my Buttons Podcast	--

Technical Data	Publication
800-td008_-en-p	800-TD008

User Manual	Publication
800-um001_-en-p	800-UM001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

CE
UKCA DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800F-20WG148
UPC	781180251719
Estimated Lead Time	42 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Technical Specifications

Legend Text/Symbols	NIEDRIG
Type	22mm Accessory

Suitable for push button	True
Suitable for illuminated push buttons	True
Suitable for indicator light	True
Suitable for signalling lamp	True
Suitable for selector switch	True
Width	29.7 mm
Height	69.5 mm
Colour	White
Text font size	Standard text/symbols
Legend text/symbols	NIEDRIG
Snap-in legend plate and frame	30x60 mm plate and frame
Color	White with Black legend text
Engravable	True
Suitable for mushroom head push button	True
Construction type	Flat
Language or symbol	Blank or custom text
