700-hkm6a2

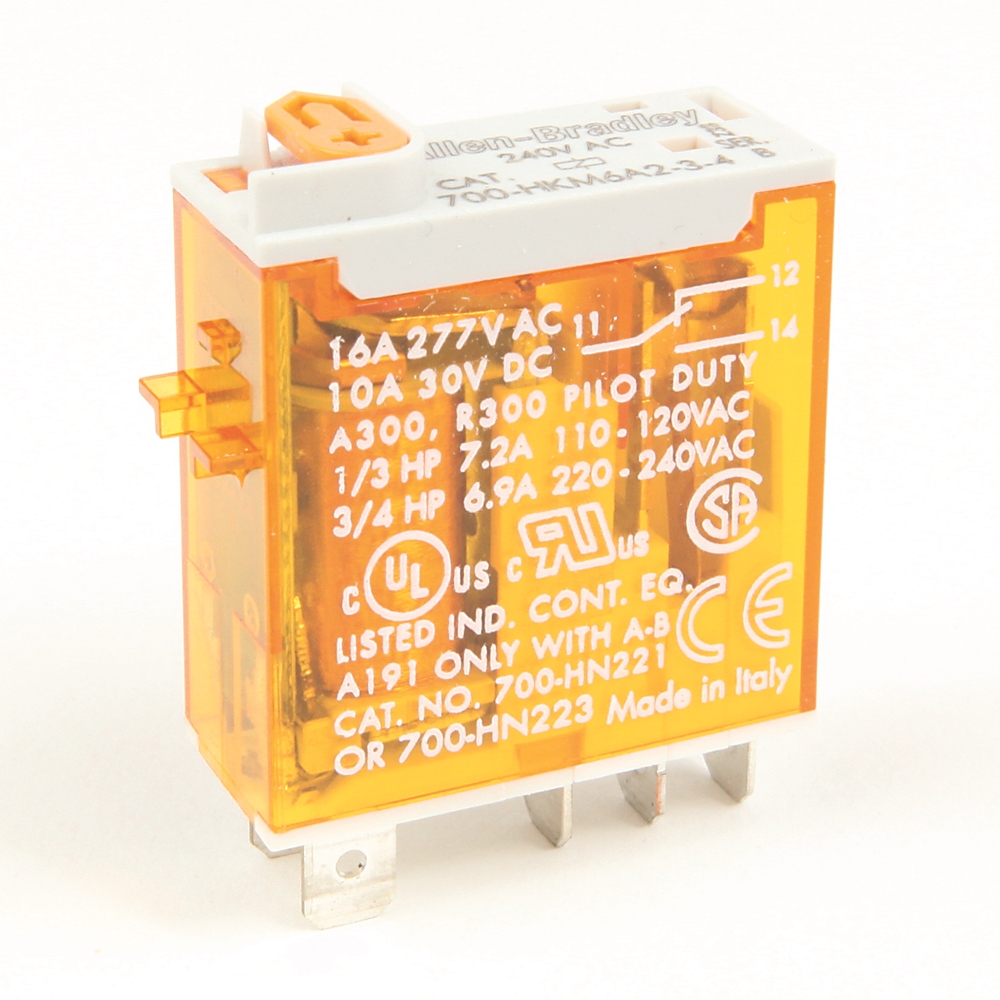

700HK Single Pole Double Throw OLR

Serial #:

Lifecycle status: Active

Number of contacts as change-over contact	1
Nominal current	16 A
Complete with socket	False
With LED indication	False
Voltage type for actuating	AC
Rated control supply voltage at AC 50 Hz	240 V
Rated control supply voltage at AC 60 Hz	240 V
Type of electric connection	Plug-in connection
Rated thermal current (Ith)	16 A
Electrical life cycle	B300, R300, Hp (kW): 6000 minimum

With detachable clamps	False
With forced-guided contacts	False
Degree of protection (IP)	IP20
Shock	Opsal: 15 G
Vibration	Opsal: 10...2000 Hz, 0.76 mm (0.03 in) 2.5 G
List of degrees of protection (IP)	IP20 with guarded terminal socket

Width	29 mm
Height	39.3 mm
Depth	12.4 mm
Contact material	Silver tin oxide (AgSnO2) - maximum duty contact
Material of contact surface	Other

Operating temperature	-40 °C
Storage temperature	-40 °C

General	Publication
Product Cutsheet	--
Short Circuit Ratings Data Sheet	--

Technical Data	Publication
700-td552_-en-p	700-TD552

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Technical Specifications

Number of contacts as change-over contact	1
Nominal current	16 A
Complete with socket	False
With LED indication	False
Voltage type for actuating	AC
Rated control supply voltage at AC 50 Hz	240 V
Rated control supply voltage at AC 60 Hz	240 V
Type of electric connection	Plug-in connection
Rated thermal current (Ith)	16 A
Electrical life cycle	B300, R300, Hp (kW): 6000 minimum

With detachable clamps	False
With forced-guided contacts	False
Degree of protection (IP)	IP20
Shock	Opsal: 15 G
Vibration	Opsal: 10...2000 Hz, 0.76 mm (0.03 in) 2.5 G
List of degrees of protection (IP)	IP20 with guarded terminal socket

Width	29 mm
Height	39.3 mm
Depth	12.4 mm
Contact material	Silver tin oxide (AgSnO2) - maximum duty contact
Material of contact surface	Other

Operating temperature	-40 °C
Storage temperature	-40 °C
