Preferred

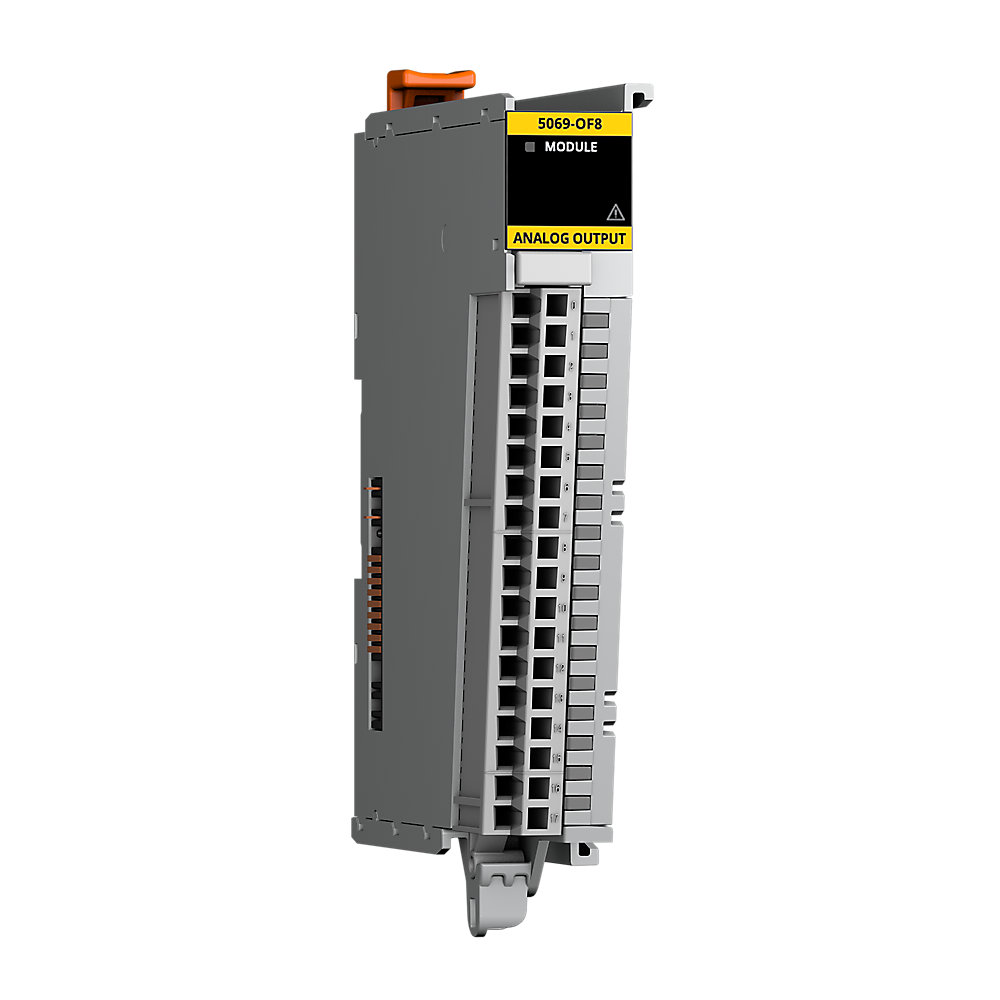

5069-OF8
Compact 5000 Analog Output Module
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Description
5069 Compact I/O 8 Channel Voltage/Current Analog Output Module
Preferred
5069-OF8
Compact 5000 Analog Output Module
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Description
5069 Compact I/O 8 Channel Voltage/Current Analog Output Module
Overview
Electrical & Connectivity
General Features
Power & Electrical Characteristics
Compliance & Environment
Standards & Protection
Physical Characteristics
Construction
Mechanical
Drawings
Documents
Downloads
Certifications
Accessories
Technotes
| Unique Product Identifier |
5069-OF8
|
|---|---|
| UPC |
885630530116
|
| Estimated Lead Time |
5 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
Malaysia
|
| Number Of Channels |
8 Channel
|
|---|---|
| Output Signal |
Analog
|
| Accuracy drift with temperature |
Voltage: 0.30% full scale, Current: 0.50% full scale
|
|---|---|
| Analog output ratings |
±10V DC @ 0...20mA per channel
|
| Analogue inputs configurable |
False
|
| Analogue outputs configurable |
True
|
| Calibrated accuracy |
Voltage: 0.10% full scale @ 25 °C Current: 0.10% full scale @ 25 °C
|
| Calibration methods |
Factory calibrated, User-performed (optional)
|
| Capacitive load, max |
1 µF (voltage mode only)
|
| Conversion time |
Per channel: 25 µs
|
| Data format |
IEEE 32-bit floating point
|
| Drive capability |
Voltage: 1000 Ω minimum, Current: 500 Ω maximum
|
| Indicators |
1 green/red module status indicator, 8 yellow/red I/O status indicators
|
| Inductive load, max |
1 mH (current mode only)
|
| Input, current |
False
|
| Input, resistance thermometer |
False
|
| Input, resistor |
False
|
| Input, thermocouple |
False
|
| Input, voltage |
False
|
| Insulation stripping length |
5069-RTB18-SPRING connections: 10 mm (0.39 in.), 5069-RTB18-SCREW connections: 12 mm (0.47 in.)
|
| Isolation voltage |
250V (continuous), basic insulation type, 50V Functional isolation between SA power and input ports, No isolation between individual input ports
|
| MOD power |
75mA @ 18...32V DC
|
| MOD power passthrough, max |
9.55A @ 18...32V DC
|
| Module conversion method |
R-Ladder DAC, monotonicity with no missing codes
|
| Module keying |
Electronic keying via progming software
|
| Number of analogue outputs |
8
|
| Open circuit detection |
Current mode only
|
| Output range, current |
0...20mA @ 4...20mA
|
| Output range, voltage |
±10V @ 0...10V, 0...5V
|
| Output, current |
True
|
| Output, voltage |
True
|
| Outputs |
8 voltage or current
|
| Overvoltage protection, max |
±32V DC
|
| Power dissipation, max |
5.3 W
|
| RTB torque |
5069-RTB18-SCREW RTB only: 0.4 Nm (3.5 lbin)
|
| Repeatability |
0.05 %
|
| Resolution |
16 bit across ±10.5V - 320 µV/bit, 16 bit across 10.5V - 160 µV/bit, 16 bit across 5.25V - 80 µV/bit, 16 bit across 21 mA - 320 nA/bit
|
| SA power |
250mA @ 18...32V DC
|
| SA power passthrough, max |
9.95A @ 18...32V DC
|
| Scan time |
Per group 0...3: 1 ms, Per group 0...7: 2 ms
|
| Short circuit detection |
Voltage mode only - output electronically limited to 16 mA or less
|
| Step response time to 63% of value |
Voltage mode: 18 µs max, Current mode: 1 ms max
|
| Suitable for safety functions |
False
|
| Thermal dissipation, max |
18.1 BTU/hr
|
| Type of electric connection |
Screw-/spring clA connection
|
| Wire category |
2 - shielded input ports, 2 - power ports, 1 wire per terminal for each signal port
|
| Wire size |
5069-RTB18-SPRING removable terminal block: 0.5...1.5 mm² (22...16 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.), max diam including insulation, 5069-RTB18-SCREW removable terminal block: 0.5...1.5 mm² (22.
|
| Conducted RF immunity |
10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
|
|---|---|
| EFT/B immunity |
±4kV @ 5kHz on power ports, ±3kV @ 5kHz on shielded output ports
|
| ESD immunity |
6 kV contact discharges, 8 kV air discharges
|
| Emissions |
IEC 61000-6-4
|
| Nonoperating temperature |
-40 °C
|
| North American temperature code |
T4
|
| Operating temperature |
0 °C
|
| Radiated RF immunity |
10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
|
| Relative humidity |
5...95% noncondensing
|
| Surge transient immunity |
±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports, ±2 kV line-earth (CM) on shielded output ports
|
| Surrounding air temperature, max |
60 °C
|
| Voltage variation |
10 ms interruption on MOD power port
|
Construction
| Depth |
105.42 mm
|
|---|---|
| Enclosure type |
None (open-style)
|
| Height |
144.57 mm
|
| Width |
22 mm
|
Mechanical
| DIN rail |
Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in)
|
|---|---|
| RTB keying |
None
|
| Shock |
Operating: 30 G, Non operating: 50 G
|
| Slot width |
1
|
| Vibration |
5 G @ 10...500 Hz
|
| Weight |
175 g
|
| Drawings | |
|---|---|
| 2-Dimensional Drawing (PDF) | Download (PDF) |
| 3-Dimensional STEP model (STP) | Download (ZIP) |
| Dimensional Drawing in 3D (PDF) | Download (PDF) |
| 2-Dimensional Drawing (DWG/DXF) | Download (ZIP) |
| Drawings |
|---|
| 2-Dimensional Drawing (PDF) Download (PDF) |
| 3-Dimensional STEP model (STP) Download (ZIP) |
| Dimensional Drawing in 3D (PDF) Download (PDF) |
| 2-Dimensional Drawing (DWG/DXF) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| General | Publication |
|---|---|
| User Manual | 5000-UM005 |
| Product Cutsheet | -- |
| Technical Data | Publication |
|---|---|
| 5069-td001_-en-p | 5069-TD001 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Visit the Technical Documentation Center
Search the Literature Library
Available Downloads
- EDS files for CompactLogix Family (multi)
- EDS files for 5069-OF8 (multi)
- Firmware for 5069-OF8 v2.013
- AOP - Add On Profiles for Analog Modules v40.10
This product was certified with the above certifications as of 2026-08-27. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.
Regulatory Information
| EU Importer Address |
Rockwell Automation N.V |
|---|---|
| EU Authorized Representative Address |
Rockwell Automation N.V |
Items Per Page:
| Technotes |
|---|
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Overview
| Unique Product Identifier |
5069-OF8
|
|---|---|
| UPC |
885630530116
|
| Estimated Lead Time |
5 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
Malaysia
|
Electrical & Connectivity
| Number Of Channels |
8 Channel
|
|---|---|
| Output Signal |
Analog
|
| Accuracy drift with temperature |
Voltage: 0.30% full scale, Current: 0.50% full scale
|
|---|---|
| Analog output ratings |
±10V DC @ 0...20mA per channel
|
| Analogue inputs configurable |
False
|
| Analogue outputs configurable |
True
|
| Calibrated accuracy |
Voltage: 0.10% full scale @ 25 °C Current: 0.10% full scale @ 25 °C
|
| Calibration methods |
Factory calibrated, User-performed (optional)
|
| Capacitive load, max |
1 µF (voltage mode only)
|
| Conversion time |
Per channel: 25 µs
|
| Data format |
IEEE 32-bit floating point
|
| Drive capability |
Voltage: 1000 Ω minimum, Current: 500 Ω maximum
|
| Indicators |
1 green/red module status indicator, 8 yellow/red I/O status indicators
|
| Inductive load, max |
1 mH (current mode only)
|
| Input, current |
False
|
| Input, resistance thermometer |
False
|
| Input, resistor |
False
|
| Input, thermocouple |
False
|
| Input, voltage |
False
|
| Insulation stripping length |
5069-RTB18-SPRING connections: 10 mm (0.39 in.), 5069-RTB18-SCREW connections: 12 mm (0.47 in.)
|
| Isolation voltage |
250V (continuous), basic insulation type, 50V Functional isolation between SA power and input ports, No isolation between individual input ports
|
| MOD power |
75mA @ 18...32V DC
|
| MOD power passthrough, max |
9.55A @ 18...32V DC
|
| Module conversion method |
R-Ladder DAC, monotonicity with no missing codes
|
| Module keying |
Electronic keying via progming software
|
| Number of analogue outputs |
8
|
| Open circuit detection |
Current mode only
|
| Output range, current |
0...20mA @ 4...20mA
|
| Output range, voltage |
±10V @ 0...10V, 0...5V
|
| Output, current |
True
|
| Output, voltage |
True
|
| Outputs |
8 voltage or current
|
| Overvoltage protection, max |
±32V DC
|
| Power dissipation, max |
5.3 W
|
| RTB torque |
5069-RTB18-SCREW RTB only: 0.4 Nm (3.5 lbin)
|
| Repeatability |
0.05 %
|
| Resolution |
16 bit across ±10.5V - 320 µV/bit, 16 bit across 10.5V - 160 µV/bit, 16 bit across 5.25V - 80 µV/bit, 16 bit across 21 mA - 320 nA/bit
|
| SA power |
250mA @ 18...32V DC
|
| SA power passthrough, max |
9.95A @ 18...32V DC
|
| Scan time |
Per group 0...3: 1 ms, Per group 0...7: 2 ms
|
| Short circuit detection |
Voltage mode only - output electronically limited to 16 mA or less
|
| Step response time to 63% of value |
Voltage mode: 18 µs max, Current mode: 1 ms max
|
| Suitable for safety functions |
False
|
| Thermal dissipation, max |
18.1 BTU/hr
|
| Type of electric connection |
Screw-/spring clA connection
|
| Wire category |
2 - shielded input ports, 2 - power ports, 1 wire per terminal for each signal port
|
| Wire size |
5069-RTB18-SPRING removable terminal block: 0.5...1.5 mm² (22...16 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.), max diam including insulation, 5069-RTB18-SCREW removable terminal block: 0.5...1.5 mm² (22.
|
Compliance & Environment
| Conducted RF immunity |
10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
|
|---|---|
| EFT/B immunity |
±4kV @ 5kHz on power ports, ±3kV @ 5kHz on shielded output ports
|
| ESD immunity |
6 kV contact discharges, 8 kV air discharges
|
| Emissions |
IEC 61000-6-4
|
| Nonoperating temperature |
-40 °C
|
| North American temperature code |
T4
|
| Operating temperature |
0 °C
|
| Radiated RF immunity |
10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
|
| Relative humidity |
5...95% noncondensing
|
| Surge transient immunity |
±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports, ±2 kV line-earth (CM) on shielded output ports
|
| Surrounding air temperature, max |
60 °C
|
| Voltage variation |
10 ms interruption on MOD power port
|
Physical Characteristics
Construction
| Depth |
105.42 mm
|
|---|---|
| Enclosure type |
None (open-style)
|
| Height |
144.57 mm
|
| Width |
22 mm
|
Mechanical
| DIN rail |
Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in)
|
|---|---|
| RTB keying |
None
|
| Shock |
Operating: 30 G, Non operating: 50 G
|
| Slot width |
1
|
| Vibration |
5 G @ 10...500 Hz
|
| Weight |
175 g
|
