Preferred

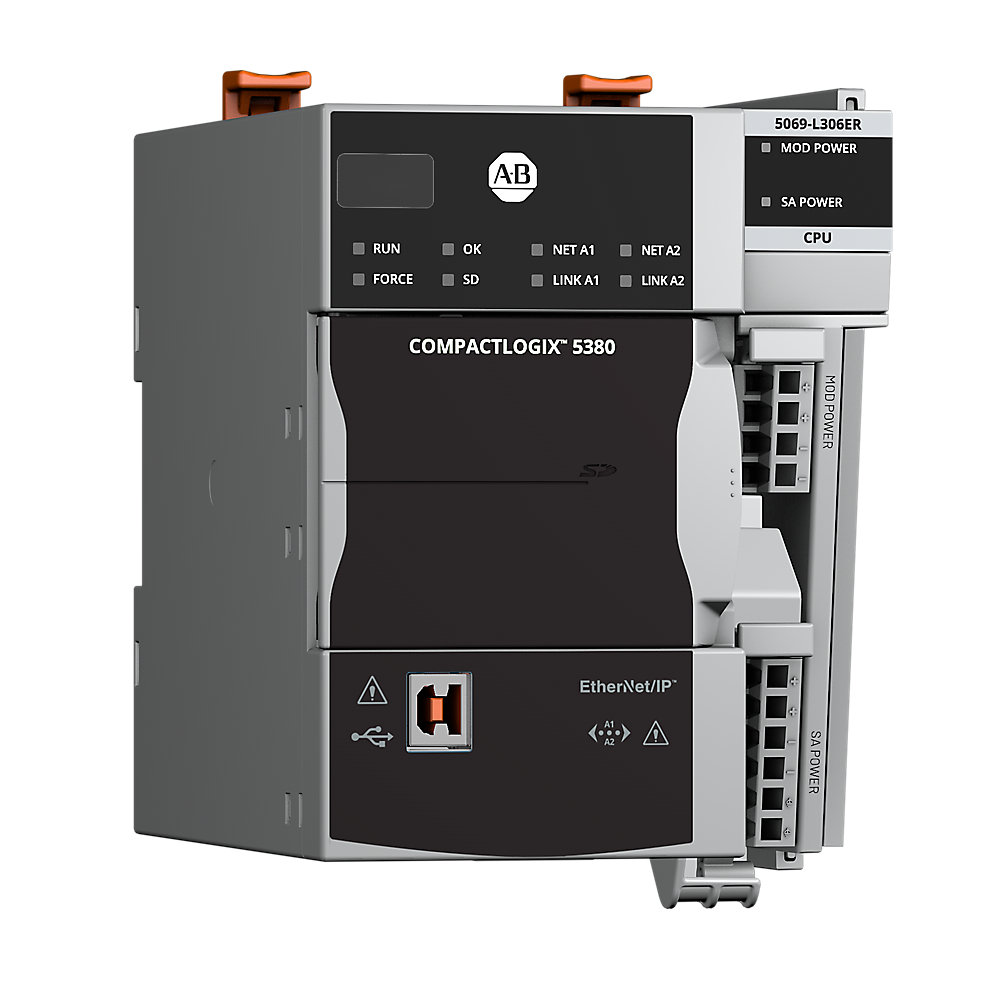

5069-L306ER
CompactLogix 600KB Enet Controller
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Product at a glance
Description
Controller, CompactLogix 5380, 600 KB User Memory, 8 I/Os, 16 EtherNet/IP Devices
Preferred
5069-L306ER
CompactLogix 600KB Enet Controller
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Product at a glance
Description
Controller, CompactLogix 5380, 600 KB User Memory, 8 I/Os, 16 EtherNet/IP Devices
Product Details
Look for SER on the product label to find your product series. To find information specific to your product, scan the QR code on the product label.
Overview
Electrical & Connectivity
General Features
Technical Specifications
Component-level Specifications
Sustainability
Substance Disclosures
Drawings
Documents
Downloads
Certifications
Accessories
Technotes
| Unique Product Identifier |
5069-L306ER
|
|---|---|
| UPC |
889508071268
|
| Estimated Lead Time |
31 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
Multiple
|
| Communication |
EtherNet/IP, USB
|
|---|---|
| Communication |
EtherNet/IP, USB
|
| Depth |
136.81mm, 5.39"
|
| Display |
Digit LED display & statusLEDs
|
| Enclosure |
None (open-style)
|
| Height |
123mm, 4.84"
|
| Interface |
2 x 1 Gb EtherNet port
|
| Isolation |
300V(cont)
|
| Memory |
600KB
|
| Mounting |
DIN Rail
|
| Number Of Channels |
0
|
| Operating Temperature |
0…60 °C (32…140 °F)
|
| Power Supply |
MOD Power 18…32V DC SA Power
|
| Processor |
Quad Core
|
| Special Features |
Embedded power transfer
|
| Sub Brand |
CompactLogix
|
| Type |
Controller
|
| Width |
98.1mm, 3.86"
|
Other
| Device does not consume power |
No
|
|---|---|
| Pwr diss at full load 100% (W) |
8.5
|
| Pwr diss modes not applicable |
No
|
| Review of pwr diss data |
NOT REVIEWED
|
Component Regulatory Information
| EU Importer Address |
Rockwell Automation N.V |
|---|---|
| EU Authorized Representative Address |
Rockwell Automation N.V |
| Environmental Compliance | |
|---|---|
| SVHC Information | |
| Environmental Compliance | |
| SVHC Information |
| Drawings | |
|---|---|
| 3-Dimensional STEP model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| 3-Dimensional STEP model (STP) Download (ZIP) |
| Product Drawing Drawing (DXF) |
| Product Drawing Drawing (DWG) |
Click the Download CAD button below to view all file formats available for download.
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| General | Publication |
|---|---|
| Selection Guide | 1769-SG001 |
| Product Cutsheet | -- |
| Technical Data | Publication |
|---|---|
| 5069-td001_-en-p | 5069-TD001 |
| 5069-td002_-en-p | 5069-TD002 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Visit the Technical Documentation Center
Search the Literature Library
Version:
Release notes
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
Looking for more Downloads?
Find product downloads in Rockwell Automation Product Compatibility and Download Center.
Search PCDC
This product was certified with the above certifications as of 2026-08-27. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.
Regulatory Information
| EU Importer Address |
Rockwell Automation N.V |
|---|---|
| EU Authorized Representative Address |
Rockwell Automation N.V |
Component Regulatory Information
| EU Importer Address |
Rockwell Automation N.V |
|---|---|
| EU Authorized Representative Address |
Rockwell Automation N.V |
Items Per Page:
| Technotes |
|---|
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Overview
| Unique Product Identifier |
5069-L306ER
|
|---|---|
| UPC |
889508071268
|
| Estimated Lead Time |
31 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
Multiple
|
Electrical & Connectivity
| Communication |
EtherNet/IP, USB
|
|---|---|
| Communication |
EtherNet/IP, USB
|
| Depth |
136.81mm, 5.39"
|
| Display |
Digit LED display & statusLEDs
|
| Enclosure |
None (open-style)
|
| Height |
123mm, 4.84"
|
| Interface |
2 x 1 Gb EtherNet port
|
| Isolation |
300V(cont)
|
| Memory |
600KB
|
| Mounting |
DIN Rail
|
| Number Of Channels |
0
|
| Operating Temperature |
0…60 °C (32…140 °F)
|
| Power Supply |
MOD Power 18…32V DC SA Power
|
| Processor |
Quad Core
|
| Special Features |
Embedded power transfer
|
| Sub Brand |
CompactLogix
|
| Type |
Controller
|
| Width |
98.1mm, 3.86"
|
Technical Specifications
Other
| Device does not consume power |
No
|
|---|---|
| Pwr diss at full load 100% (W) |
8.5
|
| Pwr diss modes not applicable |
No
|
| Review of pwr diss data |
NOT REVIEWED
|
Component Regulatory Information
| EU Importer Address |
Rockwell Automation N.V |
|---|---|
| EU Authorized Representative Address |
Rockwell Automation N.V |
Sustainability
| Environmental Compliance | |
|---|---|
| SVHC Information | |
| Environmental Compliance | |
| SVHC Information |
Drawings
| Drawings | |
|---|---|
| 3-Dimensional STEP model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| 3-Dimensional STEP model (STP) Download (ZIP) |
| Product Drawing Drawing (DXF) |
| Product Drawing Drawing (DWG) |
Click the Download CAD button below to view all file formats available for download.
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
Documents
|
Selection Guide
General
1769-SG001 |
|
Product Cutsheet
General
-- |
|
5069-td001_-en-p
Technical Data
5069-TD001 |
|
5069-td002_-en-p
Technical Data
5069-TD002 |
| General | Publication |
|---|---|
| Selection Guide | 1769-SG001 |
| Product Cutsheet | -- |
| Technical Data | Publication |
| 5069-td001_-en-p | 5069-TD001 |
| 5069-td002_-en-p | 5069-TD002 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Visit the Technical Documentation Center
Search the Literature Library
Downloads
Version:
Release notes
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
CVE-2019-12260/12265/12257/12258/12256/12255/12263/12262/12264/12261/12259
Product Security Advisory
-
Looking for more Downloads?
Find product downloads in Rockwell Automation Product Compatibility and Download Center.
Search PCDC
Certifications
This product was certified with the above certifications as of 2026-08-27. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.
Regulatory Information
| EU Importer Address |
Rockwell Automation N.V |
|---|---|
| EU Authorized Representative Address |
Rockwell Automation N.V |
Component Regulatory Information
| EU Importer Address |
Rockwell Automation N.V |
|---|---|
| EU Authorized Representative Address |
Rockwell Automation N.V |
Accessories
Items Per Page:
Technotes
| Technotes |
|---|
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Multiple countries of origin based on manufacturing location
