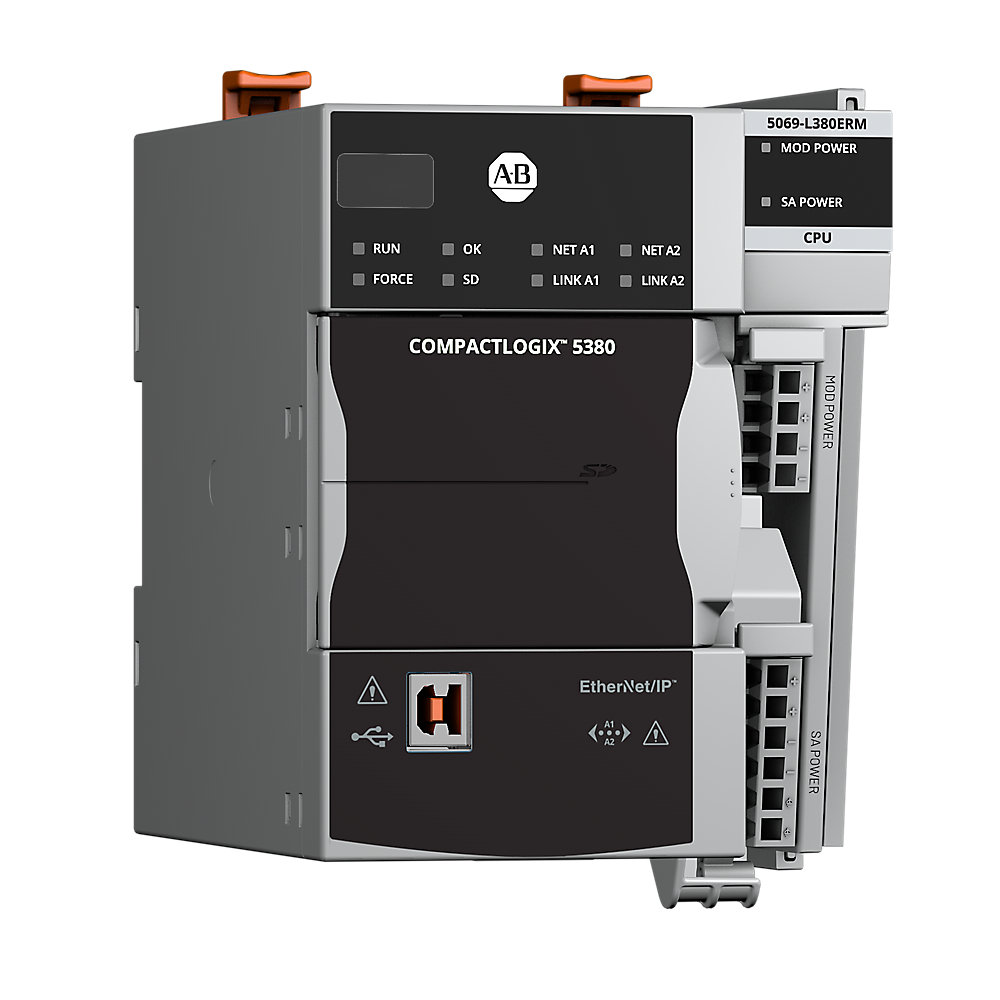

5069-L380ERM

CompactLogix 8MB Enet Motion Controller

Name: CompactLogix 8MB Enet Motion Controller
Brand: Rockwell Automation
SKU: 5069-L380ERM

Serial #:

Lifecycle status: Active

Product at a glance

Repair Options Available

Product Registration

Lifecycle status: Active

Product at a glance

Repair Options Available

Product Registration

Description

Controller, CompactLogix 5380, 8 MB User Memory, 31 I/Os, 28 axis, 150 EtherNet/IP Devices

Product Details

Unique Product Identifier	5069-L380ERM
UPC	889508404479
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	Singapore
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Communication	EtherNet/IP, USB
Depth	136.81mm, 5.39"
Height	123mm, 4.84"
Interface	2 x 1 Gb EtherNet port
Isolation	300V(cont)
Memory	8MB
Number Of Channels	0
Power Supply	MOD Power 18…32V DC SA Power
Processor	Quad Core

Environmental Compliance	See Details \| Submit Inquiry
SVHC Information	View Guidance
Environmental Compliance	See Details \| Submit Inquiry
SVHC Information	View Guidance

Drawings
3-Dimensional STEP model (STP)	Download (ZIP)
Product Drawing	Drawing (DWG)
Product Drawing	Drawing (DXF)

Drawings
3-Dimensional STEP model (STP) Download (ZIP)
Product Drawing Drawing (DWG)
Product Drawing Drawing (DXF)

General	Publication
Selection Guide	1769-SG001
Product Cutsheet	--

Technical Data	Publication
5069-td002_-en-p	5069-TD002

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Visit the Technical Documentation Center Search the Literature Library

Available Downloads

Firmware for Compact Logix 5380 (5069-L3) v38.011

See All Downloads

China CCC
Australian RCM
ATEX
IECEx Scheme
Registro Italiano Navale
UK EX CERTIFICATE
Eurasion Economic Community
Security

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
