Best Selling

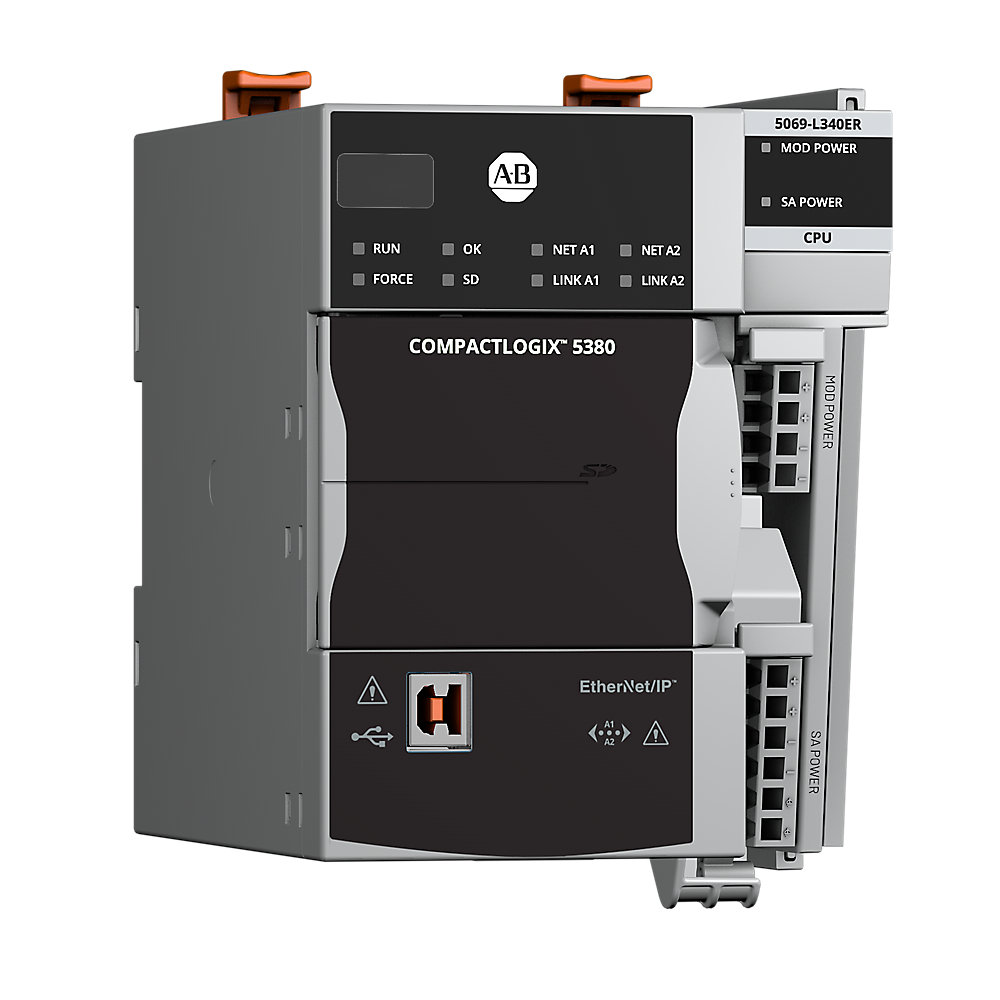

CompactLogix 4MB Enet Controller

Catalog #: 5069-L340ER

Lifecycle status: Active

Communication	EtherNet/IP, USB
Depth	136.81mm, 5.39"
Height	123mm, 4.84"
Interface	2 x 1 Gb EtherNet port
Isolation	300V(cont);No isolation between ENET ports
Memory	4MB
Number Of Channels	0 None
Power Supply	MOD Power 18…32V DC SA Power 0…32V DC 0…240V AC, 47…63 Hz ATEX/IECEX, 125V AC max
Processor	Quad Core

Sales Info

Repairable	REPAIRABLE
Preferred Availability	true
Quick Turnaround	false
Dimension Height	20.32
Lead Time	5
Dimension Width	16.256
Dimension Length	19.05
Stock Status	STOCKED
Weight	0.975
Weight Unit	KG
Dimension Unit	CM

Available Downloads

Firmware Compact Logix 5380 (5069-L3) v35.013

See All Downloads

Drawings
3-Dimensional STEP model (STP)	Download (ZIP)
Product Drawing	Drawing (DWG)
Product Drawing	Drawing (DXF)

Drawings
3-Dimensional STEP model (STP) Download (ZIP)
Product Drawing Drawing (DWG)
Product Drawing Drawing (DXF)

Type	Resource	Publication
General	Product Cutsheet	--
General	Selection Guide	1769-SG001
Technical Data	5069-td001_-en-p	5069-TD001
Technical Data	5069-td002_-en-p	5069-TD002

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Visit the Technical Documentation Center Search the Literature Library

China CCC
Australian RCM
IECEx Scheme
ATEX

This product was certified with the above certifications as of 2024-12-13. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
