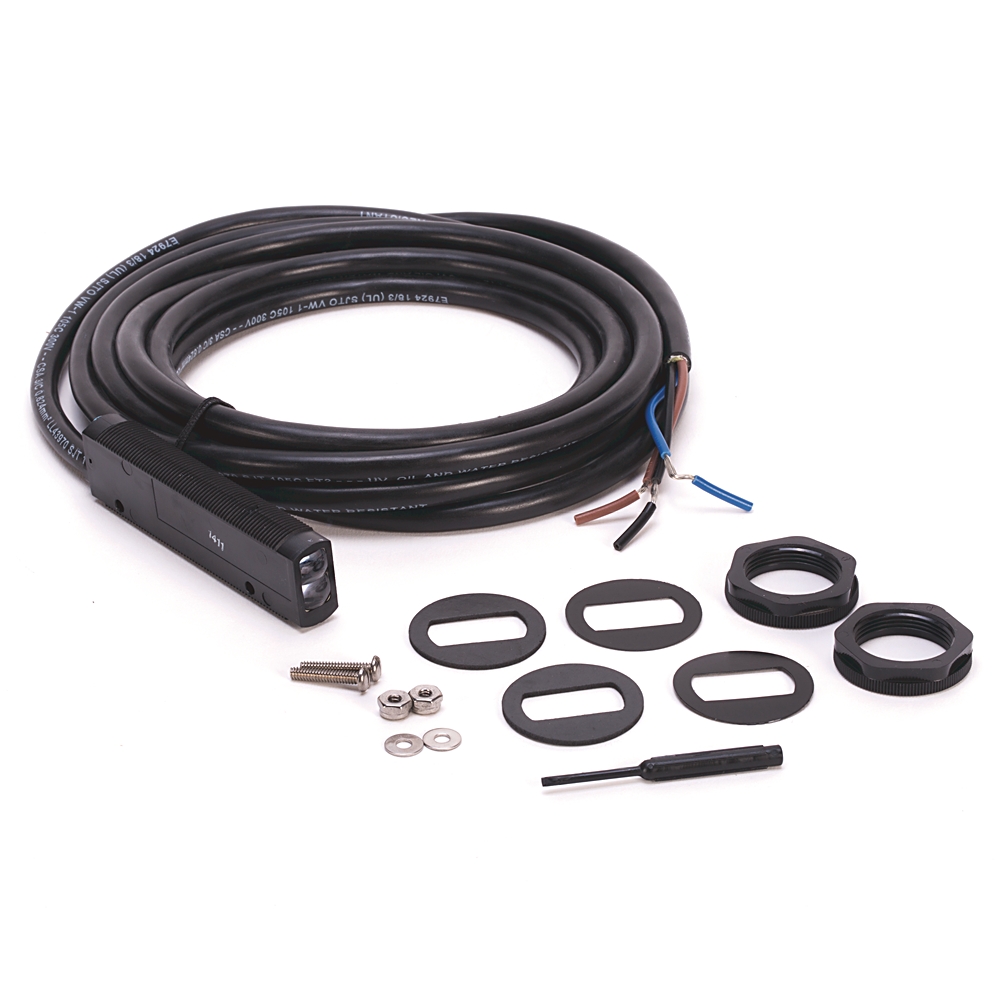

42SRR-6006
Compact Photo Sensor
Rockwell Automation announces that as of February 28, 2023, the Compact Photo Sensor will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
February 28, 2023
Replacement Category:
Engineering Replacement
Rockwell Automation announces that as of February 28, 2023, the Compact Photo Sensor will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
February 28, 2023
Replacement Category:
Engineering Replacement
| Degree of protection (NEMA) |
4X
|
|---|---|
| Degree of protection (IP) |
IP67
|
| Width sensor |
12.7 mm
|
| Height of sensor |
25.4 mm
|
| Length of sensor |
91.4 mm
|
| Sensing mode |
Light switching
|
| List of degrees of protection (NEMA) |
NEMA 3, 4X, 6, 12 & 13
|
| Sensing mode type |
Transmitted beam receiver
|
| Vibration |
10...55 Hz, 1 mm Alitude, meets or exceeds IEC 60947-5-2
|
| Shock |
30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2
|
| Suitable for safety functions |
False
|
| Response time |
1 ms
|
|---|---|
| Voltage type |
AC
|
| Material housing |
Plastic
|
| Type of switching output |
Other
|
| Setting procedure |
Manual adjustment
|
| Type of electric connection |
Cable
|
| Current consumption, max |
35 mA
|
| Lens material |
Acrylic
|
| Supply voltage |
20...132V AC/DC, 20...264V AC/DC
|
| Light source |
Infrared 880nm or visible red 650nm
|
| Operating voltage/mode |
220V AC, light operate
|
| Output type |
Both NPN and PNP (DC), MOSFET (AC/DC)
|
| Connection type |
3 m, 300V cable
|
| With time function |
False
|
| Pre failure notice |
False
|
| Category |
Standard ON/OFF
|
| Unit protection |
Reverse polarity, false pulse
|
| LED indicators |
Red: when ON (or illuminated) the sensor output is activated, when dark it is OFF
|
| Material of optical surface |
Plastic
|
|---|---|
| Housing material |
Noryl®
|
| Relative humidity, max |
95 %
|
|---|---|
| Operating temperature |
-40 °C
|
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Degree of protection (NEMA) |
4X
|
|---|---|
| Degree of protection (IP) |
IP67
|
| Width sensor |
12.7 mm
|
| Height of sensor |
25.4 mm
|
| Length of sensor |
91.4 mm
|
| Sensing mode |
Light switching
|
| List of degrees of protection (NEMA) |
NEMA 3, 4X, 6, 12 & 13
|
| Sensing mode type |
Transmitted beam receiver
|
| Vibration |
10...55 Hz, 1 mm Alitude, meets or exceeds IEC 60947-5-2
|
| Shock |
30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2
|
| Suitable for safety functions |
False
|
| Response time |
1 ms
|
|---|---|
| Voltage type |
AC
|
| Material housing |
Plastic
|
| Type of switching output |
Other
|
| Setting procedure |
Manual adjustment
|
| Type of electric connection |
Cable
|
| Current consumption, max |
35 mA
|
| Lens material |
Acrylic
|
| Supply voltage |
20...132V AC/DC, 20...264V AC/DC
|
| Light source |
Infrared 880nm or visible red 650nm
|
| Operating voltage/mode |
220V AC, light operate
|
| Output type |
Both NPN and PNP (DC), MOSFET (AC/DC)
|
| Connection type |
3 m, 300V cable
|
| With time function |
False
|
| Pre failure notice |
False
|
| Category |
Standard ON/OFF
|
| Unit protection |
Reverse polarity, false pulse
|
| LED indicators |
Red: when ON (or illuminated) the sensor output is activated, when dark it is OFF
|
| Material of optical surface |
Plastic
|
|---|---|
| Housing material |
Noryl®
|
| Relative humidity, max |
95 %
|
|---|---|
| Operating temperature |
-40 °C
|
