RightSight Photosensor

Name: RightSight Photosensor
Brand: Rockwell Automation
SKU: 42ef-p2mpb-a2

Serial #:

Lifecycle status: Active

Description

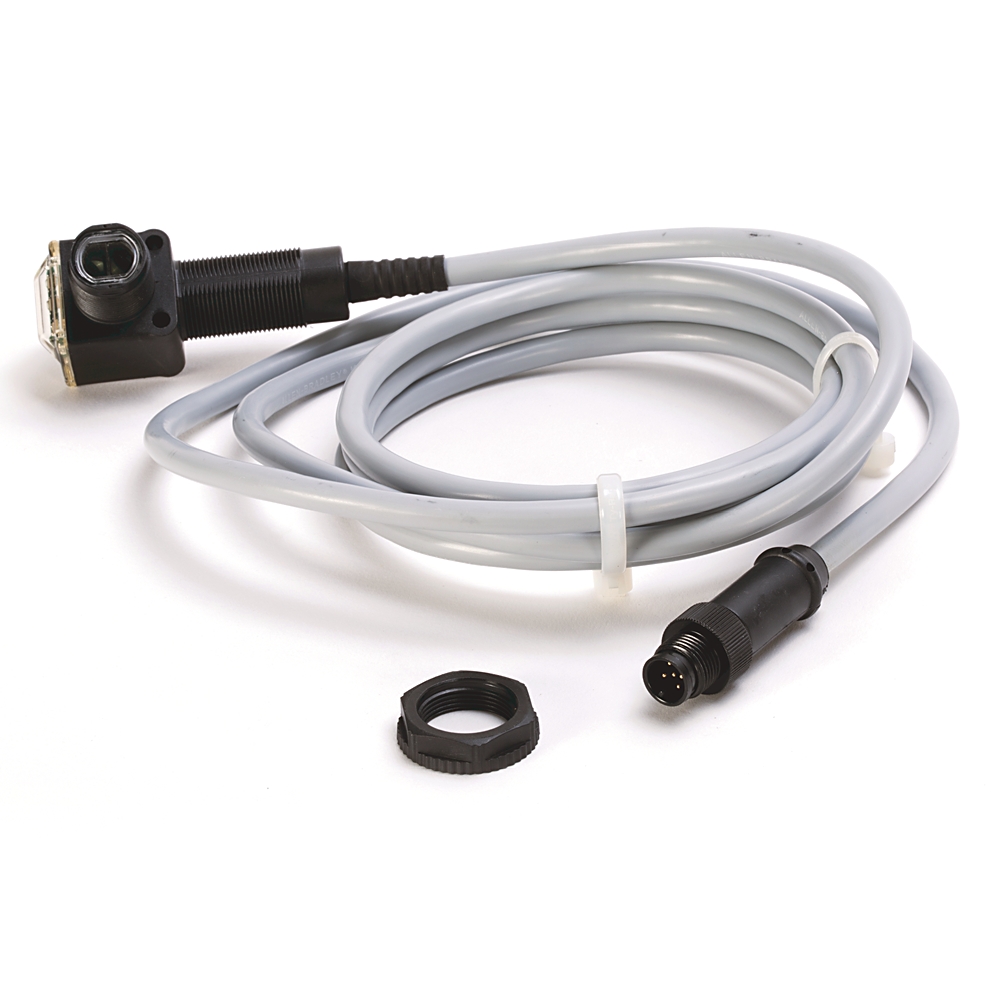

PHOTOSWITCH Photoelectric Sensor, RightSight, Polarized Retroflective, Red, DC - 2 Complementary LO/DO Outputs, Source (PNP), 2m (6.5ft) cable, IO-Link Enabled

Unique Product Identifier	42ef-p2mpb-a2
UPC	662468595896
Estimated Lead Time	5 days
Country of Origin	Dominican Republic

Degree of protection (NEMA)	6P
Degree of protection (IP)	IP67
Width sensor	27 mm
Height of sensor	46.7 mm
Length of sensor	34.5 mm
Setting procedure	Other
Field of view	1.5 °
Spot size	83.8 mm @ 3 m
List of degrees of protection (NEMA)	4X, 6P
Sensing mode	Polarized retroreflective
List of degrees of protection (IP)	IP67 (IEC 529), 1200 psi (8270 kPa) washdown
Vibration	10...55 Hz, 1 mm Alitude, meets or exceeds IEC 60947-5-2
Shock	30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2
Sensing distance designator	TBD

Response time	1 ms
Voltage type	DC
Rated control supply voltage at DC	10.8 V
Type of switching output	PNP
Type of electric connection	Cable
Type of light	Other
Current consumption	35 mA DC max, 15 mA AC max
Lens material	Acrylic
Sensitivity adjustment	Not adjustable
Leakage current	DC: 0.1 mA, max, AC: 0.4 mA, max
Light source	Visible red
Output type	PNP
Connection type	2 m cable
Operating voltage/mode	DC - complementary light or dark operate
Protection type	Short circuit, reverse polarity, false pulse, overload
LED status	Yellow (for DC models, output and margin LEDs alternate flashing when SCP is active), OFF: output de-energized, label: output de-energized, ON: output energized, label: output energized, Flashing: short circuit protection (SCP) active
Max. output current	100 mA

Material housing	Other
Housing material	Mindel™
Cover material	Udel™

Relative humidity	5…95% (noncondensing)
Ambient light immunity	Incandescent light 5000 lux
Operating temperature	-25 to 70 °C (-13 to 158 °F) @ 132V AC/DC

Drawings
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DXF)

General	Publication
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	42ef-p2mpb-a2
UPC	662468595896
Estimated Lead Time	5 days
Country of Origin	Dominican Republic

Technical Specifications

Degree of protection (NEMA)	6P
Degree of protection (IP)	IP67
Width sensor	27 mm
Height of sensor	46.7 mm
Length of sensor	34.5 mm
Setting procedure	Other
Field of view	1.5 °
Spot size	83.8 mm @ 3 m
List of degrees of protection (NEMA)	4X, 6P
Sensing mode	Polarized retroreflective
List of degrees of protection (IP)	IP67 (IEC 529), 1200 psi (8270 kPa) washdown
Vibration	10...55 Hz, 1 mm Alitude, meets or exceeds IEC 60947-5-2
Shock	30 G with 1 ms pulse duration, meets or exceeds IEC 60947-5-2
Sensing distance designator	TBD

Response time	1 ms
Voltage type	DC
Rated control supply voltage at DC	10.8 V
Type of switching output	PNP
Type of electric connection	Cable
Type of light	Other
Current consumption	35 mA DC max, 15 mA AC max
Lens material	Acrylic
Sensitivity adjustment	Not adjustable
Leakage current	DC: 0.1 mA, max, AC: 0.4 mA, max
Light source	Visible red
Output type	PNP
Connection type	2 m cable
Operating voltage/mode	DC - complementary light or dark operate
Protection type	Short circuit, reverse polarity, false pulse, overload
LED status	Yellow (for DC models, output and margin LEDs alternate flashing when SCP is active), OFF: output de-energized, label: output de-energized, ON: output energized, label: output energized, Flashing: short circuit protection (SCP) active
Max. output current	100 mA

Material housing	Other
Housing material	Mindel™
Cover material	Udel™

Relative humidity	5…95% (noncondensing)
Ambient light immunity	Incandescent light 5000 lux
Operating temperature	-25 to 70 °C (-13 to 158 °F) @ 132V AC/DC

Drawings

Drawings
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DXF)

Documents

Product Cutsheet General
--

General	Publication
Product Cutsheet	--
