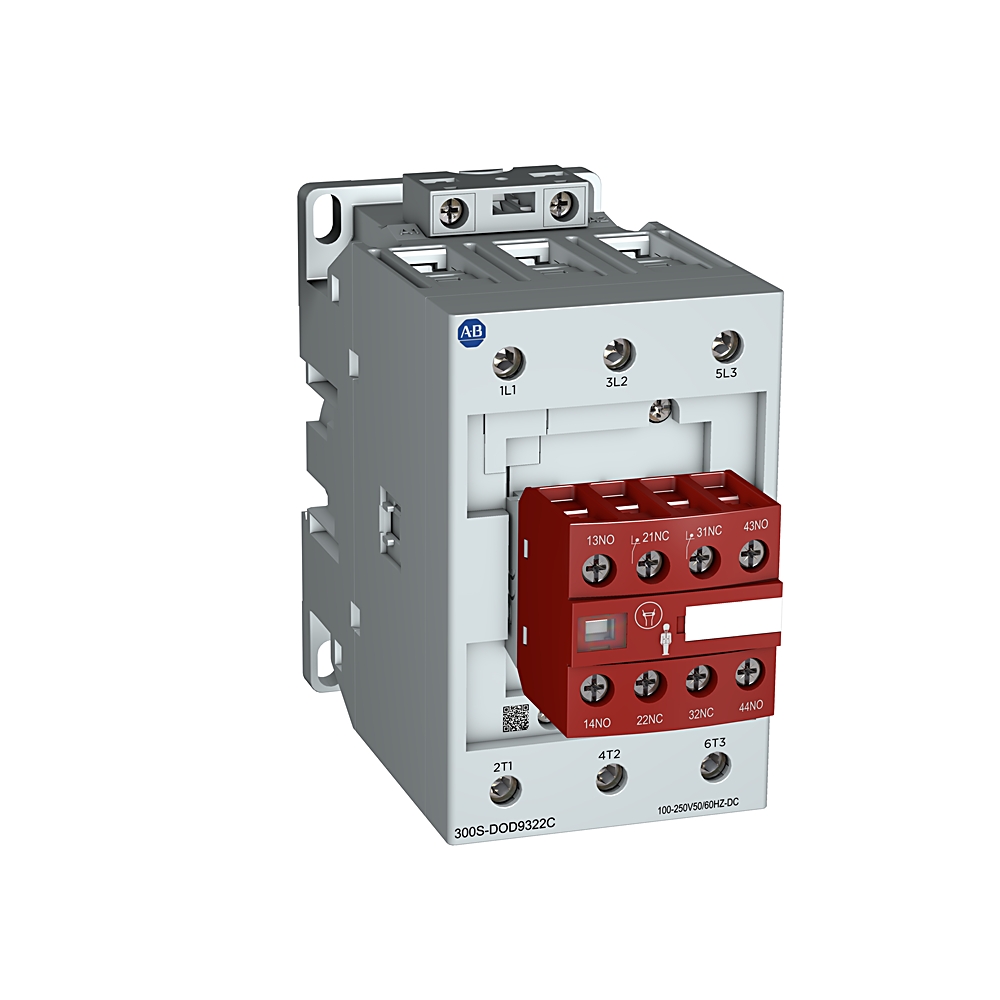

300S-DOD9322C

NEMA Size 3 Safety Contactor

Name: NEMA Size 3 Safety Contactor
Brand: Rockwell Automation
SKU: 300S-DOD9322C

Serial #:

Lifecycle status: Active

Description

300S Safety Contactor, Size 3, 3 NO Poles, 2 N.O, 2 N.C. Auxiliary Contact, Screw Terminals

Lifecycle status: Active

Description

300S Safety Contactor, Size 3, 3 NO Poles, 2 N.O, 2 N.C. Auxiliary Contact, Screw Terminals

Unique Product Identifier	300S-DOD9322C
UPC	191326937863
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	France

Mechanical

Altitude, max	3000 m of installation site
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Protection class	Contactor main contact: IP00
Shock resistance	IEC 60068-2-27
Vibration resistance	IEC 60068-2-6

Ambient temperature	Storage: -60...80 °C (-76...176 °F)
Climatic withstand	Category B according to IEC 60947-1, annex Q

Contacts	3 main poles with N.C. mirror ftdback contacts
Continuous ampere rating	3-poles: 90 A
DIN fuses (gG) current rating	Type 2 (per IEC 60947-4-1): 80A @ 690V, 60 kA available fault current
Electromagnetic compatibility	IEC 60947-1 - Environment A and B
FLA	105A @ 600V, 3-phase per UL/CSA HVAC applications
Features	Mirror contact performance on auxiliary contacts, Red N.C. low-power auxiliary contacts used for ftdback circuit, SUVA third-party certification, Sizes 00...5: AC/DC electronic coil with optional PLC interface, Sizes 6...8: AC/DC electronic coil with PLC
Function	Energy-saving safety contactor
General purpose current (enclosed)	80A @ 600V per UL/CSA
Horsepower rating, max	3-poles: 7.5Hp @ 115V, single-phase, full-load current must not exceed continuous Aere rating (60 Hz)
LRA	630 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications
MCCB current rating	Type 2 (per IEC 60947-4-1): 880A @ 400V, 70 kA available fault current
NEMA size	00...7
Operating limits, dropout	(≤0.60) x Us @ DC control
Operating limits, pick-up	(0.85...1.1) x Us @ 50/60 Hz
Operating time, closing delay	40 to 95 ms
Operating time, opening delay	11 to 95 ms
Optional accessories	Side-mount auxiliary contacts, Terminal shields, Terminal lugs, Terminal enlargements, Terminal extensions, Connection bars for 140G molded case circuit breakers, 140MG motor protection circuit breakers, and 140MG motor circuit protectors
Rated control supply voltage at AC 50 Hz	100 V
Rated control supply voltage at AC 60 Hz	100 V
Rated control supply voltage at DC	100 V
Rated impulse voltage withstand (Uimp)	6 kV
Rated isolation voltage (Ui)	600V per UL, CSA
Rated operational current (Ie)	85A @ 690V, AC-1 active power load (50/60 Hz), ambient temperature 70 °C (158 °F)
Rated operational current and power	56A @ 115V AC, 500000 electrical ops, 1-phase per UL/CSA elevator duty
Rated operational current and power (enclosed)	89A @ 250V DC, with 3-poles in series per UL/CSA
Rated operational power (Pe)	90 kW @ 415V, AC-1 active power load (50/60 Hz), ambient temperature 40 °C (104 °F)
Rated voltage (Ue)	24V @ 48V, 110V @ 220V, 440V DC
Standard coil, hold-in	2.2VA/2 W @ 100...250V AC/DC
Standard coil, pick-up	50VA/50 W @ 100...250V AC/DC
Switching of DC loads	3-poles in series: 125A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C)
Switching of lighting loads	Tungsten lA: 105A @ 600V, 3-phase (break all lines) per UL/CSA
Switching of power transformers	Apparent power: 99 kVA @ 600V @ 60Hz (n = 20)
Type of electrical connection of main circuit	Screw connection
UL class J and CSA HRCI-J fuses rating	Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 200A @ 600V, 100 kA available fault current
UL class RK5 fuses rating	Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 200A @ 600V, 10 kA available fault current
UL inverse-time circuit breaker	Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 250A @ 600V, 50 kA available fault current
Voltage type for actuating	AC/DC

Drawings
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DWG)

Drawings
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DWG)

General	Publication
Product Cutsheet	--
Dimensions (PDF)	--
Short Circuit Ratings	--
Specification Sheet	--

Technical Data	Publication
300-td003_-en-p	300-TD003
