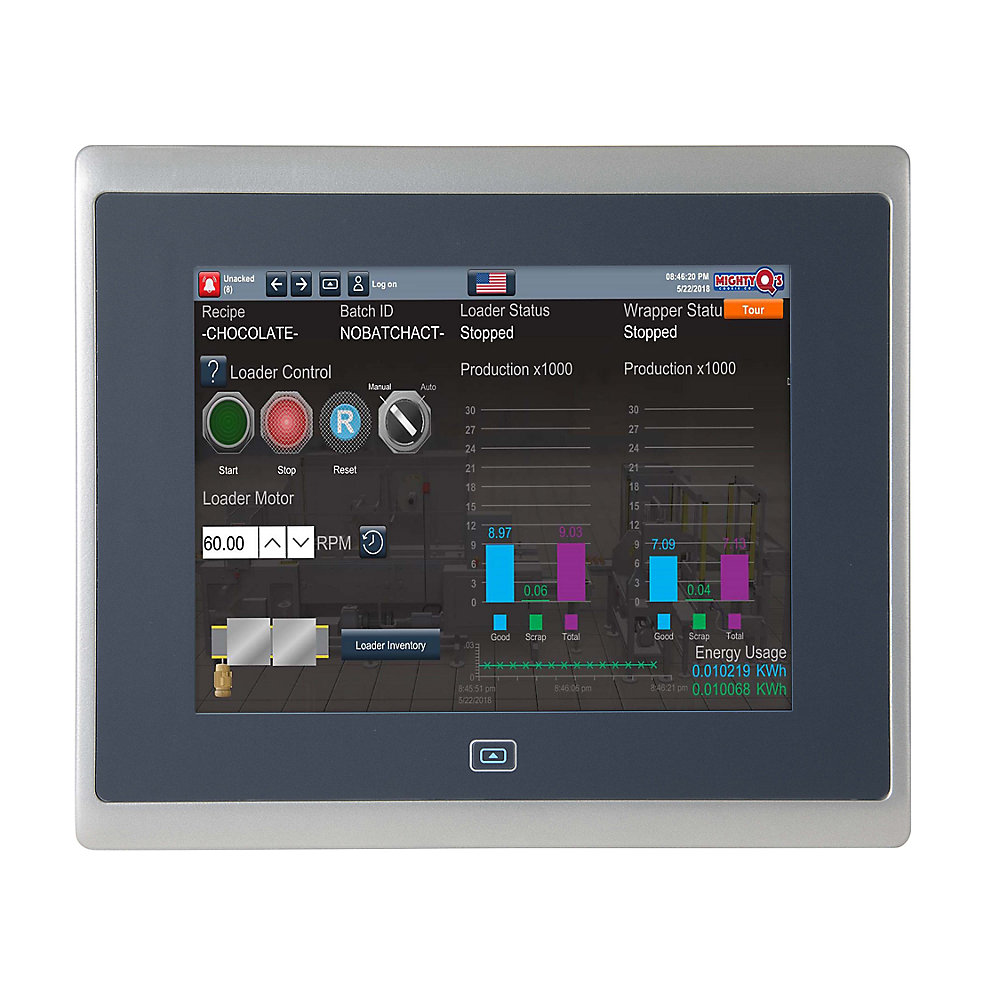

2715P-T10CD-B
PanelView 5510 Graphic Terminal
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Product at a glance
Description
PanelView 5510, 10 in. 4:3 Aspect ratio Display, Touch, 24V DC, Brandless, Non Conformal Coated
2715P-T10CD-B
PanelView 5510 Graphic Terminal
Serial #:
This product has not been verified. Please {} to confirm authenticity.
register your product
Lifecycle status:
Active
Product at a glance
Description
PanelView 5510, 10 in. 4:3 Aspect ratio Display, Touch, 24V DC, Brandless, Non Conformal Coated
Product Details
Look for SER on the product label to find your product series. To find information specific to your product, scan the QR code on the product label.
A
Overview
Electrical & Connectivity
General Features
Power & Electrical Characteristics
Compliance & Environment
Standards & Protection
Physical Characteristics
Mechanical
Construction
Sustainability
Substance Disclosures
Drawings
Documents
Certifications
Accessories
Technotes
| Unique Product Identifier |
2715P-T10CD-B
|
|---|---|
| UPC |
889508730837
|
| Estimated Lead Time |
45 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
United States of America
|
| Enclosure Color |
Dark Blue (Pantone 432C) and
|
|---|---|
| Height |
9.92 in
|
| Image Brightness |
300 nits
|
| Input Signal |
24 V DC
|
| Maximum Resolution |
800 x 600
|
| Aspect ratio |
4:3
|
|---|---|
| Backlight |
Type: light-emitting diode, non-replaceable, Life: 50000 hr minimum at 40 °C (104 °F) to half-brightness
|
| Backlight power consumption, typical |
4 W
|
| Battery (real-time clock backup) |
Accuracy: ±2 min per month, Battery life: 4 yr minimum at 25 °C (77 °F), Replacement: CR2032 lithium coin cell (Allen-Bradley part number 2711P-RY2032)
|
| Brightness, typical |
300 cdb/m²
|
| Color depth |
24-bit color graphics (16.7 mon colors)
|
| Display resolution |
800 x 600 SVGA
|
| Ethernet ports |
Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support (Device Level Ring) DLR, linear, or star network topologies.
|
| IO link master |
False
|
| Input voltage, nom |
24V DC (18...30V DC)
|
| Inrush current, typical |
7 A
|
| Memory |
RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects
|
| Number of HW-interfaces RS-232 |
0
|
| Number of HW-interfaces RS-422 |
0
|
| Number of HW-interfaces RS-485 |
0
|
| Number of HW-interfaces Wireless |
0
|
| Number of HW-interfaces industrial Ethernet |
2
|
| Number of HW-interfaces other |
0
|
| Number of HW-interfaces parallel |
0
|
| Number of HW-interfaces serial TTY |
0
|
| Number of buttons with LED |
0
|
| Number of function buttons, programmable |
0
|
| Number of grey-scales/blue-scales of display |
0
|
| Number of interfaces PROFINET |
0
|
| Number of system buttons |
1
|
| Operator input |
Touch plus menu navigation button
|
| Power consumption, max |
25 W
|
| Power consumption, typical |
15 W
|
| Power supply |
Supports SELV and PELV 24V DC supplies
|
| Process default value (input) possible |
False
|
| Process value representation (output) possible |
True
|
| Radio standard Bluetooth |
False
|
| Radio standard GPRS |
False
|
| Radio standard GSM |
False
|
| Radio standard UMTS |
False
|
| Radio standard Wi-Fi 802.11 |
False
|
| Screen diagonal |
10.4 in
|
| Secure Digital (SD) card slot |
One SD card slot for external storage, Supports cat. no. 1784-SDx cards
|
| Software |
Studio 5000 environment provides single portal to View Designer and Logix Designer applications
|
| Status indicator |
STS (status, green), ERR (error, red)
|
| Suitable for safety functions |
False
|
| Supply voltage DC |
18 V
|
| Supporting protocol for AS-Interface Safety at Work |
False
|
| Supporting protocol for ASI |
False
|
| Supporting protocol for CAN |
False
|
| Supporting protocol for Data-Highway |
False
|
| Supporting protocol for DeviceNet |
False
|
| Supporting protocol for DeviceNet Safety |
False
|
| Supporting protocol for EtherNet/IP |
True
|
| Supporting protocol for Foundation Fieldbus |
False
|
| Supporting protocol for INTERBUS |
False
|
| Supporting protocol for INTERBUS-Safety |
False
|
| Supporting protocol for KNX |
False
|
| Supporting protocol for LON |
False
|
| Supporting protocol for Modbus |
False
|
| Supporting protocol for PROFIBUS |
False
|
| Supporting protocol for PROFINET CBA |
False
|
| Supporting protocol for PROFINET IO |
False
|
| Supporting protocol for PROFIsafe |
False
|
| Supporting protocol for SERCOS |
False
|
| Supporting protocol for SUCONET |
False
|
| Supporting protocol for SafetyBUS p |
False
|
| Supporting protocol for TCP/IP |
True
|
| Supporting protocol for other bus systems |
False
|
| Touch screen |
Analog resistive, Actuation rating: 1 mon presses, Operating force: <100 g
|
| Touch technology |
Resistive touch
|
| Type of display |
TFT
|
| USB host port |
0.5A @ 5V DC (Type A)
|
| USB ports |
Host: two USB 2.0 high-speed (type A) host port to support removable USB drives for external storage, Device: one USB 2.0 high-speed (type B) device port to connect to a host computer that is software-feature dependent.
|
| Voltage type of supply voltage |
DC
|
| With Allen-Bradley brand marking |
False
|
| With SW interfaces |
True
|
| With alpha numeric keyboard |
False
|
| With colour display |
True
|
| With message indication |
True
|
| With message system (incl. buffer and confirmation) |
False
|
| With numeric keyboard |
False
|
| With printer output |
False
|
| With recipes |
False
|
| Altitude, operating |
2000 m
|
|---|---|
| Conformal coated |
True
|
| Degree of protection (IP), front side |
IP66
|
| Degree of protection (NEMA), front side |
4X
|
| List of degrees of protection (NEMA) |
4X, 12, 13
|
| Nonoperating temperature |
-25 °C
|
| Operating temperature |
0 °C
|
| Power dissipation |
51 btu/hr
|
| Relative humidity |
5...95% noncondensing
|
| Shock |
Operating: 15 G @ 11 ms, Nonoperating: 30 G @ 11 ms
|
| Vibration |
0.012 peak-peak, 10...57 Hz, 2 G peak at 57...500 Hz
|
Mechanical
| Cutout dimensions, approx |
Height: 224 mm (8.82 in), Width: 269 mm (10.59 in)
|
|---|---|
| Height of the front |
252 mm
|
| Mounted depth |
64 mm
|
| Overall depth |
69.5 mm
|
| Rail mounting possible |
False
|
| Wall mounting/direct mounting |
True
|
| Width of the front |
297 mm
|
Construction
| View area |
Width: 211 mm (8.3 in), Height: 158 mm (6.2 in)
|
|---|---|
| Weight, approx |
3.35 g
|
| Environmental Compliance | |
|---|---|
| SVHC Information |
| Drawings | |
|---|---|
| 2-Dimensional Drawing (PDF) | Download (PDF) |
| 3D STP Model (STEP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 2-Dimensional Drawing (PDF) Download (PDF) |
| 3D STP Model (STEP) Download (ZIP) |
| Product Drawing Drawing (DXF) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| General | Publication |
|---|---|
| Terminals Cutout Template | -- |
| User Manual | -- |
| Product Information | -- |
| Product Profile | 2715-PP001 |
| Technical Data | -- |
| Product Cutsheet | -- |
| Technical Data | Publication |
|---|---|
| 2715p-td001_-en-p | 2715P-TD001 |

Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Visit the Technical Documentation Center
Search the Literature Library
This product was certified with the above certifications as of 2026-07-17. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.
Regulatory Information
| EU Importer Address |
Rockwell Automation N.V |
|---|---|
| EU Authorized Representative Address |
Rockwell Automation N.V |
Items Per Page:
| Technotes |
|---|
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Overview
| Unique Product Identifier |
2715P-T10CD-B
|
|---|---|
| UPC |
889508730837
|
| Estimated Lead Time |
45 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
United States of America
|
Electrical & Connectivity
| Enclosure Color |
Dark Blue (Pantone 432C) and
|
|---|---|
| Height |
9.92 in
|
| Image Brightness |
300 nits
|
| Input Signal |
24 V DC
|
| Maximum Resolution |
800 x 600
|
| Aspect ratio |
4:3
|
|---|---|
| Backlight |
Type: light-emitting diode, non-replaceable, Life: 50000 hr minimum at 40 °C (104 °F) to half-brightness
|
| Backlight power consumption, typical |
4 W
|
| Battery (real-time clock backup) |
Accuracy: ±2 min per month, Battery life: 4 yr minimum at 25 °C (77 °F), Replacement: CR2032 lithium coin cell (Allen-Bradley part number 2711P-RY2032)
|
| Brightness, typical |
300 cdb/m²
|
| Color depth |
24-bit color graphics (16.7 mon colors)
|
| Display resolution |
800 x 600 SVGA
|
| Ethernet ports |
Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support (Device Level Ring) DLR, linear, or star network topologies.
|
| IO link master |
False
|
| Input voltage, nom |
24V DC (18...30V DC)
|
| Inrush current, typical |
7 A
|
| Memory |
RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects
|
| Number of HW-interfaces RS-232 |
0
|
| Number of HW-interfaces RS-422 |
0
|
| Number of HW-interfaces RS-485 |
0
|
| Number of HW-interfaces Wireless |
0
|
| Number of HW-interfaces industrial Ethernet |
2
|
| Number of HW-interfaces other |
0
|
| Number of HW-interfaces parallel |
0
|
| Number of HW-interfaces serial TTY |
0
|
| Number of buttons with LED |
0
|
| Number of function buttons, programmable |
0
|
| Number of grey-scales/blue-scales of display |
0
|
| Number of interfaces PROFINET |
0
|
| Number of system buttons |
1
|
| Operator input |
Touch plus menu navigation button
|
| Power consumption, max |
25 W
|
| Power consumption, typical |
15 W
|
| Power supply |
Supports SELV and PELV 24V DC supplies
|
| Process default value (input) possible |
False
|
| Process value representation (output) possible |
True
|
| Radio standard Bluetooth |
False
|
| Radio standard GPRS |
False
|
| Radio standard GSM |
False
|
| Radio standard UMTS |
False
|
| Radio standard Wi-Fi 802.11 |
False
|
| Screen diagonal |
10.4 in
|
| Secure Digital (SD) card slot |
One SD card slot for external storage, Supports cat. no. 1784-SDx cards
|
| Software |
Studio 5000 environment provides single portal to View Designer and Logix Designer applications
|
| Status indicator |
STS (status, green), ERR (error, red)
|
| Suitable for safety functions |
False
|
| Supply voltage DC |
18 V
|
| Supporting protocol for AS-Interface Safety at Work |
False
|
| Supporting protocol for ASI |
False
|
| Supporting protocol for CAN |
False
|
| Supporting protocol for Data-Highway |
False
|
| Supporting protocol for DeviceNet |
False
|
| Supporting protocol for DeviceNet Safety |
False
|
| Supporting protocol for EtherNet/IP |
True
|
| Supporting protocol for Foundation Fieldbus |
False
|
| Supporting protocol for INTERBUS |
False
|
| Supporting protocol for INTERBUS-Safety |
False
|
| Supporting protocol for KNX |
False
|
| Supporting protocol for LON |
False
|
| Supporting protocol for Modbus |
False
|
| Supporting protocol for PROFIBUS |
False
|
| Supporting protocol for PROFINET CBA |
False
|
| Supporting protocol for PROFINET IO |
False
|
| Supporting protocol for PROFIsafe |
False
|
| Supporting protocol for SERCOS |
False
|
| Supporting protocol for SUCONET |
False
|
| Supporting protocol for SafetyBUS p |
False
|
| Supporting protocol for TCP/IP |
True
|
| Supporting protocol for other bus systems |
False
|
| Touch screen |
Analog resistive, Actuation rating: 1 mon presses, Operating force: <100 g
|
| Touch technology |
Resistive touch
|
| Type of display |
TFT
|
| USB host port |
0.5A @ 5V DC (Type A)
|
| USB ports |
Host: two USB 2.0 high-speed (type A) host port to support removable USB drives for external storage, Device: one USB 2.0 high-speed (type B) device port to connect to a host computer that is software-feature dependent.
|
| Voltage type of supply voltage |
DC
|
| With Allen-Bradley brand marking |
False
|
| With SW interfaces |
True
|
| With alpha numeric keyboard |
False
|
| With colour display |
True
|
| With message indication |
True
|
| With message system (incl. buffer and confirmation) |
False
|
| With numeric keyboard |
False
|
| With printer output |
False
|
| With recipes |
False
|
Compliance & Environment
| Altitude, operating |
2000 m
|
|---|---|
| Conformal coated |
True
|
| Degree of protection (IP), front side |
IP66
|
| Degree of protection (NEMA), front side |
4X
|
| List of degrees of protection (NEMA) |
4X, 12, 13
|
| Nonoperating temperature |
-25 °C
|
| Operating temperature |
0 °C
|
| Power dissipation |
51 btu/hr
|
| Relative humidity |
5...95% noncondensing
|
| Shock |
Operating: 15 G @ 11 ms, Nonoperating: 30 G @ 11 ms
|
| Vibration |
0.012 peak-peak, 10...57 Hz, 2 G peak at 57...500 Hz
|
Physical Characteristics
Mechanical
| Cutout dimensions, approx |
Height: 224 mm (8.82 in), Width: 269 mm (10.59 in)
|
|---|---|
| Height of the front |
252 mm
|
| Mounted depth |
64 mm
|
| Overall depth |
69.5 mm
|
| Rail mounting possible |
False
|
| Wall mounting/direct mounting |
True
|
| Width of the front |
297 mm
|
Construction
| View area |
Width: 211 mm (8.3 in), Height: 158 mm (6.2 in)
|
|---|---|
| Weight, approx |
3.35 g
|
