PowerFlex TL XT 755 AC Drive

Name: PowerFlex TL XT 755 AC Drive
Brand: Rockwell Automation
SKU: 20GEG3D710LNDNNNNN-P50

Serial #:

Lifecycle status: Active

Product at a glance

Repair Options Available

Lifecycle status: Active

Product at a glance

Repair Options Available

Description

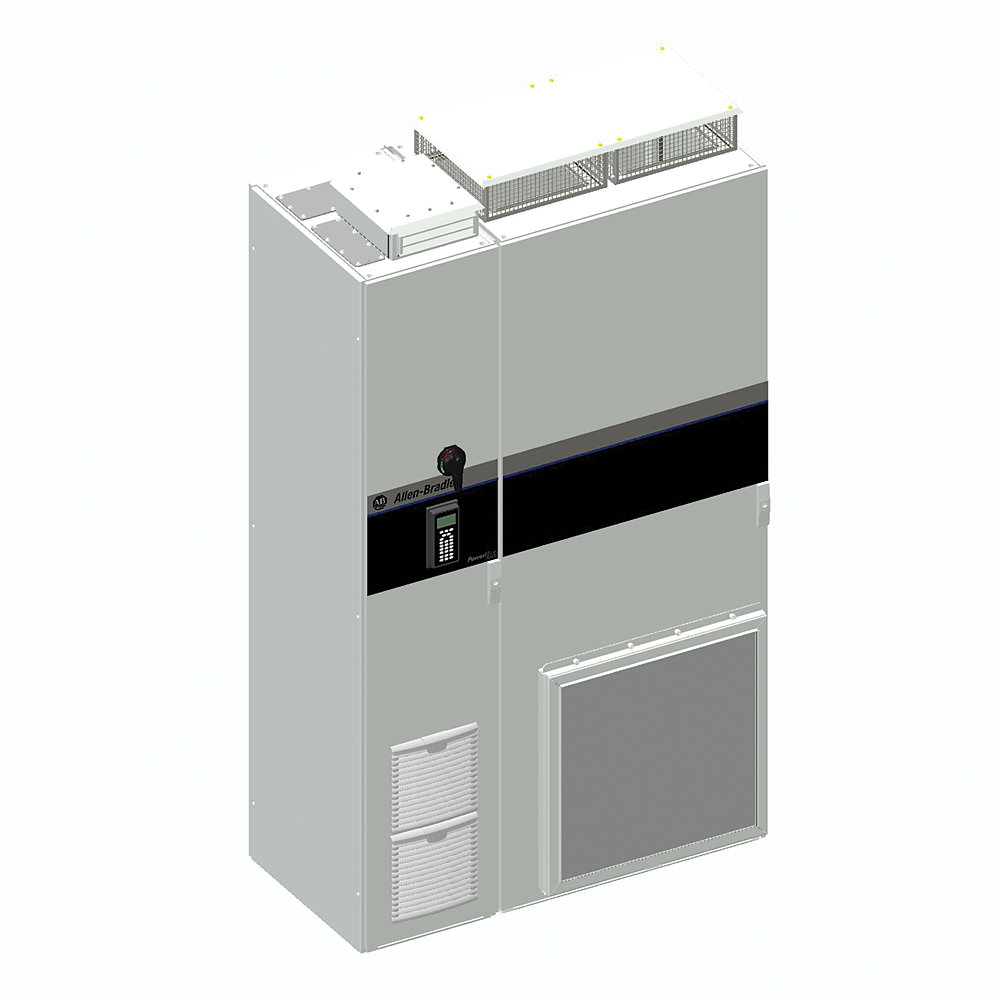

PowerFlex 755T Drives, Corrosive Gas Protection (XT), Forced Air, Low Harmonic Drive (PowerFlex 755TL), Type 1/IP21, Floor Mount, LD - 650HP (765A), ND - 600HP (710A), HD - 450HP (545A), 480 VAC, 3 PH, Frame 8, Standard EMI Protection, Door Mounted HIM (20-750-C6S) & TotalFORCE Control

Product Details

Unique Product Identifier	20GEG3D710LNDNNNNN-P50
UPC	197734879603
Estimated Lead Time	15 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

DC Bus Snubber	DC Bus Conditoner
Display	IP54/Type 12 Door-Mounted HIM
Dynamic Braking	No
Enclosure	Type 1/IP21, Floor Mount
Filtering & CM Cap Config	No EMC, Jumper Removed
Input Type	AFE Low Harmonic Floor Mount
Power Rating	480V-AC: 710A ND
Size	Frame 8C
Type	755 AC Drive,XT Corrosion Protection
Voltage Rating	480V AC, 3 PH

Environmental Compliance	See Details \| Submit Inquiry
SVHC Information	View Guidance

Drawings
Standard Dimension Drawing (PDF)	Download (PDF)
Standard Block Connection Schematic IEC Drawing (PDF)	Download (PDF)
Dimension Drawing (PDF)	Download (PDF)
3D STEP (STP) Model	Download (ZIP)
Dimension Wiring Drawing (PDF)	Download (PDF)
Standard Block Connection Schematic NEMA Drawing (PDF)	Download (PDF)
Standard 3D STEP (STP) Model	Download (ZIP)
Product Drawing	Drawing (DXF)
Product Drawing	Drawing (DXF)
Product Drawing	Drawing (DXF)
Product Drawing	Drawing (DXF)

Drawings
Standard Dimension Drawing (PDF) Download (PDF)
Standard Block Connection Schematic IEC Drawing (PDF) Download (PDF)
Dimension Drawing (PDF) Download (PDF)
3D STEP (STP) Model Download (ZIP)
Dimension Wiring Drawing (PDF) Download (PDF)
Standard Block Connection Schematic NEMA Drawing (PDF) Download (PDF)
Standard 3D STEP (STP) Model Download (ZIP)
Product Drawing Drawing (DXF)
Product Drawing Drawing (DXF)
Product Drawing Drawing (DXF)
Product Drawing Drawing (DXF)

General	Publication
PowerFlex 750-Series Products with TotalFORCE Control Renewal Parts	750-PC104
PowerFlex 750-Series Drives with TotalFORCE Control Built-in EtherNet/IP Adapter	750COM-UM009
Product Cutsheet	--
PowerFlex 750-Series Products with TotalFORCE Control	750-PC100
PowerFlex 755TM IP00 Open Type Kits	750-PC101
PowerFlex Drives with TotalFORCE Control Programming	750-PM100
PowerFlex 755TM UL Listed Accessories	750-PC102
PowerFlex 755TM Power and Filter Modules Unpacking and Lifting Instructions	750-IN104
PowerFlex 750-Series Service Cart and DCPC Module Lift	750-IN105
Circuit Protection Design and SCCR Tables	--
Drives in Common Bus Configurations with PowerFlex 755TM Bus Supplies	DRIVES-AT005
PowerFlex 755TM Power and Filter Module Storage Hardware	750-IN106
PowerFlex 750-Series Products with TotalFORCE Control Installation	750-IN100
PowerFlex 755TM Accessories	750-PC103
PowerFlex 755T Power Module Service Ramp Instructions	750-IN108
PowerFlex 755TM AC Precharge Modules Unpacking and Lifting Instructions	750-IN102
PowerFlex 750-Series Products with TotalFORCE Control Hardware Service	750-TG100
PowerFlex 755TM IP00 Open Type Kits	750-TD101
PowerFlex 755TM IP00 Open Type Kits	750-IN101
PowerFlex 755TM DC Precharge Modules Unpacking and Lifting Instructions	750-IN103

Installation Instructions	Publication
750-in020_-en-p	750-IN020

Technical Data	Publication
750-td100_-en-p	750-TD100
750-td100_-en-p_doc	750-TD100

Troubleshooting Guide	Publication
750-tg102_-en-p	750-TG102
750-tg103_-en-p	750-TG103
750-tg104_-en-p	750-TG104
