20GE1FC086JA0NNNNN

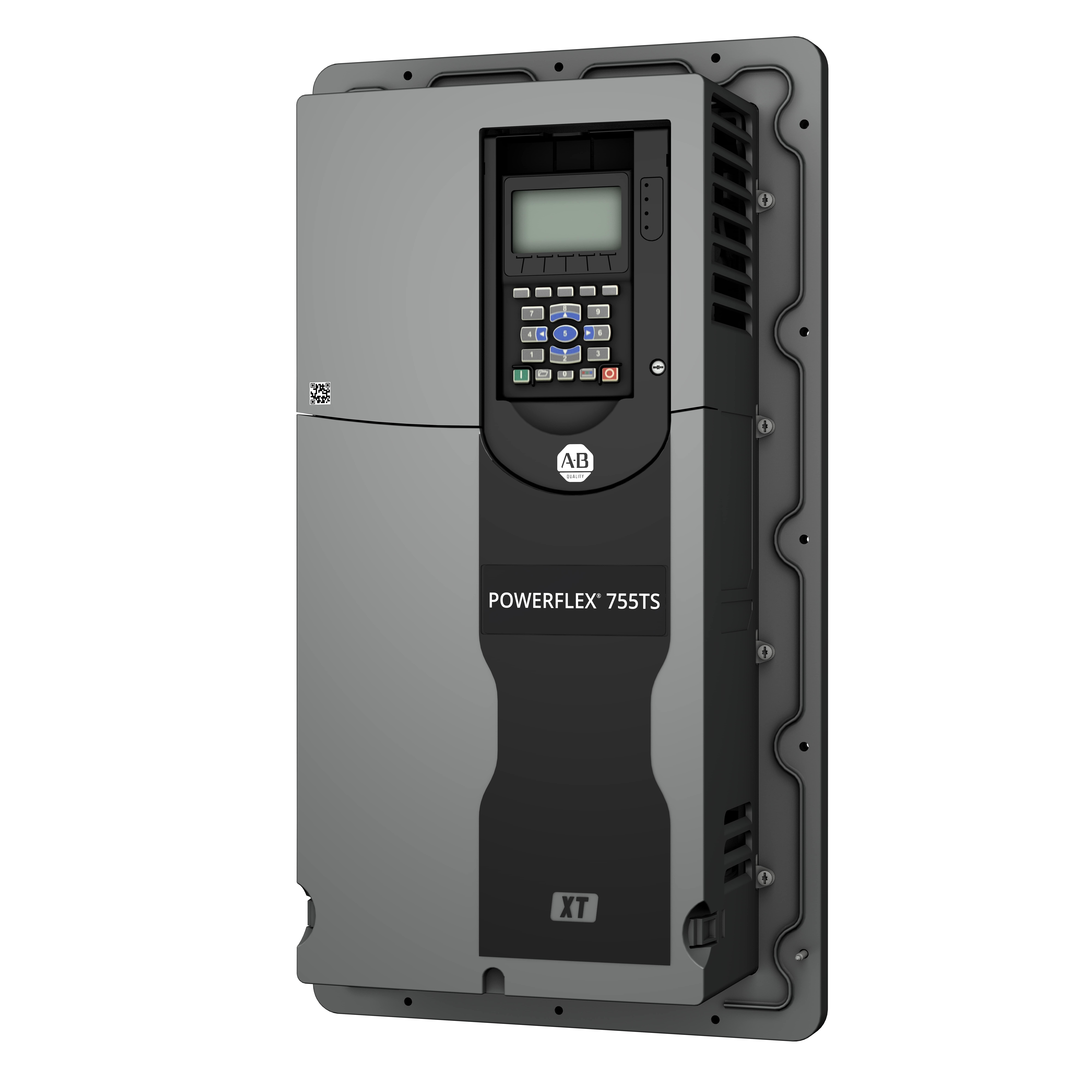

PowerFlex TS XT 755 AC Drive
Product at a glance
Build America, Buy America
Product at a glance
Build America, Buy America
| Corrosion Protection |
XT
|
|---|---|
| Current / Power Rating |
86 A, 45kW ND, 37kW HD
|
| Dynamic Braking |
DB Transistor
|
| Enclosure Type |
Flange Type
|
| Filtering & CM Cap Config |
CM Jumper Installed
|
| Frame Size |
Frame 4
|
| HIM |
Blank (No HIM)
|
| Input Type |
AC Input with Precharge
|
| Product Family |
PowerFlex TS
|
| Type |
755 AC Drive
|
| Voltage Class |
400V AC, 3 PH
|
| Drawings | |
|---|---|
| 3D STEP (STP) Model | Download (ZIP) |
| 2D Drawing (PDF) | Download (PDF) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STEP (STP) Model Download (ZIP) |
| 2D Drawing (PDF) Download (PDF) |
| Product Drawing Drawing (DXF) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| General | Publication |
|---|---|
| Product Cutsheet | -- |
| Circuit Protection Design and SCCR Tables | -- |
| Technical Data | Publication |
|---|---|
| 750-td104_-en-p | 750-TD104 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- UL Listed
This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
| Technotes |
|---|
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Corrosion Protection |
XT
|
|---|---|
| Current / Power Rating |
86 A, 45kW ND, 37kW HD
|
| Dynamic Braking |
DB Transistor
|
| Enclosure Type |
Flange Type
|
| Filtering & CM Cap Config |
CM Jumper Installed
|
| Frame Size |
Frame 4
|
| HIM |
Blank (No HIM)
|
| Input Type |
AC Input with Precharge
|
| Product Family |
PowerFlex TS
|
| Type |
755 AC Drive
|
| Voltage Class |
400V AC, 3 PH
|
Drawings
| Drawings | |
|---|---|
| 3D STEP (STP) Model | Download (ZIP) |
| 2D Drawing (PDF) | Download (PDF) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STEP (STP) Model Download (ZIP) |
| 2D Drawing (PDF) Download (PDF) |
| Product Drawing Drawing (DXF) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
