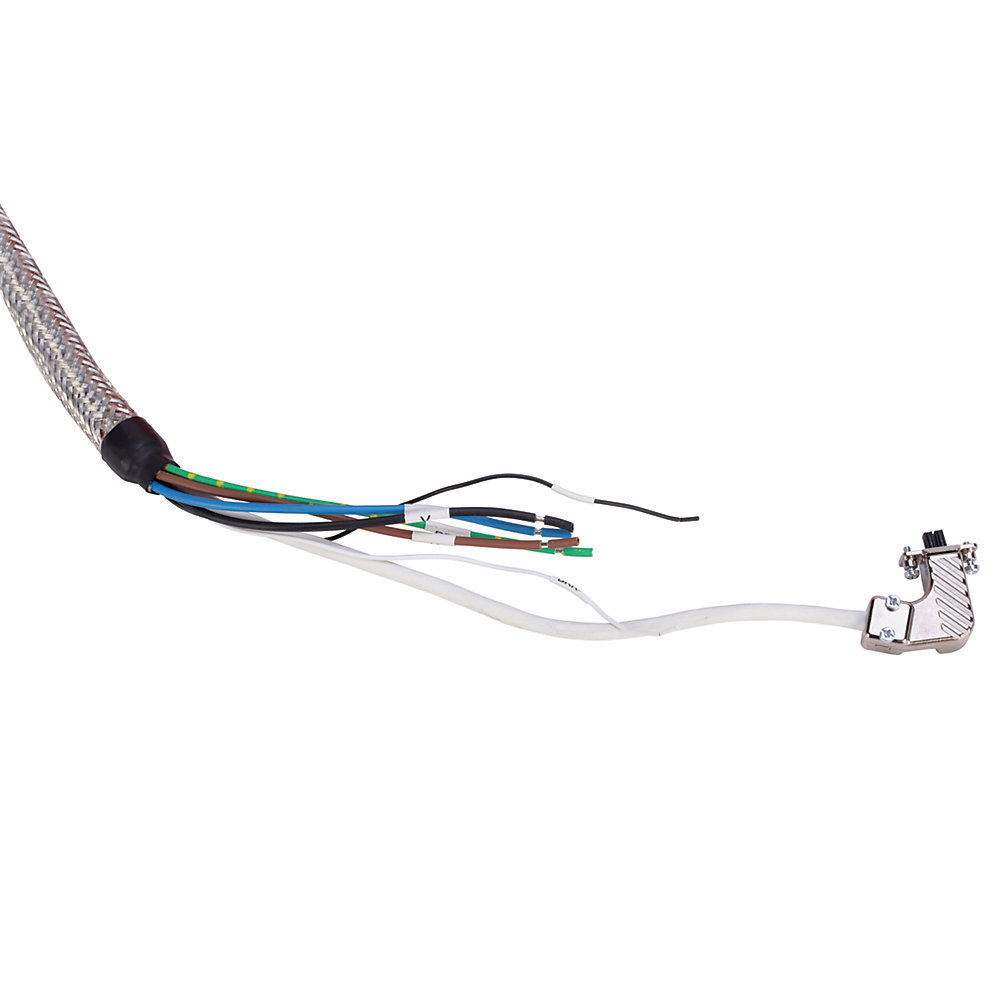

2090-CSBM1DE-14AA05

Kinetix Cable Single DSL 2090 Series

Serial #:

Lifecycle status: Active

Drive-end Connector Type	Drive-end, connector kit

Outer diameter approx.	17 mm
Core colour	White
Cable length	5 m
Drive-end connector type	Drive-end, flying-leads with factory pre-installed connector kit (optimized for Kinetix 5700)
Number of cores	8
With protective conductor	True
Core identification	Colour
Colour outer sheath	Orange
Conductor material	Copper
Conductor surface	Tinned
Color cable code	RAL2003
Core color	White/blue
Motor-end connector type	Single speedTec DIN connector

AWG size	14 AWG
Nominal voltage U	1000 V
Cable type	Single motor power with brake wires
Cable description	Power with brake wires: 1000V hybrid cable with four power, two ftdback (digital communication), and two brake conductors

Nominal cross section conductor	2.08
Nominal cross section conductor (AWG)	4.1
Cable style	Standard, non-flexible
Weight, approx	Standard (non-flex), power with brake wire: 0.261 kg/m
Twisted cores	False
Accessory component	Cable
Static bend radius	Standard (non-flex) and continuous flex: 7 times the cable diam
Features	Low capacitance design to maximize system power density, speedtec connection system, encoder communication data pair with noise rejection, TPE jacket with mechanical and chemical properties, cable features overall tinned copper braid with aluminum/pol

Max. conductor temperature	105 °C
