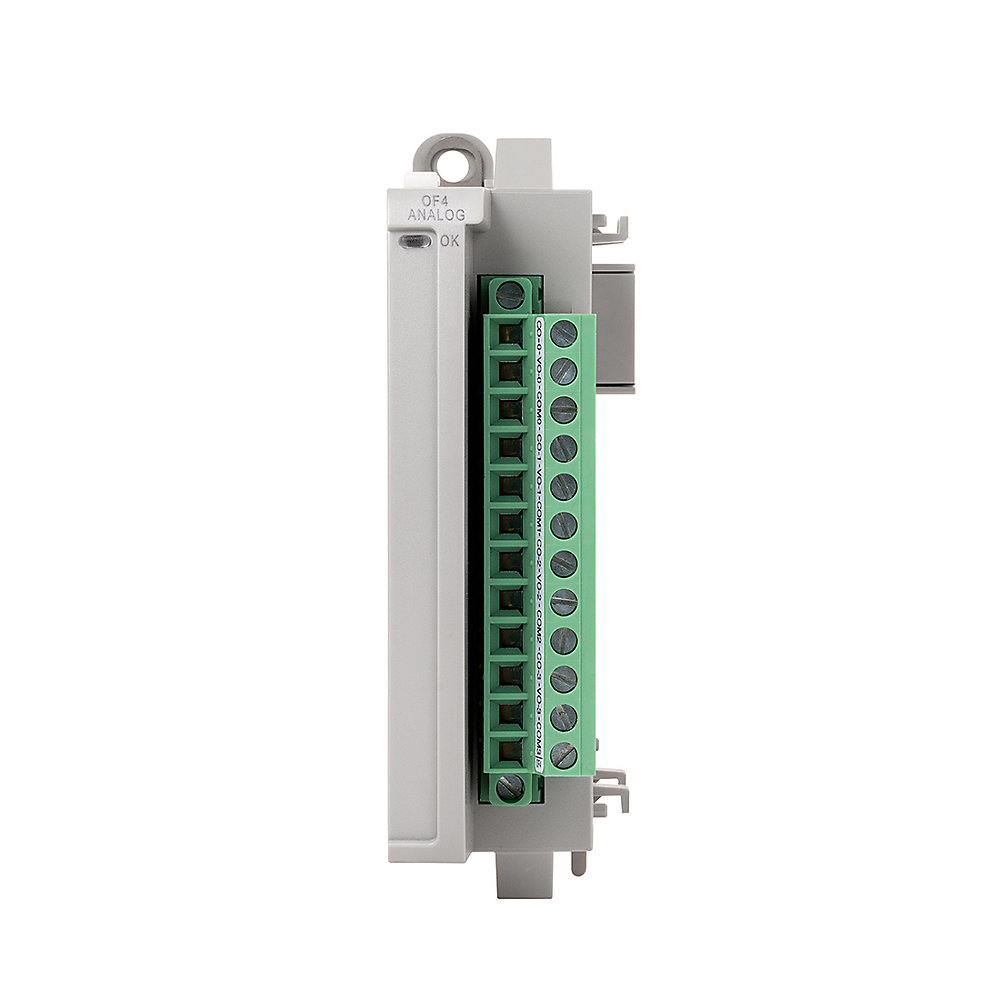

Micro800 4 Point Analog Output Module

Serial #:

Lifecycle status: Active

Depth	87mm
Expansion I/O Modules	Micro800 Output Module, Analog, Voltage/Current, 4 Channels, Bipolar, +-10V, 0-20mA
Height	90mm
I/O Isolation	Isolated
I/O Status Indication	LED
Output	4 Point, +-10V, 0-20mA
Temperature Rating	-20…65 °C (-4…149 °F)
