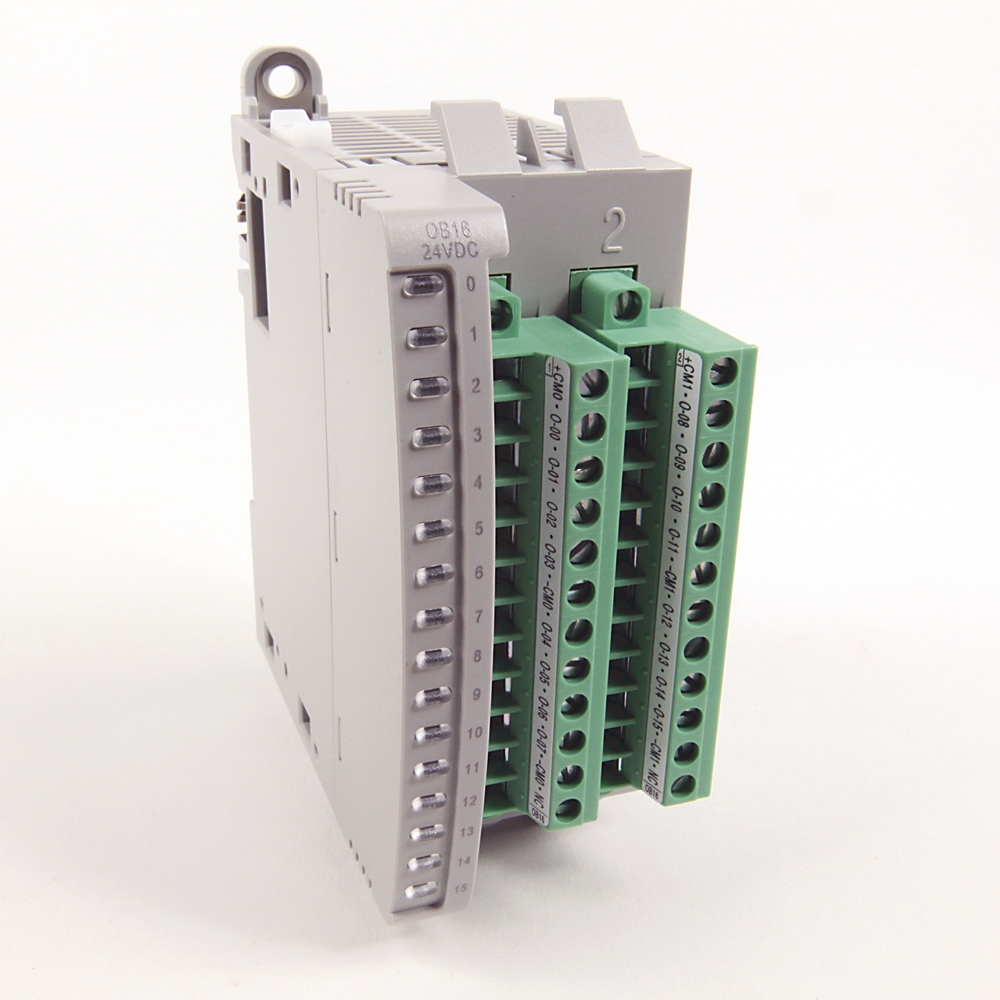

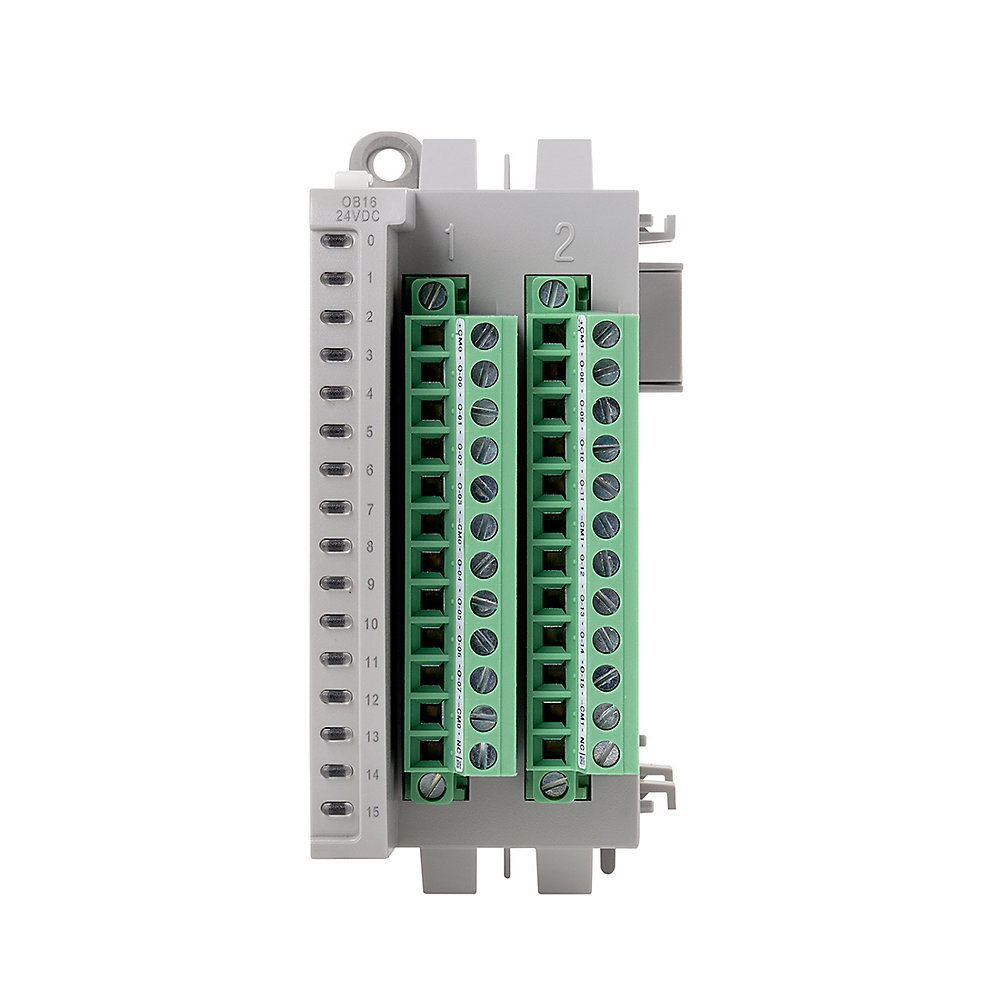

Micro800 16 Point Source Output Module

Name: 2085-OB16
Brand: Rockwell Automation

Serial #:

Lifecycle status: Active

Product at a glance

Product Registration

Lifecycle status: Active

Product at a glance

Product Registration

Depth	87mm
Expansion I/O Modules	Micro800 Output Module, Digital, 16 Point, 12/24V DC, Source
Height	90mm
I/O Isolation	Isolated
I/O Status Indication	LED
Output	16 Point, 12/24V DC Source
Temperature Rating	-20…65 °C (-4…149 °F)

Drawings
3D STP (STEP) Model	Download (ZIP)
Dimension Drawing (PDF)	Download (PDF)
Product Drawing	Drawing (DXF)

Drawings
3D STP (STEP) Model Download (ZIP)
Dimension Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)

General	Publication
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Visit the Technical Documentation Center Search the Literature Library

Australian RCM
Korean Register of Shippin
UL Listed
Bureau Veritas
UKCA DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Technical Specifications

Depth	87mm
Expansion I/O Modules	Micro800 Output Module, Digital, 16 Point, 12/24V DC, Source
Height	90mm
I/O Isolation	Isolated
I/O Status Indication	LED
Output	16 Point, 12/24V DC Source
Temperature Rating	-20…65 °C (-4…149 °F)
