2080-iq4

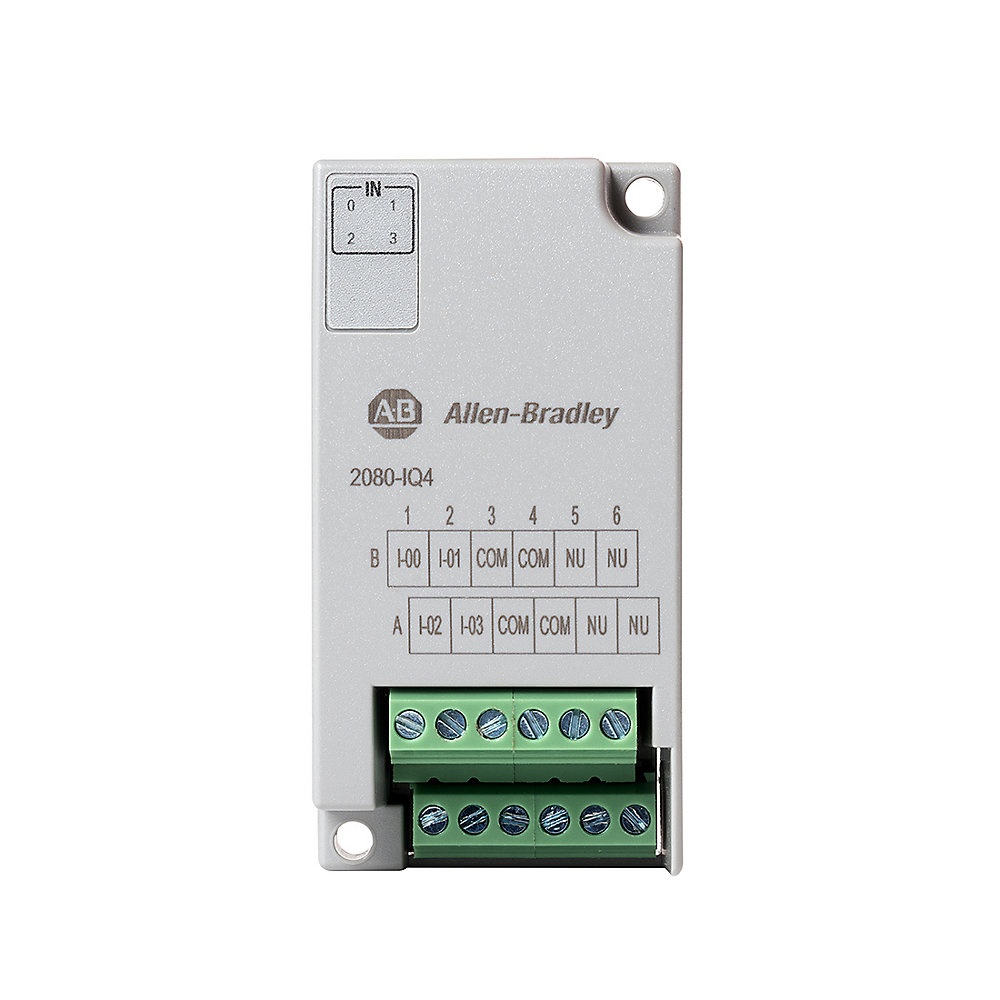

Micro800 4 Point IEC Digital Input

Name: Micro800 4 Point IEC Digital Input
Brand: Rockwell Automation
SKU: 2080-iq4

Serial #:

Lifecycle status: Active

Description

2080 Micro800 System, 4-ch Digital Input module

Unique Product Identifier	2080-iq4
UPC	885630234892
Estimated Lead Time	5 days
Country of Origin	Mexico

Consist Of	Screws
I/O Isolation	None
Temperature Rating	-20…65 °C (-4…149 °F)

Number of digital inputs	4
Digital inputs configurable	False
Digital outputs configurable	False
Type of voltage (input voltage)	AC/DC
Type of output voltage	DC
Type of digital output	Transistor
Type of electric connection	Screw connection
Status indicator	4 yellow
ON-state current, max	5 mA
On-state current, nom	3.0mA @ 24V DC
Wire size	0.2... 2.5 mm2 (24...12 AWG) solid or stranded copper wire rated @ 90 °C (194 °F), or greater, insulation maximum
Isolation voltage	50V (continuous), basic insulation type, inputs to backplane type tested for 60 s @ 720V DC, inputs to backplane
Redundancy	False
SIL according to IEC 61508	None

Surrounding air temperature, max	65 °C
North American temperature code	T4
Relative humidity	5...95% noncondensing
Operating temperature	-20 to 65 °C
Nonoperating temperature	40 to 85 °C

IEC input compatibility	Type 3
Input filter time	ON to OFF: 8...10 ms AC/DC
Input impedance	0...3V, >4 KΩ, 3...12V, 3.5 KΩ minimum, 12...30V, >4 KΩ <10 KΩ

IEC input compatibility	Type 3
Input filter time	ON to OFF: 8...10 ms AC/DC
Input impedance	0...3V, >4 KΩ, 3...12V, 3.5 KΩ minimum, 12...30V, >4 KΩ <10 KΩ

Terminal base screw torque, max	0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
Shock	Operating: 25 g
Vibration	2.0 G @ 10…500 Hz
Mounting torque	0.2 nm

Drawings
3D STP (STEP) Model	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
3D STP (STEP) Model Download (ZIP)
Product Drawing Drawing (DXF)

General	Publication
Installation Guide	--
Product Cutsheet	--

User Manual	Publication
2080-um004_-en-e	2080-UM004
Micro800 Plug-in Modules User Manual	2080-UM002

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Visit the Technical Documentation Center Search the Literature Library

MOROCCO DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	2080-iq4
UPC	885630234892
Estimated Lead Time	5 days
Country of Origin	Mexico

Technical Specifications

Consist Of	Screws
I/O Isolation	None
Temperature Rating	-20…65 °C (-4…149 °F)

Number of digital inputs	4
Digital inputs configurable	False
Digital outputs configurable	False
Type of voltage (input voltage)	AC/DC
Type of output voltage	DC
Type of digital output	Transistor
Type of electric connection	Screw connection
Status indicator	4 yellow
ON-state current, max	5 mA
On-state current, nom	3.0mA @ 24V DC
Wire size	0.2... 2.5 mm2 (24...12 AWG) solid or stranded copper wire rated @ 90 °C (194 °F), or greater, insulation maximum
Isolation voltage	50V (continuous), basic insulation type, inputs to backplane type tested for 60 s @ 720V DC, inputs to backplane
Redundancy	False
SIL according to IEC 61508	None

Surrounding air temperature, max	65 °C
North American temperature code	T4
Relative humidity	5...95% noncondensing
Operating temperature	-20 to 65 °C
Nonoperating temperature	40 to 85 °C

IEC input compatibility	Type 3
Input filter time	ON to OFF: 8...10 ms AC/DC
Input impedance	0...3V, >4 KΩ, 3...12V, 3.5 KΩ minimum, 12...30V, >4 KΩ <10 KΩ

IEC input compatibility	Type 3
Input filter time	ON to OFF: 8...10 ms AC/DC
Input impedance	0...3V, >4 KΩ, 3...12V, 3.5 KΩ minimum, 12...30V, >4 KΩ <10 KΩ

Terminal base screw torque, max	0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
Shock	Operating: 25 g
Vibration	2.0 G @ 10…500 Hz
Mounting torque	0.2 nm

Drawings

Drawings
3D STP (STEP) Model	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
3D STP (STEP) Model Download (ZIP)
Product Drawing Drawing (DXF)

Documents

Installation Guide General
--

Product Cutsheet General
--

2080-um004_-en-e User Manual
2080-UM004

Micro800 Plug-in Modules User Manual User Manual
2080-UM002

General	Publication
Installation Guide	--
Product Cutsheet	--
User Manual	Publication
2080-um004_-en-e	2080-UM004
Micro800 Plug-in Modules User Manual	2080-UM002
