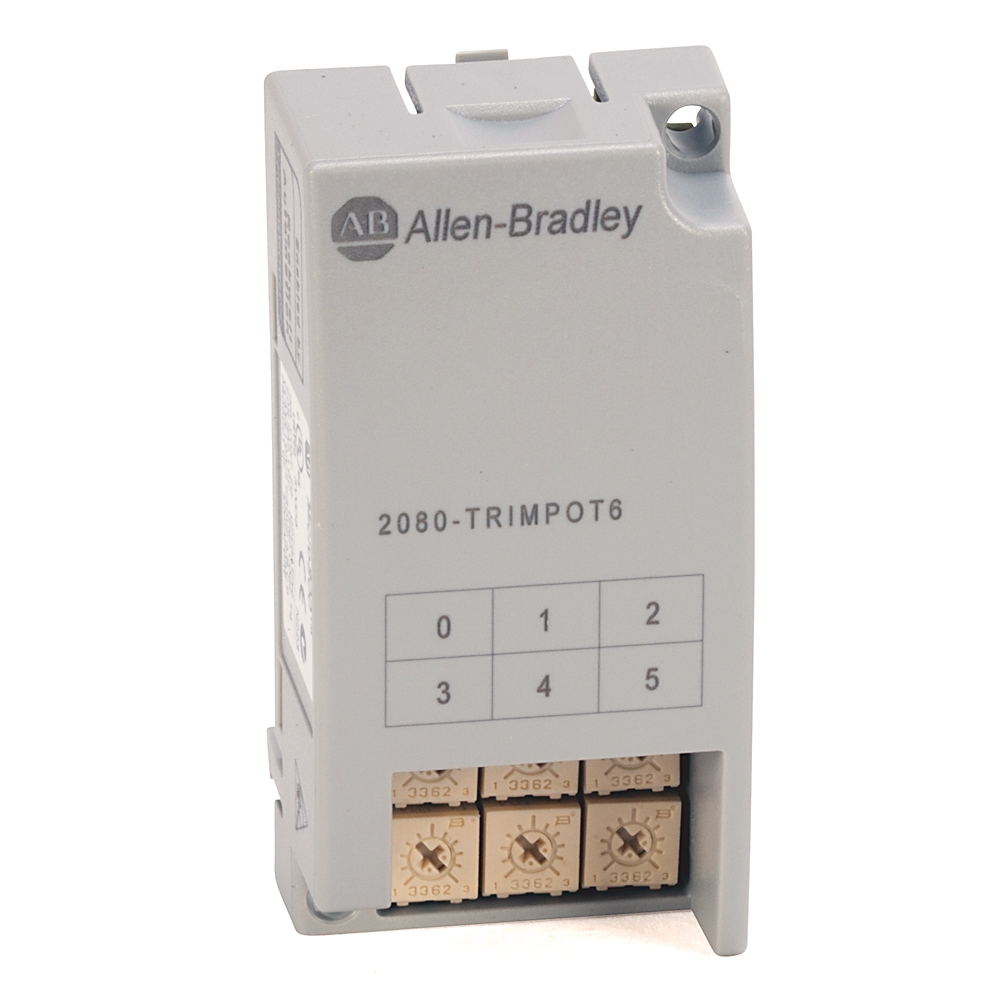

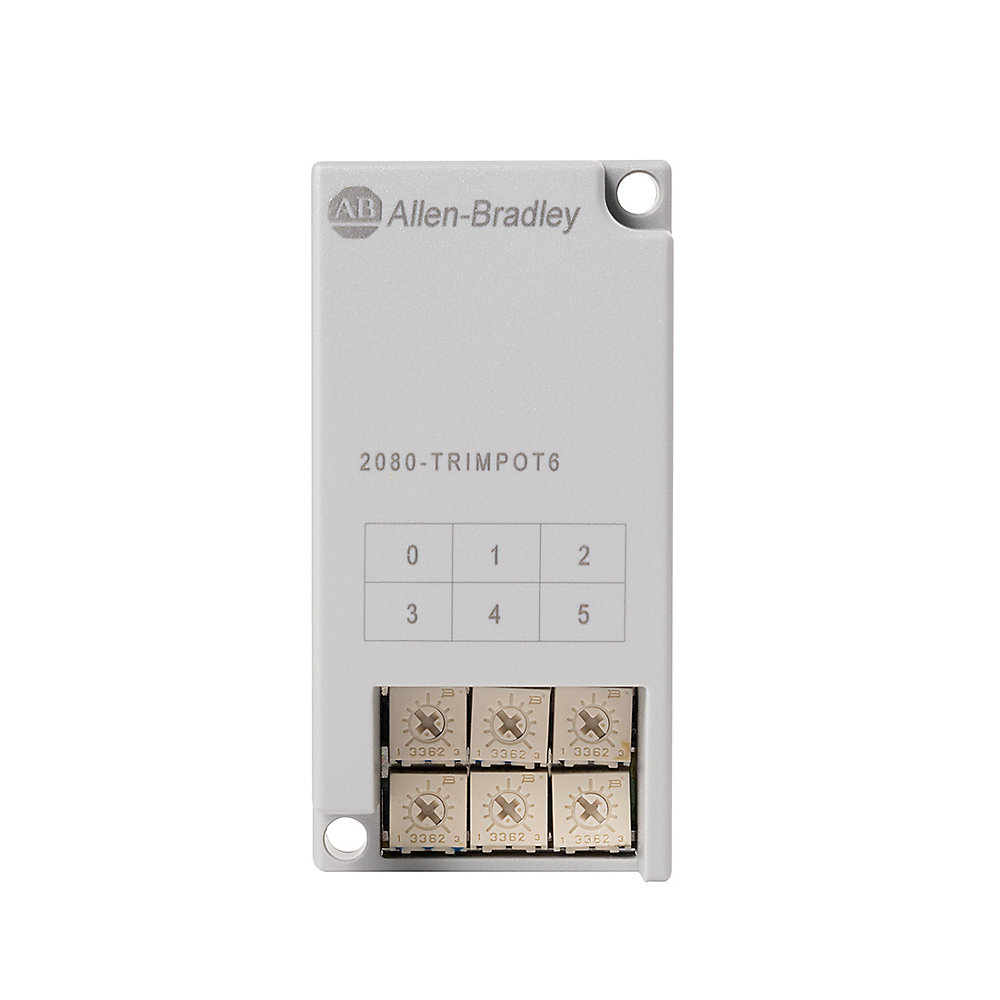

2080-TRIMPOT6

Micro800 6 Point Trim Pot Plug-In

Name: Micro800 6 Point Trim Pot Plug-In
Brand: Rockwell Automation
SKU: 2080-TRIMPOT6

Serial #:

Lifecycle status: Active

Description

2080 Micro800 System, 6-ch Trim Pot Analog Input

Product Details

Unique Product Identifier	2080-TRIMPOT6
UPC	885630058436
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	Singapore

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

I/O Status Indication	None
Temperature Rating	-20…65 °C (-4…149 °F)

Resolution of the analogue outputs	14 bit
Input, current	False
Input, voltage	False
Input, resistor	False
Input, resistance thermometer	False
Input, thermocouple	False
Input signal, configurable	False
Output, current	False
Output, voltage	False
Output signal configurable	False
Analogue inputs configurable	False
Analogue outputs configurable	False
Data range	0 to 255
Suitable for safety functions	False
SIL according to IEC 61508	None

Number of inputs	6-channel, Trimpot

Surrounding air temperature, max	65 °C
North American temperature code	T4
Emissions	CISPR 11 (IEC 61000-6-4): Class A
ESD immunity	IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
Relative humidity	IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
Operating temperature	-20...65 °C (-4...149 °F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
Radiated RF immunity	IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
Operating altitude	2000 m
Nonoperating temperature	-40...85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)

Vibration	IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
Shock	IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating
Mounting torque	0.2 nm

LCA Method	ISO 14040/44 compliant
Impact Assessment Method	EF 3.0 (Environmental Footprint) ESPR aligned
Database Used	Ecoinvent 3.10
Use Phase Electricity	European Average Grid Mix (EU-40)
Cradle To Grave	1.21E+01 kg CO2 eq
Cradle To Gate	4.40E+00 kg CO2 eq

The LCA model used to generate the sustainability results has been independently reviewed by a 3rd party in accordance with ISO 14071 and the EU Product Environmental Footprint (PEF) framework.

Environmental Compliance	See Details \| Submit Inquiry
SVHC Information	View Guidance

Drawings
3D STP (STEP) Model	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
3D STP (STEP) Model Download (ZIP)
Product Drawing Drawing (DXF)

General	Publication
Brochure	--
Product Cutsheet	--
Installation Guide	--
Wiring Diagram	--

User Manual	Publication
2080-um004_-en-e	2080-UM004
Micro800 Plug-in Modules User Manual	2080-UM002

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Visit the Technical Documentation Center Search the Literature Library

Bureau Veritas

This product was certified with the above certifications as of 2026-04-29. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	2080-TRIMPOT6
UPC	885630058436
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	Singapore

Electrical & Connectivity

I/O Status Indication	None
Temperature Rating	-20…65 °C (-4…149 °F)

Resolution of the analogue outputs	14 bit
Input, current	False
Input, voltage	False
Input, resistor	False
Input, resistance thermometer	False
Input, thermocouple	False
Input signal, configurable	False
Output, current	False
Output, voltage	False
Output signal configurable	False
Analogue inputs configurable	False
Analogue outputs configurable	False
Data range	0 to 255
Suitable for safety functions	False
SIL according to IEC 61508	None

Number of inputs	6-channel, Trimpot

Compliance & Environment

Surrounding air temperature, max	65 °C
North American temperature code	T4
Emissions	CISPR 11 (IEC 61000-6-4): Class A
ESD immunity	IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
Relative humidity	IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
Operating temperature	-20...65 °C (-4...149 °F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
Radiated RF immunity	IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
Operating altitude	2000 m
Nonoperating temperature	-40...85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)

Physical Characteristics

Vibration	IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
Shock	IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating
Mounting torque	0.2 nm

Sustainability

LCA Method	ISO 14040/44 compliant
Impact Assessment Method	EF 3.0 (Environmental Footprint) ESPR aligned
Database Used	Ecoinvent 3.10
Use Phase Electricity	European Average Grid Mix (EU-40)
Cradle To Grave	1.21E+01 kg CO2 eq
Cradle To Gate	4.40E+00 kg CO2 eq

The LCA model used to generate the sustainability results has been independently reviewed by a 3rd party in accordance with ISO 14071 and the EU Product Environmental Footprint (PEF) framework.

Environmental Compliance	See Details \| Submit Inquiry
SVHC Information	View Guidance
