2080-TC2

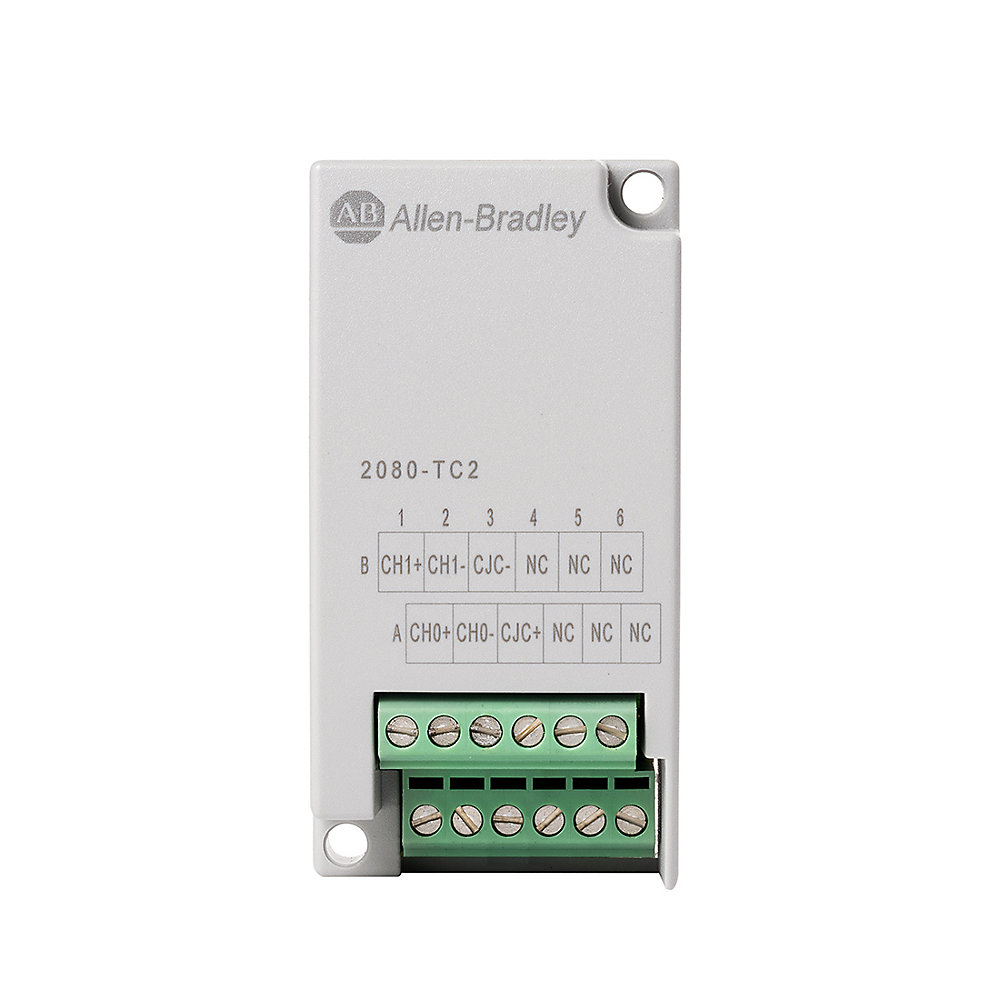

Micro800 2 Channel TC Plug-In
Serial #:
This product has not been verified. Please register your product to confirm authenticity.
Lifecycle status:
Active
Lifecycle status:
Active
Description
2080 Micro800 System, 2-ch Thermocouple Input (non-isolated)
Product Details
Look for SER on the product label to find your product series. To find information specific to your product, scan the QR code on the product label.
A
Overview
Electrical & Connectivity
Power & Electrical Characteristics
Inputs & Outputs (I/O)
Compliance & Environment
Standards & Protection
Physical Characteristics
Mechanical
Sustainability
Lifecycle Assessment
Substance Disclosures
Drawings
Documents
Certifications
Alternative Products
Technotes
| Unique Product Identifier |
2080-TC2
|
|---|---|
| UPC |
885630058467
|
| Estimated Lead Time |
5 days
|
| Standard Warranty Duration |
1 year See details |
| Country of Origin |
Singapore
|
The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.
| Number of analogue inputs |
2
|
|---|---|
| Resolution of the analogue inputs |
14 bit
|
| Resolution of the analogue outputs |
14 bit
|
| Input, current |
False
|
| Input, voltage |
False
|
| Input, resistor |
False
|
| Input, resistance thermometer |
False
|
| Input, thermocouple |
True
|
| Input signal, configurable |
False
|
| Output, current |
False
|
| Output, voltage |
False
|
| Output signal configurable |
False
|
| Analogue inputs configurable |
False
|
| Analogue outputs configurable |
False
|
| Type of electric connection |
Screw connection
|
| Normal mode rejection ratio |
70 dB @ 50/60 Hz
|
| Accuracy |
±1.0 °C @ 25 °C (77 °F)
|
| Wire size |
Solid: 0.14 mm2 AWG)...1.5 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum, Stranded: 0.14 mm2 AWG)...1.0 mm2 AWG) @ Rated @ 90 °C (194 °F) insulation maximum
|
| Open circuit detection time |
8 to 1515
|
| Suitable for safety functions |
False
|
| SIL according to IEC 61508 |
None
|
| Common mode rejection ratio |
100 dB @ 50/60Hz
|
| Thermocouple types supported |
J, K, N, T, E, R, S, B
|
| CJC error |
±1.2 °C @ 25 °C (77 °F)
|
| Input impedance |
>300 KΩ
|
|---|
| Surrounding air temperature, max |
65 °C
|
|---|---|
| North American temperature code |
T4
|
| Power consumption |
40mA @ 3.3V
|
| Emissions |
CISPR 11 (IEC 61000-6-4): Class A
|
| ESD immunity |
IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
|
| EFT/B immunity |
IEC 61000-4-4: ±2kV @ 5kHz on shielded ports
|
| Conducted RF immunity |
IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
|
| Surge transient immunity |
IEC 61000-4-5: ±2 kV line-earth(CM) on shielded ports
|
| Operating temperature |
-20...65 °C (-4...149 °F): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
|
| Radiated RF immunity |
IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
|
| Nonoperating temperature |
-40...85 °C (-40...185 °F), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
|
| Vibration |
IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
|
|---|---|
| Shock |
IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating
|
| Mounting torque |
0.2 nm
|
| Terminal screw torque |
0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
|
| LCA Method |
ISO 14040/44 compliant
|
|---|---|
| Impact Assessment Method |
EF 3.0 (Environmental Footprint) ESPR aligned
|
| Database Used |
Ecoinvent 3.10
|
| Use Phase Electricity |
European Average Grid Mix (EU-40)
|
| Cradle To Grave |
8.97E+00 kg CO2 eq
|
| Cradle To Gate |
2.48E+00 kg CO2 eq
|
| Content of Recycled Product Material |
0.01%
|
The LCA model used to generate the sustainability results has been independently reviewed by a 3rd party in accordance with ISO 14071 and the EU Product Environmental Footprint (PEF) framework.
| Environmental Compliance | |
|---|---|
| SVHC Information | |
| Environmental Compliance | |
| SVHC Information |
