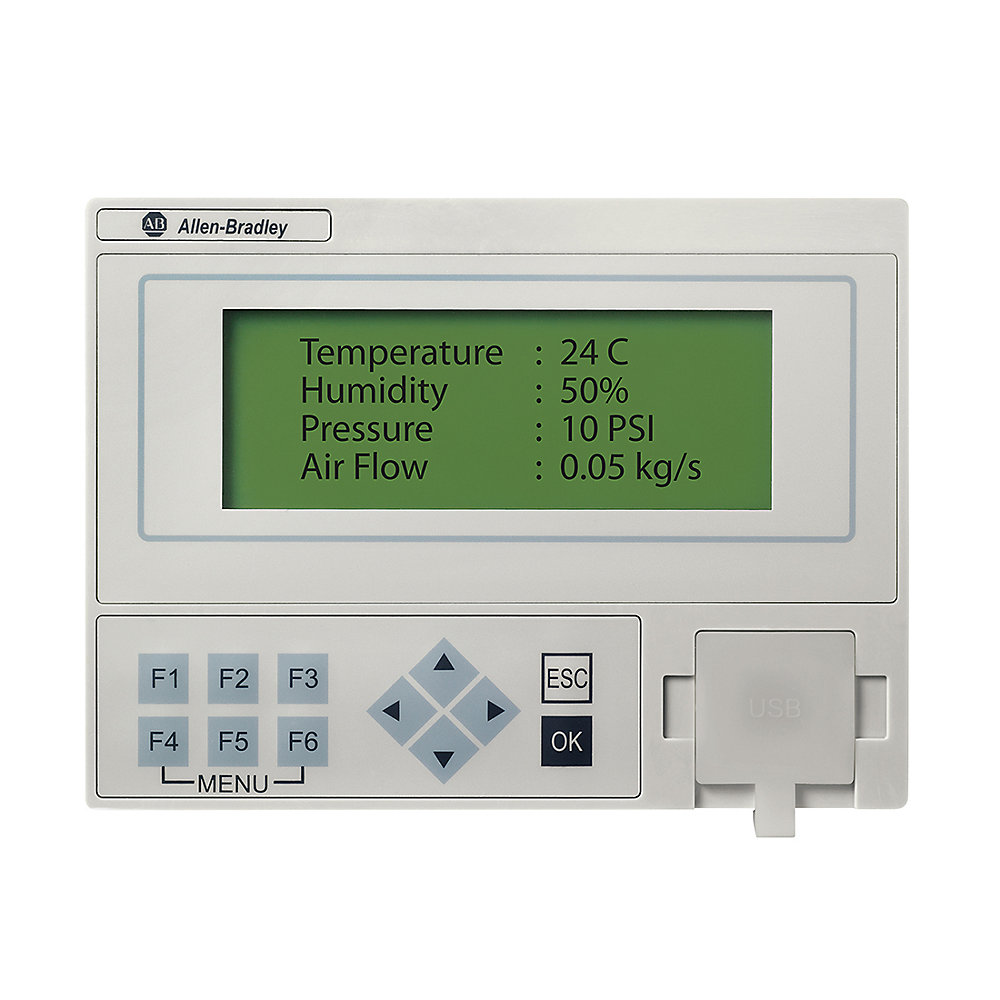

| Depth |
36
|
|---|---|
| Height |
97
|
| Temperature Rating |
0…50 °C (32…122 °F)
|
| Width |
130 mm
|
|---|---|
| Height |
97 mm
|
| With mounting set |
False
|
| Depth |
35.5 mm
|
| Mounting method |
DIN rail mounting
|
| Display height |
48 mm
|
| Display width |
106.5 mm
|
| Weight, approx |
405 g (0.89 lb) - includes packaging weight
|
| Number of pixels, vertical |
64
|
|---|---|
| Number of pixels, horizontal |
192
|
| Backlight |
25000 hr @ 25 °C, LED, tricolor backlight (RGB)
|
| Operator input |
Tactile keys (function keys, arrow keys, ESC and OK keys)
|
| Voltage type |
DC
|
| With PC connection |
False
|
| Communication medium fibre optic |
False
|
| Communication medium wireless |
False
|
| Option for configuring controller |
True
|
| Communication medium copper |
True
|
| Power consumption, max |
1.5 W
|
| Wire type |
Copper
|
| Input supply voltage |
12V/24V DC ±10%
|
| Input supply current, max |
90mA @ 12V, 60mA @ 24V
|
| Wiring category |
3 - on power ports, 3 - on communication port
|
| Programming port |
USB to serial converter for progming the controller
|
| Wire size |
Single-wire gauge: 0.14...1.5 mm2 (26...16 AWG) rated @ 90 °C (194 °F), Dual-wire gauge: 0.14...0.75 mm2 (26...18 AWG) rated @ 90 °C (194 °F)
|
| North American temperature code |
T4
|
|---|---|
| Explosion-proof |
False
|
| Enclosure type rating |
Meets IP65 (when front panel mounted)
|
|---|
| Drawings | |
|---|---|
| 3D STP (STEP) Model | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STP (STEP) Model Download (ZIP) |
| Product Drawing Drawing (DXF) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Installation Guide | -- |
| General | Product Cutsheet | -- |
| User Manual | 2080-um004_-en-e | 2080-UM004 |
| User Manual | Micro800 Plug-in Modules User Manual | 2080-UM002 |
