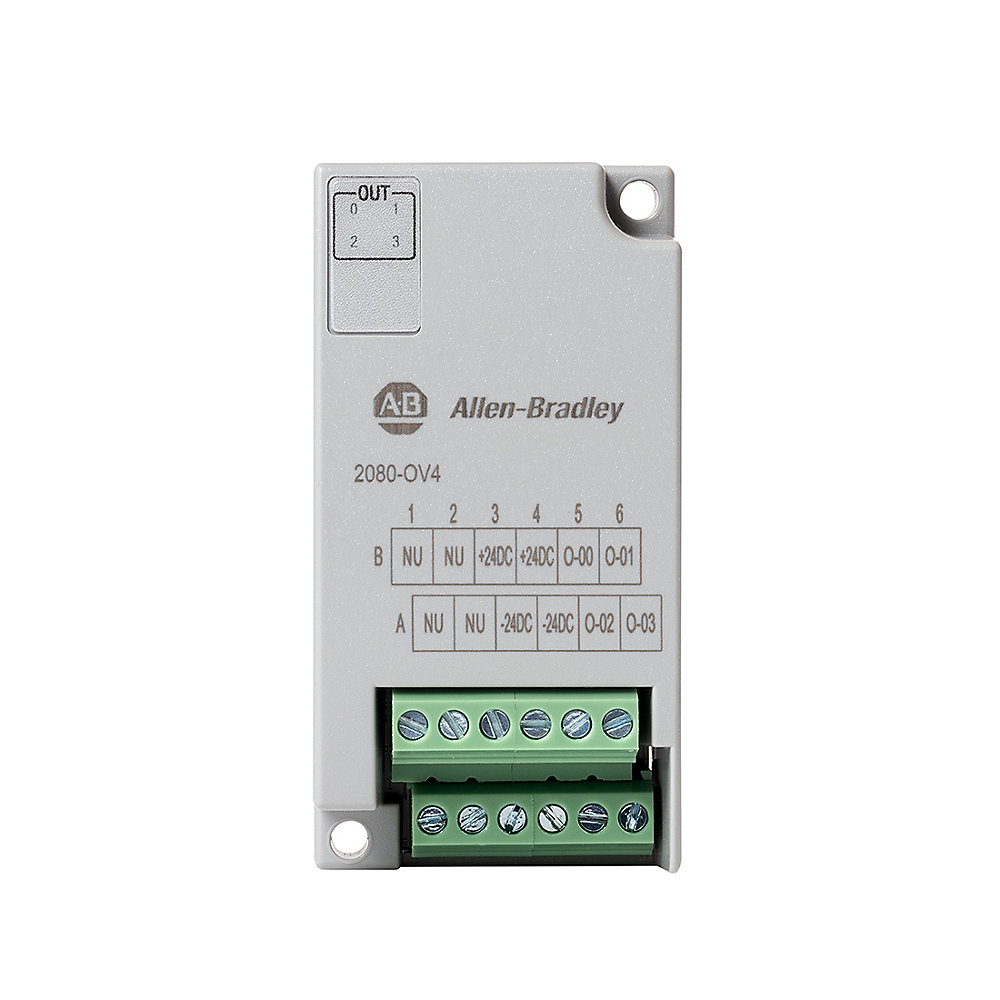

| Consist Of |
Screws
|
|---|---|
| I/O Isolation |
None
|
| Output |
4 Point, 12/24V Dc, Sink
|
| Temperature Rating |
-20…65 °C (-4…149 °F)
|
| Digital inputs configurable |
False
|
|---|---|
| Digital outputs configurable |
False
|
| Type of voltage (input voltage) |
DC
|
| Type of output voltage |
DC
|
| Type of digital output |
Transistor
|
| Type of electric connection |
Screw connection
|
| Status indicator |
4 yellow
|
| Number of I/O |
4 (sink outputs)
|
| ON-state current, max |
Steady state: 0.5A @ 2A, surge for 2 s, minimum
|
| Wire size |
0.2... 2.5 mm2 (24...12 AWG) solid or stranded copper wire rated @ 90 °C (194 °F), or greater, insulation maximum
|
| Isolation voltage |
50V (continuous), basic insulation type, inputs to outputs, I/Os to backplane type tested for 60 s @ 720V DC, I/Os to backplane
|
| Redundancy |
False
|
| SIL according to IEC 61508 |
None
|
| Power supply voltage |
10.8V DC, minimum, 30V DC, maximum
|
| Surrounding air temperature, max |
65 °C
|
|---|---|
| North American temperature code |
T4
|
| Relative humidity |
5...95% noncondensing
|
| Operating temperature |
-20 to 65 °C
|
| Nonoperating temperature |
40 to 85 °C
|
| ON-state voltage, max |
30V DC
|
|---|---|
| On-state voltage, min |
10V DC
|
| On-state voltage, nom |
24V DC
|
| On-state current, min |
5.0mA @ 10V DC
|
| Off-state leakage current, max |
10 µA
|
|---|
| Terminal base screw torque, max |
0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
|
|---|---|
| Shock |
Operating: 25 g
|
| Vibration |
2.0 G @ 10…500 Hz
|
| Mounting torque |
0.2 nm
|
| Explosion safety category for gas |
None
|
|---|---|
| Explosion safety category for dust |
None
|
| Drawings | |
|---|---|
| 3D STP (STEP) Model | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STP (STEP) Model Download (ZIP) |
| Product Drawing Drawing (DXF) |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Installation Guide | -- |
