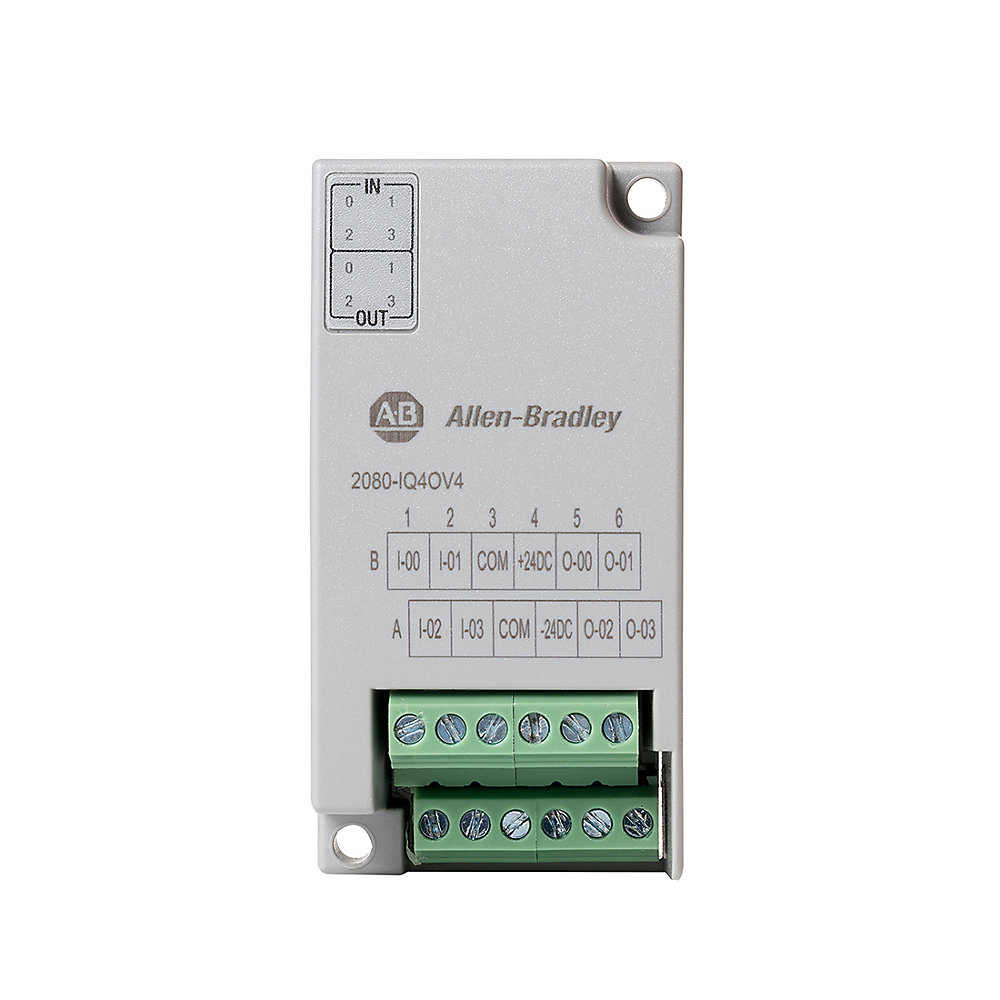

| Consist Of |
Screws
|
|---|---|
| I/O Isolation |
None
|
| I/O Status Indication |
LED
|
| Output |
4 Point, 12/24V DC, Sink
|
| Number of digital inputs |
4
|
|---|---|
| Number of digital outputs |
4
|
| Digital inputs configurable |
False
|
| Digital outputs configurable |
False
|
| Type of voltage (input voltage) |
AC/DC
|
| Type of output voltage |
DC
|
| Type of digital output |
Transistor
|
| Type of electric connection |
Screw connection
|
| Status indicator |
8 yellow
|
| On-state voltage, output |
24V DC nominal
|
| On-state current, output |
Steady state: 0.5 A maximum
|
| Number of I/O |
4 channel inputs/sink outputs combination
|
| ON-state current, max |
5 mA
|
| On-state current, nom |
3.0mA @ 24V DC
|
| Wire size |
0.2... 2.5 mm2 (24...12 AWG) solid or stranded copper wire rated @ 90 °C (194 °F), or greater, insulation maximum
|
| Isolation voltage |
50V (continuous), basic insulation type, inputs to outputs, I/Os to backplane type tested for 60 s @ 720V DC, I/Os to backplane
|
| Redundancy |
False
|
| SIL according to IEC 61508 |
None
|
| Power supply voltage |
10.8V DC, minimum, 30V DC, maximum
|
| Surrounding air temperature, max |
65 °C
|
|---|---|
| North American temperature code |
T4
|
| Relative humidity |
5...95% noncondensing
|
| Operating temperature |
-20 to 65 °C
|
| Nonoperating temperature |
40 to 85 °C
|
| IEC input compatibility |
Type 3
|
|---|---|
| Input filter time |
ON to OFF: 8...10 ms AC/DC
|
| Input impedance |
0...3V, >4 KΩ, 3...12V, 3.5 KΩ minimum, 12...30V, >4 KΩ <10 KΩ
|
| IEC input compatibility |
Type 3
|
|---|---|
| Input filter time |
ON to OFF: 8...10 ms AC/DC
|
| Input impedance |
0...3V, >4 KΩ, 3...12V, 3.5 KΩ minimum, 12...30V, >4 KΩ <10 KΩ
|
| Off-state leakage current, max |
10 µA
|
|---|
| Terminal base screw torque, max |
0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
|
|---|---|
| Shock |
Operating: 25 g
|
| Vibration |
2.0 G @ 10…500 Hz
|
| Mounting torque |
0.2 nm
|
| Explosion safety category for gas |
None
|
|---|---|
| Explosion safety category for dust |
None
|
| Drawings | |
|---|---|
| 3D STP (STEP) Model | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 3D STP (STEP) Model Download (ZIP) |
| Product Drawing Drawing (DXF) |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
