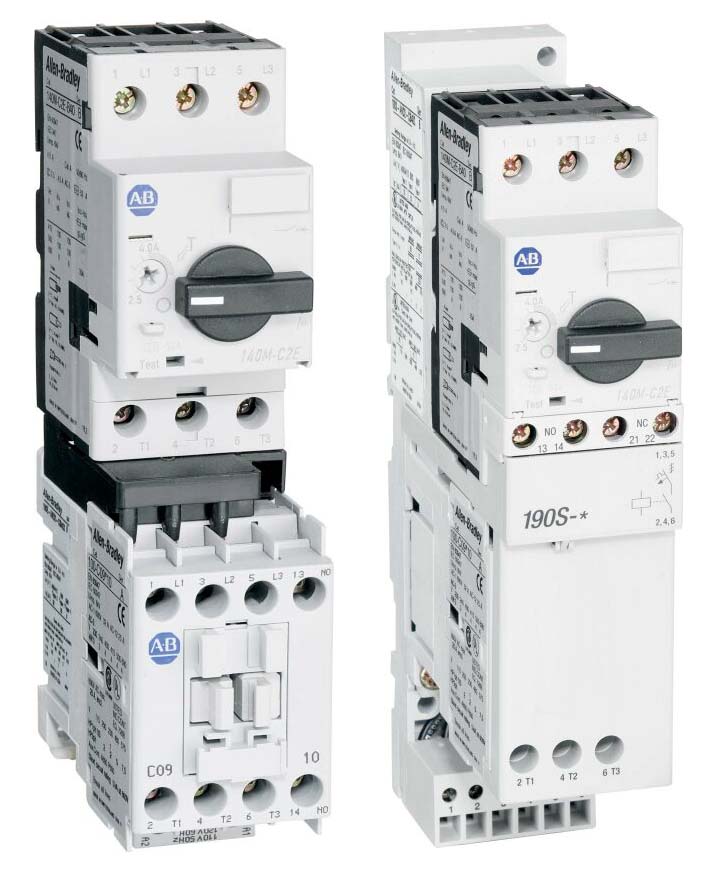

190S-ENJ3-FC32C

23-32 A Compact Comb Starter W/Ckt-Bkr

Name: 190S-ENJ3-FC32C
Brand: Rockwell Automation

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of June 16, 2022, the 23-32 A Compact Comb Starter W/Ckt-Bkr will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: June 16, 2022 Replacement Category: Direct Replacement

Lifecycle status: Discontinued

Discontinued Date: June 16, 2022 Replacement Category: Direct Replacement

Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Voltage type for actuating	AC
With short-circuit release	True
Rated control supply voltage at AC 60 Hz	24 V
Overload release current setting	23 A
Type of motor starter	Direct online starter (DOL)
Contactor size	100-C30
Style	Open type
Circuit breaker auxiliary and trip contacts for 140M	Internal 140M auxiliary contact 1 NO + 1 NC
Short-circuit current as a UL508/CSA motor controller in group motor installations (Type 1 coordination), max	65kA @ 480V AC, (with F-frame, 100-C/104-C contactors)
Short-circuit current as a UL508/CSA motor controller in group motor installations (Type 2 coordination), max	65kA @ 480V AC, (with F-frame, 100-C/104-C contactors)
Fuse or circuit breaker per NEC, max	600 A @ F-Frame with Bulletin 100-C/104-C Contactors
Modifications, accessories	140M auxiliary contact, side mount, 2 NC
Hp ratings as a UL508/CSA motor controller in group motor installations	7.5…10Hp @ 200V AC, 60 Hz (with F-frame, 100-C/104-C contactors)
kW ratings as a IEC for standard motor, 1500 rpm, max	7.5 kW @ 230V AC @ 50Hz (with F-frame, 100-C/104-C contactors)
Short-circuit current as a IEC (Type 1 coordination), max	50kA @ 690V AC, (with F-frame, 100-C/104-C contactors)
Short-circuit current as a UL508/CSA Type F combination motor controller (Type 1 coordination), max	65 kA @ 480Y/277V AC, (with F-frame, 100-C/104-C contactors and spacing adapter)
Short-circuit current as a UL508/CSA Type F combination motor controller (Type 2 coordination), max	65 kA @ 480Y/277V AC, (with F-frame, 100-C/104-C contactors and spacing adapter)
Short-circuit current as a UL508/CSA self-protected Type E combination motor controller, max	65 kA @ 480Y/277V AC, (with F-frame, 100-C/104-C contactors and spacing adapter)
Short-circuit current as a IEC (Type 2 coordination), max	50kA @ 690V AC, (with F-frame, 100-C/104-C contactors)
Hp ratings as a UL508/CSA Type F combination motor controller	7.5…10Hp @ 200V AC, 60 Hz (with F-frame, 100-C/104-C contactors and spacing adapter)
Hp ratings as a UL508/CSA self-protected Type E combination motor controller	7.5…10Hp @ 200V AC, 60 Hz (with F-frame, 100-C/104-C contactors and spacing adapter)
Type of electrical connection of main circuit	Screw connection
Type of electrical connection for auxiliary- and control current circuit	Screw connection

Width	54 mm
Height	238 mm
Depth	198.5 mm

Circuit breaker frame size	140M-F8E high break plus
