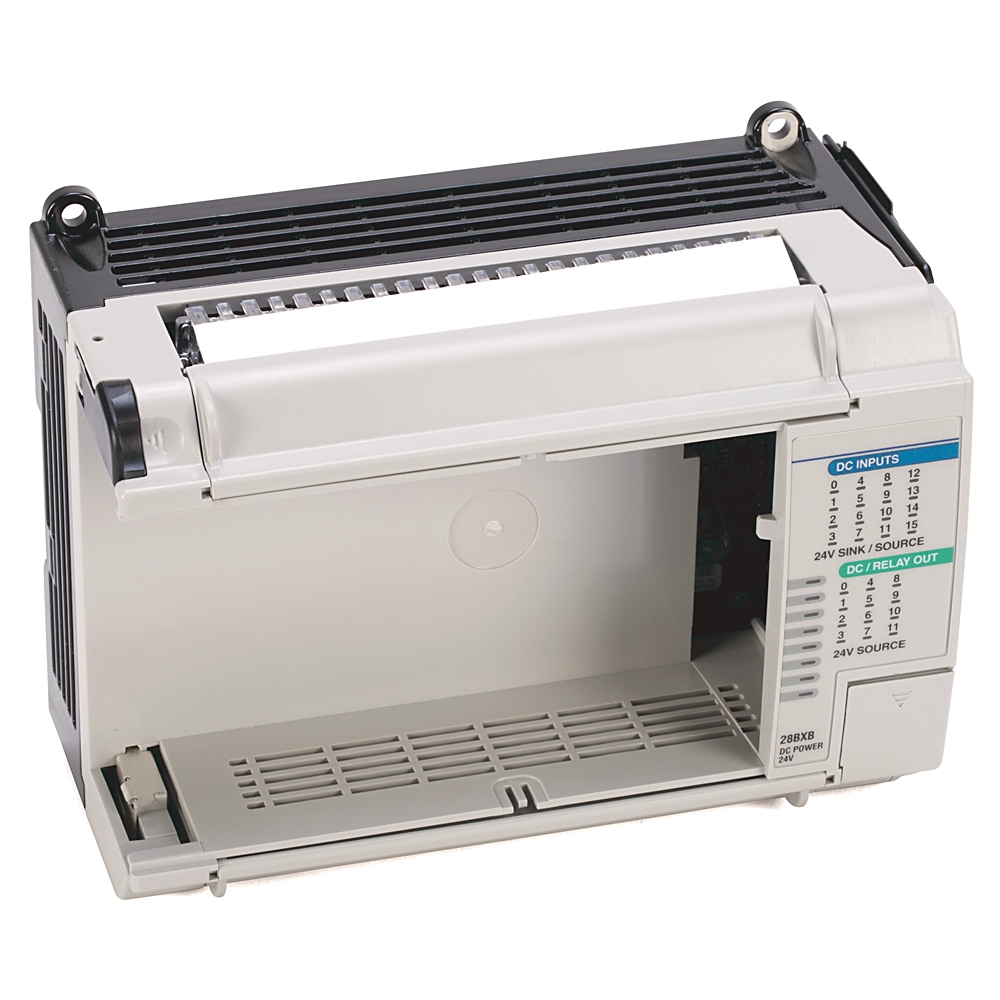

1764-28BXB
MicroLogix 1500 28 Point Controller
Rockwell Automation announces that as of June 14, 2017, the MicroLogix 1500 28 Point Controller will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
June 14, 2017
Replacement Category:
Functional Replacement
Rockwell Automation announces that as of June 14, 2017, the MicroLogix 1500 28 Point Controller will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
June 14, 2017
Replacement Category:
Functional Replacement
| base units | MicroLogix 1500 Base DC In / DC FET & Relay Out / DC Power |
|---|---|
| Class | Controller |
| Depth | 87 |
| Height | 138 |
| Input Signal | 24V DC |
| Interface | RS-232C Port |
| Number Of Channels | 16 I/P, 12 O/P |
| Output | 6 relay - 6x24V DC |
| Output Signal | (6) Relay and (6) 24V DC FET |
| Power Supply | 120/240V AC |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| base units | MicroLogix 1500 Base DC In / DC FET & Relay Out / DC Power |
|---|---|
| Class | Controller |
| Depth | 87 |
| Height | 138 |
| Input Signal | 24V DC |
| Interface | RS-232C Port |
| Number Of Channels | 16 I/P, 12 O/P |
| Output | 6 relay - 6x24V DC |
| Output Signal | (6) Relay and (6) 24V DC FET |
| Power Supply | 120/240V AC |
