1761-L16AWA

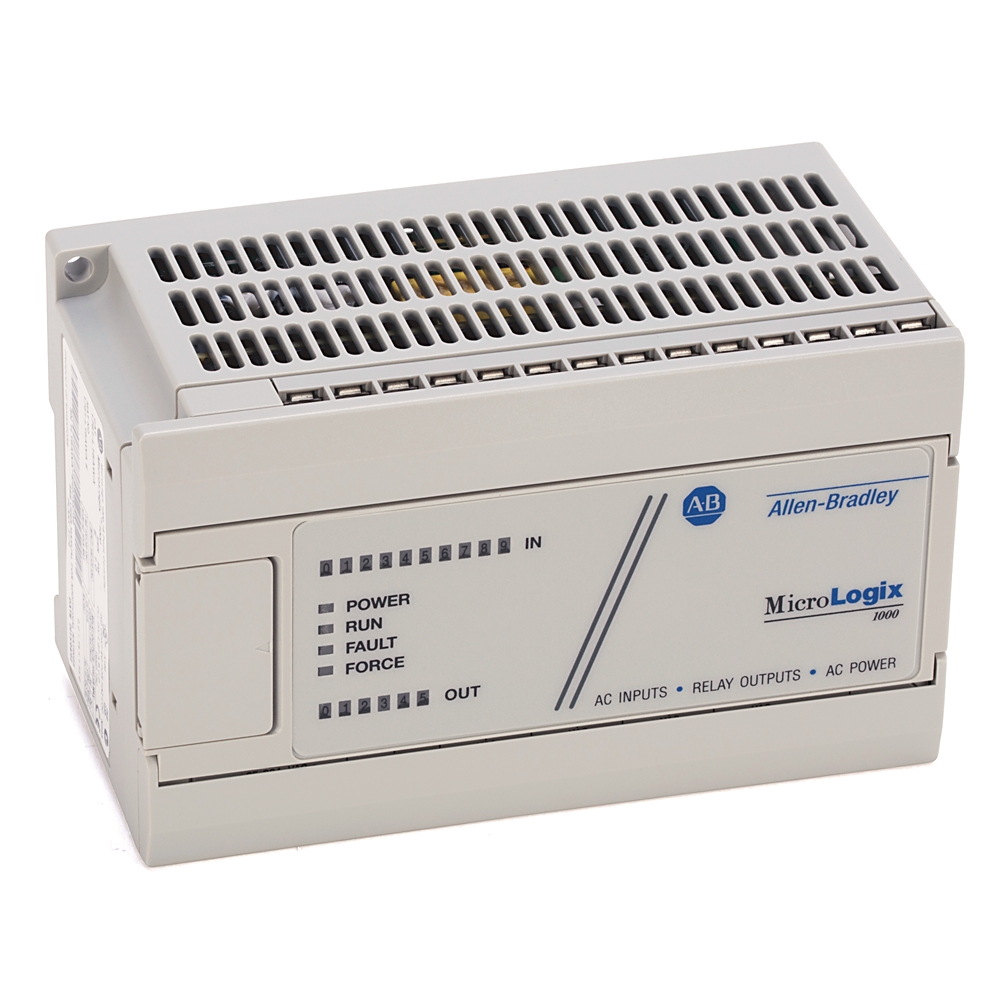

MicroLogix 1000 16 Point Controller

Lifecycle status: Discontinued

Rockwell Automation announces that as of June 30, 2017, the MicroLogix 1000 16 Point Controller will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: June 30, 2017 Replacement Category: Engineering Replacement

Lifecycle status: Discontinued

Discontinued Date: June 30, 2017 Replacement Category: Engineering Replacement

Get Support

Class	Controller
Communication	DF1
Controller	MicroLogix 1000, 120/240V ac power, (10) 120V ac digital inputs, (6) relay outputs
Depth	73
Height	80
Input Signal	120V AC
Interface	RS-232
Memory	1KB
Number Of Channels	10 I/P, 6 O/P
Output	6 relay
Output Signal	Relay
Power Supply	120/240V AC

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Technical Specifications

Class	Controller
Communication	DF1
Controller	MicroLogix 1000, 120/240V ac power, (10) 120V ac digital inputs, (6) relay outputs
Depth	73
Height	80
Input Signal	120V AC
Interface	RS-232
Memory	1KB
Number Of Channels	10 I/P, 6 O/P
Output	6 relay
Output Signal	Relay
Power Supply	120/240V AC
