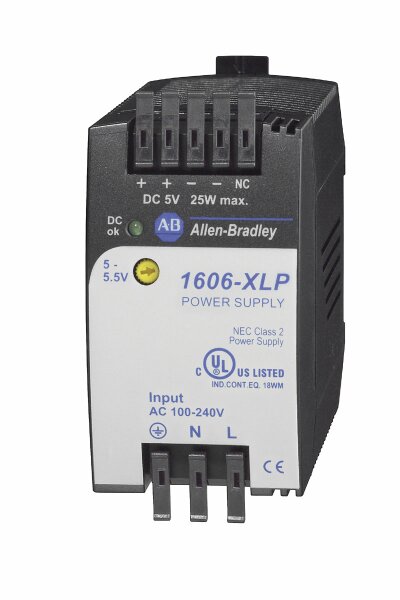

Power Supply XLP
|
|---|
| Height |
75 mm
|
|---|---|
| Depth |
91 mm
|
| Direct mounting possible |
False
|
| Width |
45 mm
|
| Degree of protection (IP) |
IP20
|
| Type of electric connection |
Screw connection
|
| Shock |
30 G, 6 ms 20G, 11 ms
|
| Special functions |
No special function
|
| MTBF |
600000 hr @ 40 °C, SN 29500
|
| Wall mounting possible |
True
|
| Degree of protection (NEMA) |
Other
|
| Vibration |
2 g
|
| Secondary voltage adjustable |
True
|
|---|---|
| Power output |
25 W
|
| Voltage type of supply voltage |
AC/DC
|
| Rated supply voltage at DC |
85 V
|
| Efficiency, typ |
80 %
|
| Adjustment range |
5 V
|
| Operational range |
85...264V AC
|
| Rated output current |
5A @ 5.1V
|
| Phases |
1-phase
|
| Sub group |
Compact family
|
| Hold-up time |
>19 ms @ 100V AC
|
| Input voltage |
100…240V AC
|
| Special family function |
No power boost
|
| Rated input current |
<0.5A @ 100V AC
|
| Special feature |
-
|
| Output voltage stabilized |
True
|
| Rail mounting possible |
True
|
| Stabilized |
True
|
| Ripple and noise, max |
50 mV
|
|---|---|
| Operating temperature |
-10 °C
|
| Storage temperature |
-40 °C
|
| Relative humidity |
5 to 95 %
|
| Weight |
240 g
|
|---|
