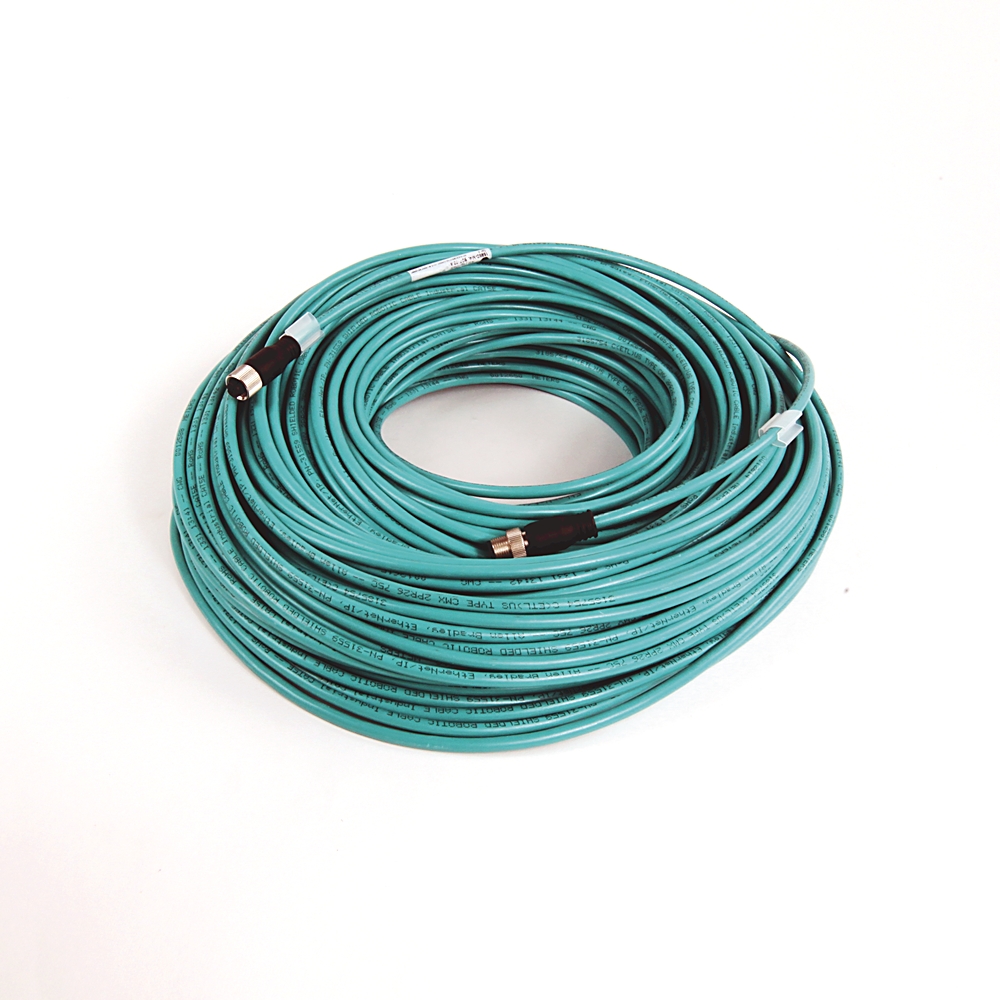

| Construction |
Standard
|
|---|---|
| Data Transfer Rate |
100BASE-TX, 100 Mbit/s
|
| First End Connector |
Micro D-Code, QD Style
|
| First End Description |
Straight Male
|
| Number Of Conductors |
4 conductors (2-pair)
|
| Second End Connector |
Micro Style QD, (D-code QD)
|
| Second End Description |
Straight Female
|
| Category |
6
|
|---|---|
| Length |
7.7 m
|
| Type of connector connection 1 |
M12
|
| Cable outer diameter |
5.84 mm
|
| Length, approx |
47 mm
|
| Crossover |
Standard
|
| Number of conductors |
4 conductors (2-pair)
|
| Secondary end connector |
Micro style QD, (D-code QD)
|
| Cable type |
Teal, foil and braided shield, halogen-free PUR, high-flex, 26 AWG
|
| Material |
Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass
|
| Material connector housing, connection 1 |
Plastic
|
| Special characteristic |
Standard
|
| Mounting |
Front-mount
|
| Bend radius |
10 x cable diam
|
| AWG-size |
26 AWG
|
|---|---|
| Voltage |
300 V
|
| Cable bandwidth |
100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring
|
| Cable rating |
C (ETL) US TYPE CMX, TIA 568B
|
| Degree of protection (IP) |
IP67
|
|---|---|
| Operating temperature |
'-40 to 75 °C
|
| Second end description |
Straight female
|
|---|---|
| First end description |
Straight male
|
| Drawings | |
|---|---|
| 3-Dimensional STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3-Dimensional STEP Model (STP) Download (ZIP) |
| General | Publication |
|---|---|
| Product Cutsheet | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- CE
This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Construction |
Standard
|
|---|---|
| Data Transfer Rate |
100BASE-TX, 100 Mbit/s
|
| First End Connector |
Micro D-Code, QD Style
|
| First End Description |
Straight Male
|
| Number Of Conductors |
4 conductors (2-pair)
|
| Second End Connector |
Micro Style QD, (D-code QD)
|
| Second End Description |
Straight Female
|
| Category |
6
|
|---|---|
| Length |
7.7 m
|
| Type of connector connection 1 |
M12
|
| Cable outer diameter |
5.84 mm
|
| Length, approx |
47 mm
|
| Crossover |
Standard
|
| Number of conductors |
4 conductors (2-pair)
|
| Secondary end connector |
Micro style QD, (D-code QD)
|
| Cable type |
Teal, foil and braided shield, halogen-free PUR, high-flex, 26 AWG
|
| Material |
Coupling nut: Nickel-plated brass, housing: polyurethane (PUR), contact: Gold-plated brass
|
| Material connector housing, connection 1 |
Plastic
|
| Special characteristic |
Standard
|
| Mounting |
Front-mount
|
| Bend radius |
10 x cable diam
|
| AWG-size |
26 AWG
|
|---|---|
| Voltage |
300 V
|
| Cable bandwidth |
100BASE-TX, 100 Mbit/s, IEEE 802.3 fast ethernet over copper wiring
|
| Cable rating |
C (ETL) US TYPE CMX, TIA 568B
|
| Degree of protection (IP) |
IP67
|
|---|---|
| Operating temperature |
'-40 to 75 °C
|
| Second end description |
Straight female
|
|---|---|
| First end description |
Straight male
|
