1494U-R30-C3-PC-S

Disconnect Kits

Name: Disconnect Kits
Brand: Rockwell Automation
SKU: 1494U-R30-C3-PC-S

Serial #:

Lifecycle status: Active

Product at a glance

Build America, Buy America

Lifecycle status: Active

Product at a glance

Build America, Buy America

Description

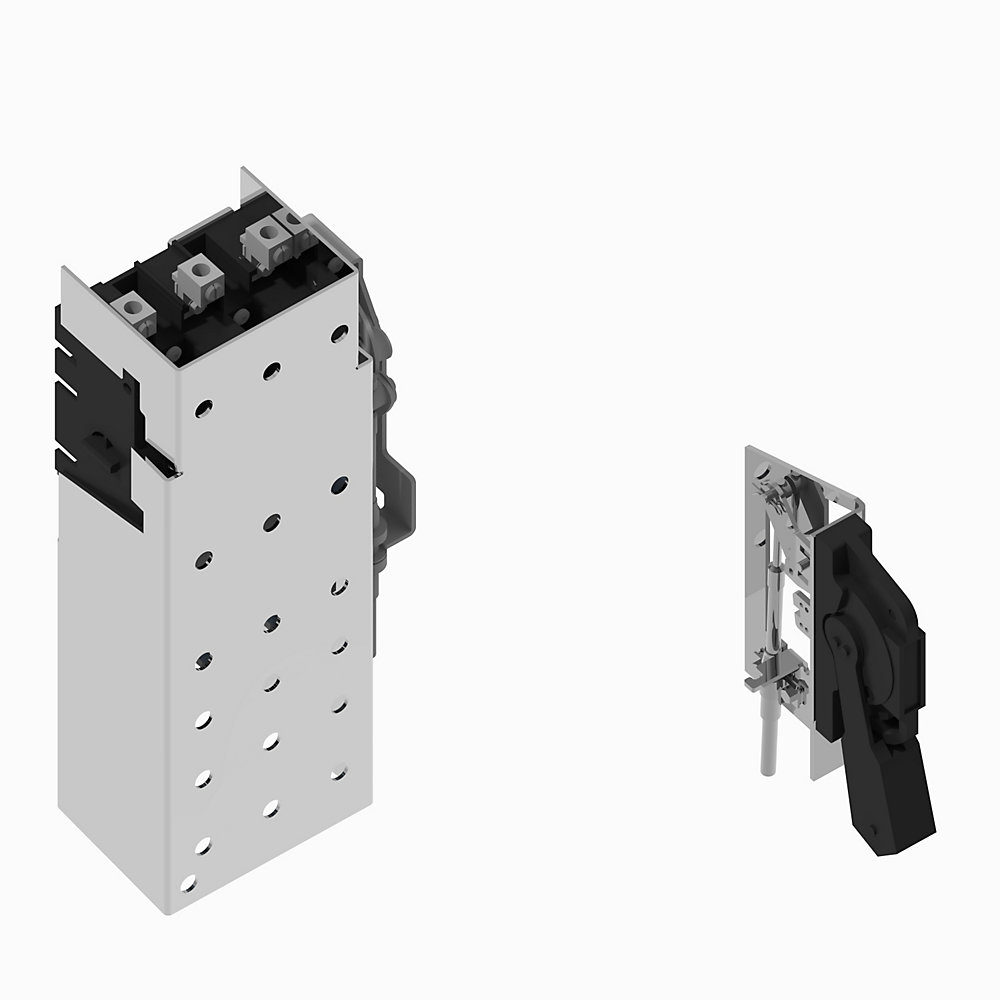

1494U Disconnect Switch Rod or Cable Operated, 30AClass R clips, 600V, 30 A Fusible switch, 30 A clips, Cable length - 3 ft, Stainless handle, Protective cover - for line and load

Unique Product Identifier	1494U-R30-C3-PC-S
UPC	887172849855
Estimated Lead Time	21 days
Country of Origin	Mexico

Number of poles	3
Rated permanent current Iu	30 A
Max. rated operation voltage Ue AC	600 V
Type of control element	Long turning handle
Switching frequency, max	6 ops/m
Continuous current rating	30 A
Number of switches	1
Motor drive optional	False
Voltage release optional	False
Type of electrical connection of main circuit	Screw connection
Switch and fuse rating (fusing)	600V @ 30A switch, 30 A Type R fuse clips
Short circuit withstand capability	200000A @ 600V AC, with class J or class R fuses
KW rating, max	5.5 kW @ 220...240V AC, 3-phase, 50 Hz per IEC (AC23)
Hp rating, max	7.5Hp @ 230V AC, 3-phase, 60 Hz per UL and CSA
Auxiliary contact electrical ratings	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC
Electrical interlock ratings	Standard contact 2 NO: 10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
With pre-assembled cabling	False
Dielectric strength	2200V @ 1min
Operating handle style	Knife switch style handle

Interlockable	True
Recommended torque	Switch side: 45 in-lb
Version as main switch	True
Factory option	Stainless Steel handle
Mechanical life operations	10000
Degree of protection	Operating handles: Stainless Steel Type 4, 4X
Material	Switches, mechanisms and accessory kits: Zinc-plated Steel, RoHS compliant finish

Width	6.81 in
Device construction	Built-in device fixed built-in technique
Height	8.58 in
Depth	3.63 in
Conductor size	Single Port copper lug: 16 AWG @ copper conductor

Altitude	2000 m (6562 ft) per IEC 947-1
Ambient temperature	Storage: -40...65 °C (-40...149 °F)
Relative humidity	90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1

General	Publication
Product Cutsheet	--

Technical Data	Publication
1494-td002_-en-p	1494-TD002
