1494U-N100-C3-N

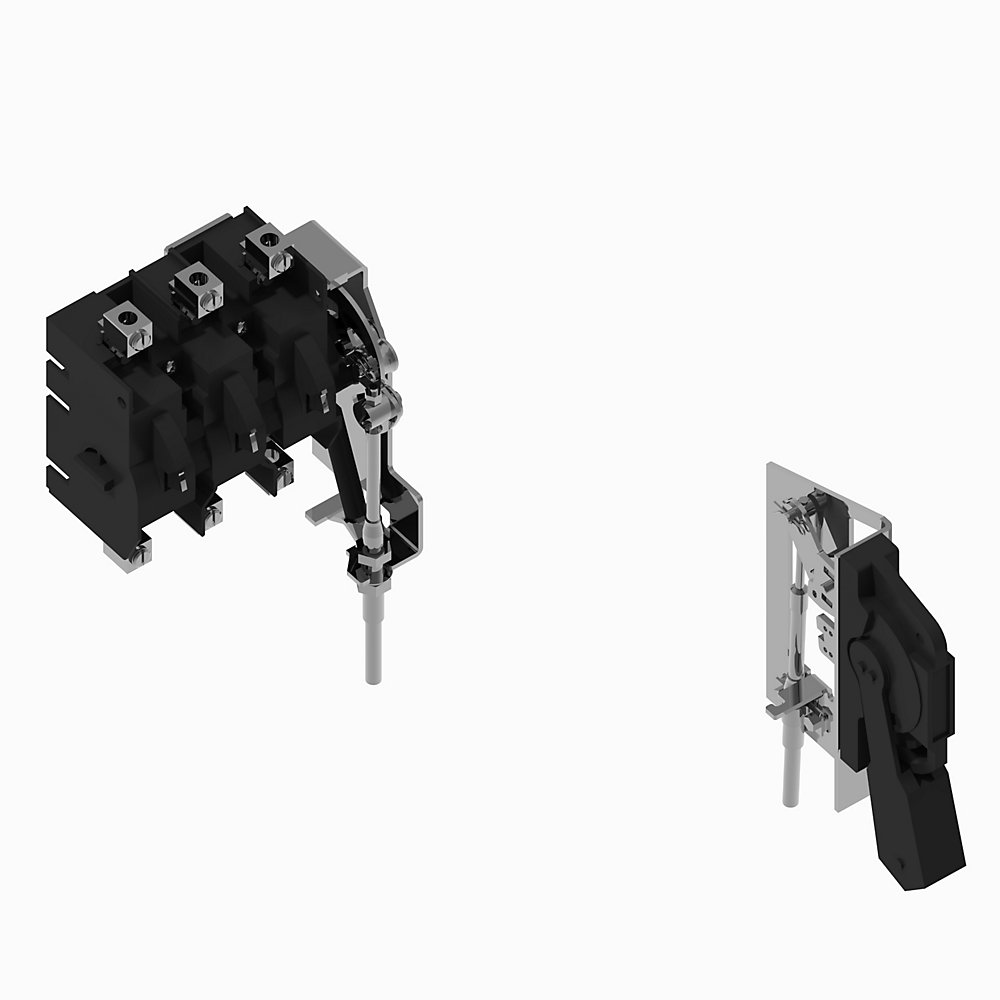

100A switch Disconnect Kits

Name: 100A switch Disconnect Kits
Brand: Rockwell Automation
SKU: 1494U-N100-C3-N

Serial #:

Lifecycle status: Active

Description

1494U Disconnect Switch Rod or Cable Operated, 100ANon-fusible, 100 A Non-fusible switch, Cable length - 3 ft, Non-metallic handle

Lifecycle status: Active

Description

1494U Disconnect Switch Rod or Cable Operated, 100ANon-fusible, 100 A Non-fusible switch, Cable length - 3 ft, Non-metallic handle

Unique Product Identifier	1494U-N100-C3-N
UPC	887172852350
Estimated Lead Time	30 days
Standard Warranty Duration	1 year See details
Country of Origin	Mexico

Altitude	2000 m (6562 ft) per IEC 947-1
Ambient temperature	Storage: -40...65 °C (-40...149 °F)
Relative humidity	90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1

Connection type	Switch body : glass-filled thermoplastic
Efficiency	-20
Flicker	10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
Fuse block option	55 kW @ 500...600V AC, 3-phase, 50 Hz
Hold-up time	-40
Individual harmonics (DC-127th)	50Hp @ 600V DC per UL and CSA
Interharmonics	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA min per IEC
LED status	10000
Level-5 lens color	2000 m per IEC 947-1
NEMA rating designation	100A @ 250/600V DC
Operating distance	2200V @ 1min
Operational range	10000A @ 600V AC/DC : unfused or with class H fuses
Power losses	10
Rated input current	Lug to terminal : 90 in-lb
Rated output current	100 A switch, non-fusible
Special family function	6
Special product function	Knife switch style handle
Spot size	90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1
Sub group	-20
Temperature, max	Non-metallic handle
Transient detect	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 5V @ 1mA min per IEC

Auxiliary contact electrical ratings	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC
Continuous current rating	100 A
Dielectric strength	2200V @ 1min
Electrical interlock ratings	Standard contact 2 NO: 10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
Hp rating, max	75Hp @ 575V AC, 3-phase, 60 Hz per UL and CSA
KW rating, max	55 kW @ 500...600V AC, 3-phase, 50 Hz per IEC (AC23)
Motor drive optional	False
Number of poles	3
Number of switches	1
Operating handle style	Knife switch style handle
Rated permanent current Iu	100 A
Short circuit withstand capability	10000A @ 600V AC/DC, unfused or with class H fuses
Switch and fuse rating (fusing)	100 A switch, non-fusible
Switching frequency, max	6 ops/m
Type of control element	Long turning handle
Type of electrical connection of main circuit	Screw connection
Voltage release optional	False
With pre-assembled cabling	False

Mechanical

Degree of protection	Operating handles: non-metallic Type 1, 3R, 4, 4X, 12
Factory option	Non-metallic handle
Interlockable	True
Material	Switches, mechanisms and accessory kits: Zinc-plated Steel, RoHS compliant finish
Mechanical life operations	10000
Recommended torque	Switch side: 150 in-lb
Version as main switch	True

Construction

Conductor size	Single Port copper lug: 8…1 AWG @ copper conductor
Depth	3.63 in
Device construction	Built-in device fixed built-in technique
Height	8.9 in
Width	6.81 in

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	1494U-N100-C3-N
UPC	887172852350
Estimated Lead Time	30 days
Standard Warranty Duration	1 year See details
Country of Origin	Mexico

Compliance & Environment

Altitude	2000 m (6562 ft) per IEC 947-1
Ambient temperature	Storage: -40...65 °C (-40...149 °F)
Relative humidity	90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1

Electrical & Connectivity

Connection type	Switch body : glass-filled thermoplastic
Efficiency	-20
Flicker	10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
Fuse block option	55 kW @ 500...600V AC, 3-phase, 50 Hz
Hold-up time	-40
Individual harmonics (DC-127th)	50Hp @ 600V DC per UL and CSA
Interharmonics	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA min per IEC
LED status	10000
Level-5 lens color	2000 m per IEC 947-1
NEMA rating designation	100A @ 250/600V DC
Operating distance	2200V @ 1min
Operational range	10000A @ 600V AC/DC : unfused or with class H fuses
Power losses	10
Rated input current	Lug to terminal : 90 in-lb
Rated output current	100 A switch, non-fusible
Special family function	6
Special product function	Knife switch style handle
Spot size	90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1
Sub group	-20
Temperature, max	Non-metallic handle
Transient detect	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 5V @ 1mA min per IEC

Auxiliary contact electrical ratings	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC
Continuous current rating	100 A
Dielectric strength	2200V @ 1min
Electrical interlock ratings	Standard contact 2 NO: 10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
Hp rating, max	75Hp @ 575V AC, 3-phase, 60 Hz per UL and CSA
KW rating, max	55 kW @ 500...600V AC, 3-phase, 50 Hz per IEC (AC23)
Motor drive optional	False
Number of poles	3
Number of switches	1
Operating handle style	Knife switch style handle
Rated permanent current Iu	100 A
Short circuit withstand capability	10000A @ 600V AC/DC, unfused or with class H fuses
Switch and fuse rating (fusing)	100 A switch, non-fusible
Switching frequency, max	6 ops/m
Type of control element	Long turning handle
Type of electrical connection of main circuit	Screw connection
Voltage release optional	False
With pre-assembled cabling	False

Physical Characteristics

Mechanical

Degree of protection	Operating handles: non-metallic Type 1, 3R, 4, 4X, 12
Factory option	Non-metallic handle
Interlockable	True
Material	Switches, mechanisms and accessory kits: Zinc-plated Steel, RoHS compliant finish
Mechanical life operations	10000
Recommended torque	Switch side: 150 in-lb
Version as main switch	True

Construction

Conductor size	Single Port copper lug: 8…1 AWG @ copper conductor
Depth	3.63 in
Device construction	Built-in device fixed built-in technique
Height	8.9 in
Width	6.81 in
