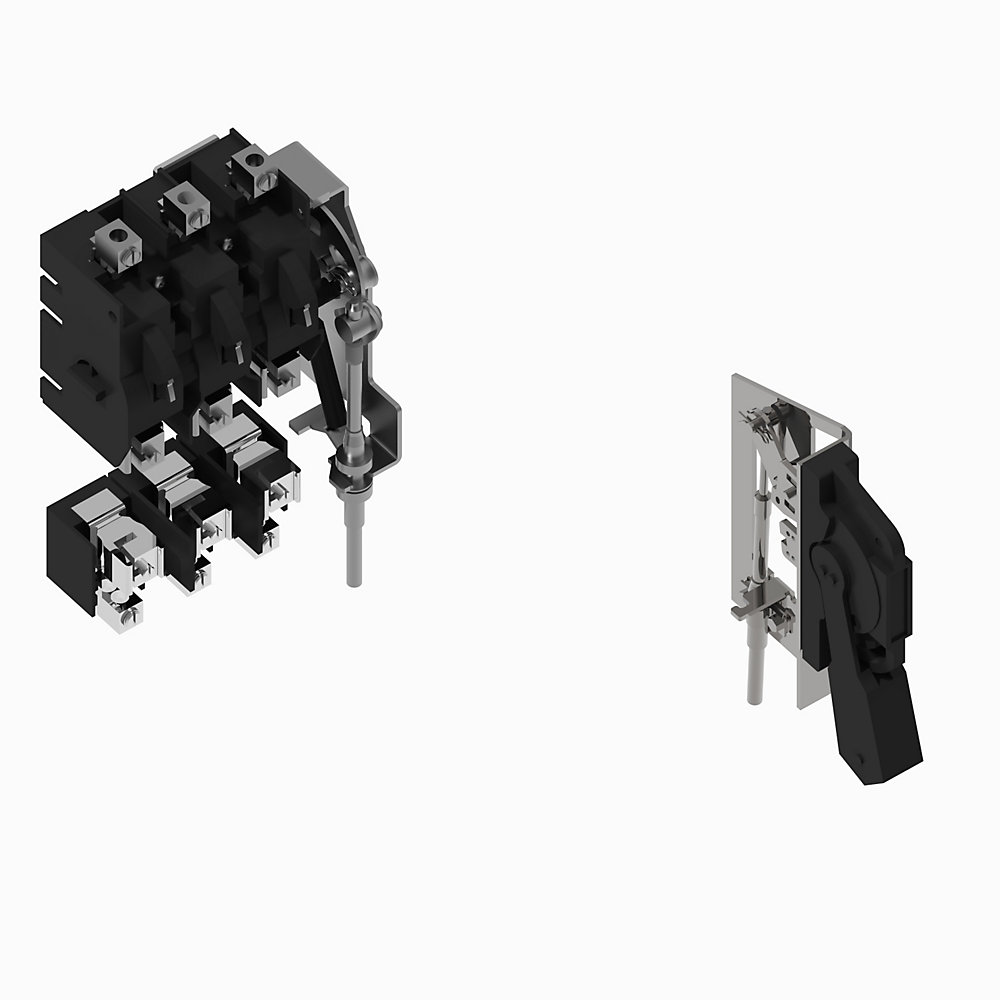

Disconnect Kits

Catalog #: 1494U-J100-CR-S

Lifecycle status: Active

Lifecycle status: Active

Connection type	Switch body : glass-filled thermoplastic
Efficiency	-20 None
Flicker	10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
Fuse block option	55 kW @ 500...600V AC, 3-phase, 50 Hz
Hold-up time	-40 None
Individual harmonics (DC-127th)	50Hp @ 600V DC per UL and CSA
Interharmonics	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA min per IEC
LED status	10000 None
Level-5 lens color	2000 m per IEC 947-1
NEMA rating designation	100A @ 250/600V DC
Operating distance	2200V @ 1min
Operational range	200000A @ 600V AC : with class J or class R fuses
Power losses	10 None
Rated input current	Lug to terminal : 90 in-lb
Rated output current	600V @ 100A switch, 100 A type J fuse clips
Special family function	6 None
Special product function	Knife switch style handle
Spot size	90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1
Sub group	-20 None
Temperature, max	Stainless steel handle
Transient detect	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 5V @ 1mA min per IEC

Number of poles	3
Rated permanent current Iu	100 A
Max. rated operation voltage Ue AC	600 V
Type of control element	Long turning handle
Switching frequency, max	6 ops/m
Continuous current rating	100 A
Number of switches	1 None
Motor drive optional	False
Voltage release optional	False
Type of electrical connection of main circuit	Screw connection
Switch and fuse rating (fusing)	600V @ 100A switch, 100 A Type J fuse clips
Short circuit withstand capability	200000A @ 600V AC, with class J or class R fuses
KW rating, max	55 kW @ 500...600V AC, 3-phase, 50 Hz per IEC (AC23)
Hp rating, max	75Hp @ 575V AC, 3-phase, 60 Hz per UL and CSA
Auxiliary contact electrical ratings	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC
Electrical interlock ratings	Standard contact 2 NO: 10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
With pre-assembled cabling	False
Dielectric strength	2200V @ 1min
Operating handle style	Knife switch style handle

Interlockable	True
Recommended torque	Switch side: 150 in-lb
Version as main switch	True
Factory option	Threaded rod (19 in max.)
Mechanical life operations	10000 None
Degree of protection	Operating handles: Stainless Steel Type 4, 4X
Material	Switches, mechanisms and accessory kits: Zinc-plated Steel, RoHS compliant finish

Width	6.81 in
Device construction	Built-in device fixed built-in technique
Height	8.9 in
Depth	3.63 in
Conductor size	Single Port copper lug: 8…1 AWG @ copper conductor

Type	Resource	Publication
General	Product Cutsheet	--
Technical Data	1494-td002_-en-p	1494-TD002
