1494U-J100-C4-N-NO

Disconnect Kits

Name: Disconnect Kits
Brand: Rockwell Automation
SKU: 1494U-J100-C4-N-NO

Serial #:

Lifecycle status: Active

Description

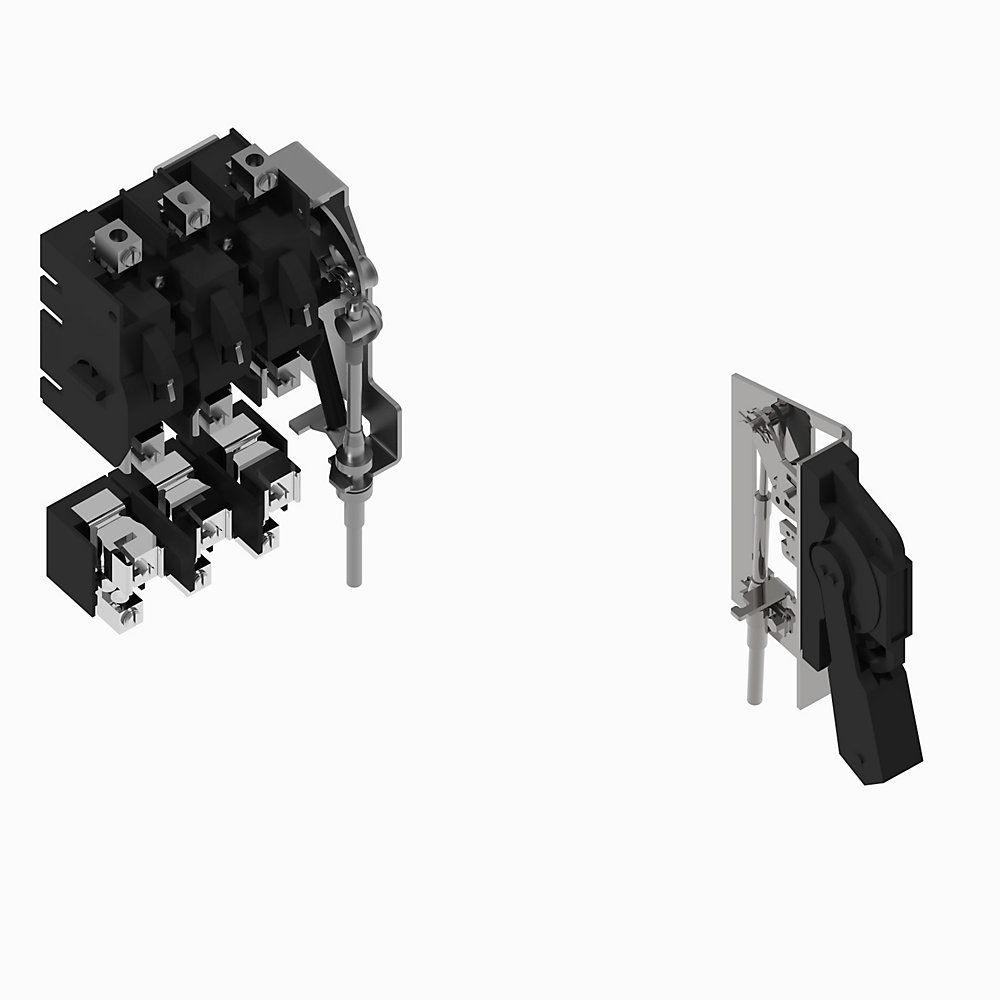

1494U Disconnect Switch Rod or Cable Operated, 100AClass J clips, 600V, 100 A Fusible switch, 100 A clips, Cable length - 4 ft, Non-metallic handle, (1) N.O. auxiliary contact - 10 A

Lifecycle status: Active

Description

1494U Disconnect Switch Rod or Cable Operated, 100AClass J clips, 600V, 100 A Fusible switch, 100 A clips, Cable length - 4 ft, Non-metallic handle, (1) N.O. auxiliary contact - 10 A

Unique Product Identifier	1494U-J100-C4-N-NO
UPC	887172851186
Estimated Lead Time	30 days
Standard Warranty Duration	1 year See details
Country of Origin	Mexico

Altitude	2000 m (6562 ft) per IEC 947-1
Ambient temperature	Storage: -40...65 °C (-40...149 °F)
Relative humidity	90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1

Connection type	Switch body : glass-filled thermoplastic
Efficiency	-20
Flicker	10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
Fuse block option	55 kW @ 500...600V AC, 3-phase, 50 Hz
Hold-up time	-40
Individual harmonics (DC-127th)	50Hp @ 600V DC per UL and CSA
Interharmonics	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA min per IEC
LED status	10000
Level-5 lens color	2000 m per IEC 947-1
NEMA rating designation	100A @ 250/600V DC
Operating distance	2200V @ 1min
Operational range	200000A @ 600V AC : with class J or class R fuses
Power losses	10
Rated input current	Lug to terminal : 90 in-lb
Rated output current	600V @ 100A switch, 100 A type J fuse clips
Special family function	6
Special product function	Knife switch style handle
Spot size	90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1
Sub group	-20
Temperature, max	1 N.O. auxiliary contact (10 A)
Transient detect	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 5V @ 1mA min per IEC

Auxiliary contact electrical ratings	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC
Continuous current rating	100 A
Dielectric strength	2200V @ 1min
Electrical interlock ratings	Standard contact 2 NO: 10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
Hp rating, max	75Hp @ 575V AC, 3-phase, 60 Hz per UL and CSA
KW rating, max	55 kW @ 500...600V AC, 3-phase, 50 Hz per IEC (AC23)
Max. rated operation voltage Ue AC	600 V
Motor drive optional	False
Number of auxiliary contacts as normally open contact	1
Number of poles	3
Number of switches	1
Operating handle style	Knife switch style handle
Rated permanent current Iu	100 A
Short circuit withstand capability	200000A @ 600V AC, with class J or class R fuses
Switch and fuse rating (fusing)	600V @ 100A switch, 100 A Type J fuse clips
Switching frequency, max	6 ops/m
Type of control element	Long turning handle
Type of electrical connection of main circuit	Screw connection
Voltage release optional	False
With pre-assembled cabling	False

Mechanical

Degree of protection	Operating handles: non-metallic Type 1, 3R, 4, 4X, 12
Factory option	Non-metallic handle
Interlockable	True
Material	Switches, mechanisms and accessory kits: Zinc-plated Steel, RoHS compliant finish
Mechanical life operations	10000
Recommended torque	Switch side: 150 in-lb
Version as main switch	True

Construction

Conductor size	Single Port copper lug: 8…1 AWG @ copper conductor
Depth	3.63 in
Device construction	Built-in device fixed built-in technique
Height	8.9 in
Width	6.81 in
