1492-pd4

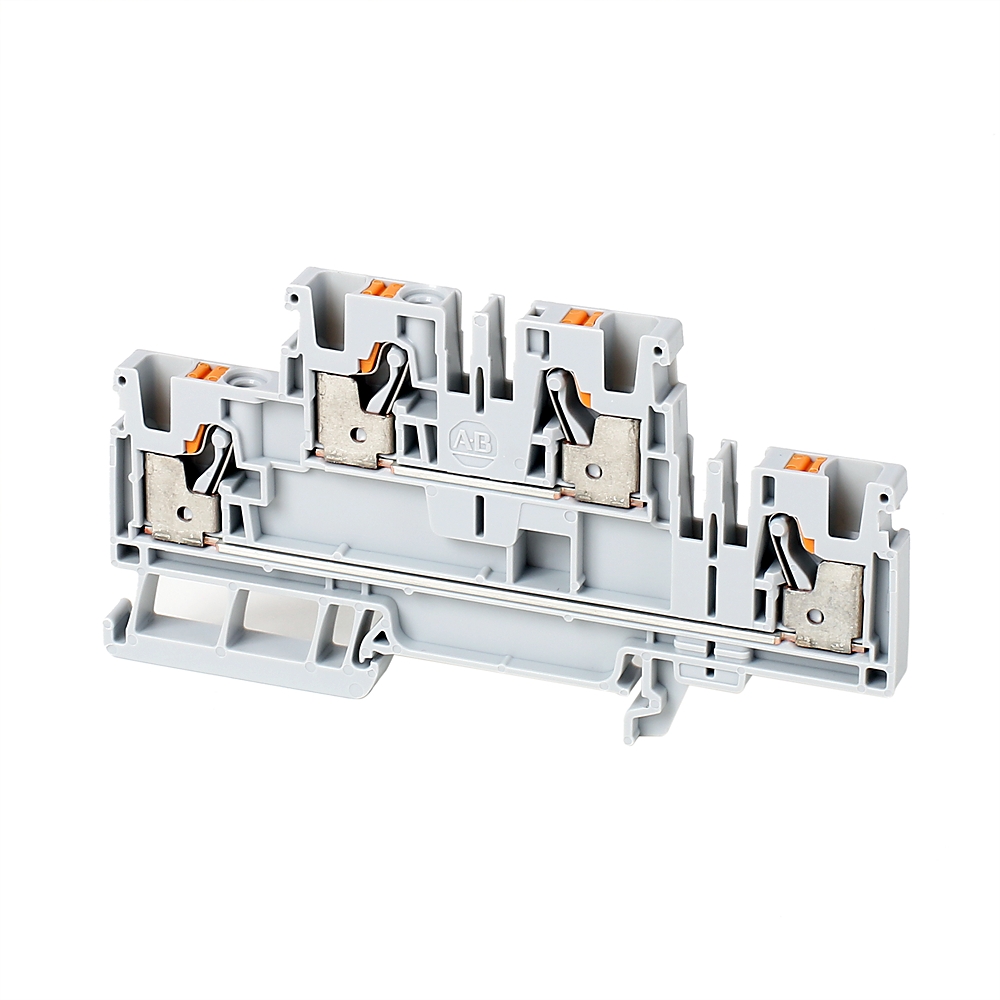

IEC Feed-Through Push-in Terminal Block

Name: IEC Feed-Through Push-in Terminal Block
Brand: Rockwell Automation
SKU: 1492-pd4

Serial #:

Lifecycle status: Active

Description

1492-P Push-in Terminal Blocks , 4 mm² (AWG 26 - AWG 10),30 A , Feed-Through , Multi-Level ,1 Point On Each Side Per Circuit

Unique Product Identifier	1492-pd4
UPC	194033315085
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	>1
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Width	6.1 mm
Height	53.5 mm
Density	49 pcs/ft (100 pcs/m) per UL/CSA/IEC/ATEX

Colour	Grey
Length	100 mm
Wire strip length	12 mm per UL/CSA/IEC/ATEX
Wire range	26...10 AWG rated cross section per UL/CSA, 4 mm² rated cross section per IEC, 4 mm² rated cross section per ATEX

Current, max	32 A per UL/CSA, 32 A per IEC, 25 A per ATEX
Voltage rating	600V AC/DC per UL/CSA, 800V AC/DC per IEC, 550V AC/DC per ATEX
Number of levels	1
Internally connected stages	True
Type of electrical connection 1	Push-in clA connection

Operating temperature	-60 °C
