1492-cm1746-m06

Conversion Module

Name: Conversion Module
Brand: Rockwell Automation
SKU: 1492-cm1746-m06

Serial #:

Lifecycle status: Active

Description

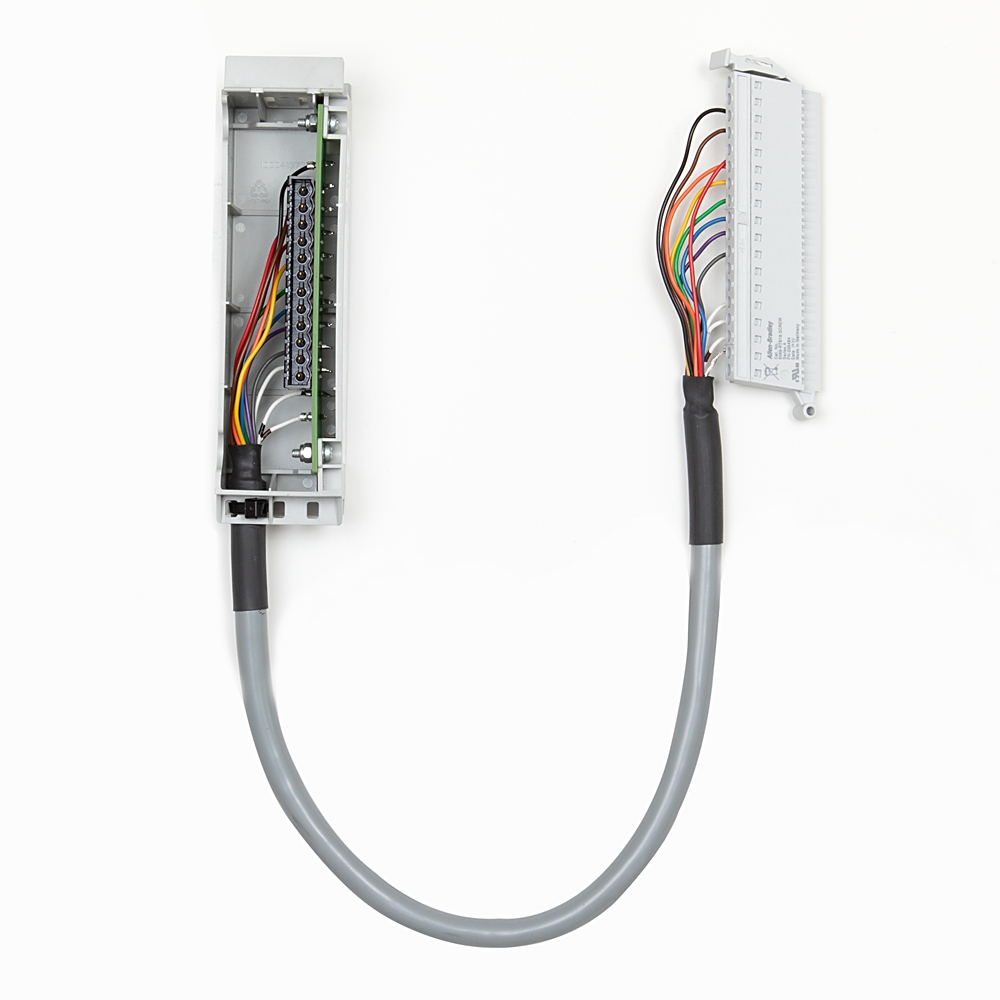

Conversion Cable for 1746-NI4 to 5069-IY4 Field Wiring Conversion System

Unique Product Identifier	1492-cm1746-m06
UPC	194033099992
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	Mexico
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type of voltage (input voltage)	DC
Analogue input, current	True
Analogue input, voltage	True
Analogue output, current	False
Analogue output, voltage	False
Voltage type of supply voltage	DC
Supply voltage DC	18 V
Permitted voltage at input	18 V
Connector type	12-pin
Current, max	30 mA per channel
Feature	High resolution (4) analog input module

Operating temperature	0 °C
Environmental rating	RoHS/EAC
Storage temperature	-40 °C
Humidity	Operating: 5...95% @ 55°C (131 °F)

Length	Cable: approx 590 mm

Shock	Operating: 30 G, Non operating: 50 G

Drawings
3-Dimensional STEP model (STP)	Download (ZIP)
Dimensional Drawing (PDF)	Download (PDF)
Product Drawing	Drawing (DXF)

Drawings
3-Dimensional STEP model (STP) Download (ZIP)
Dimensional Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)

General	Publication
Installation Instructions	--
Product Cutsheet	--

Technical Data	Publication
1492-sg010_-en-p	1492-SG010
