140G-H2C3-C70

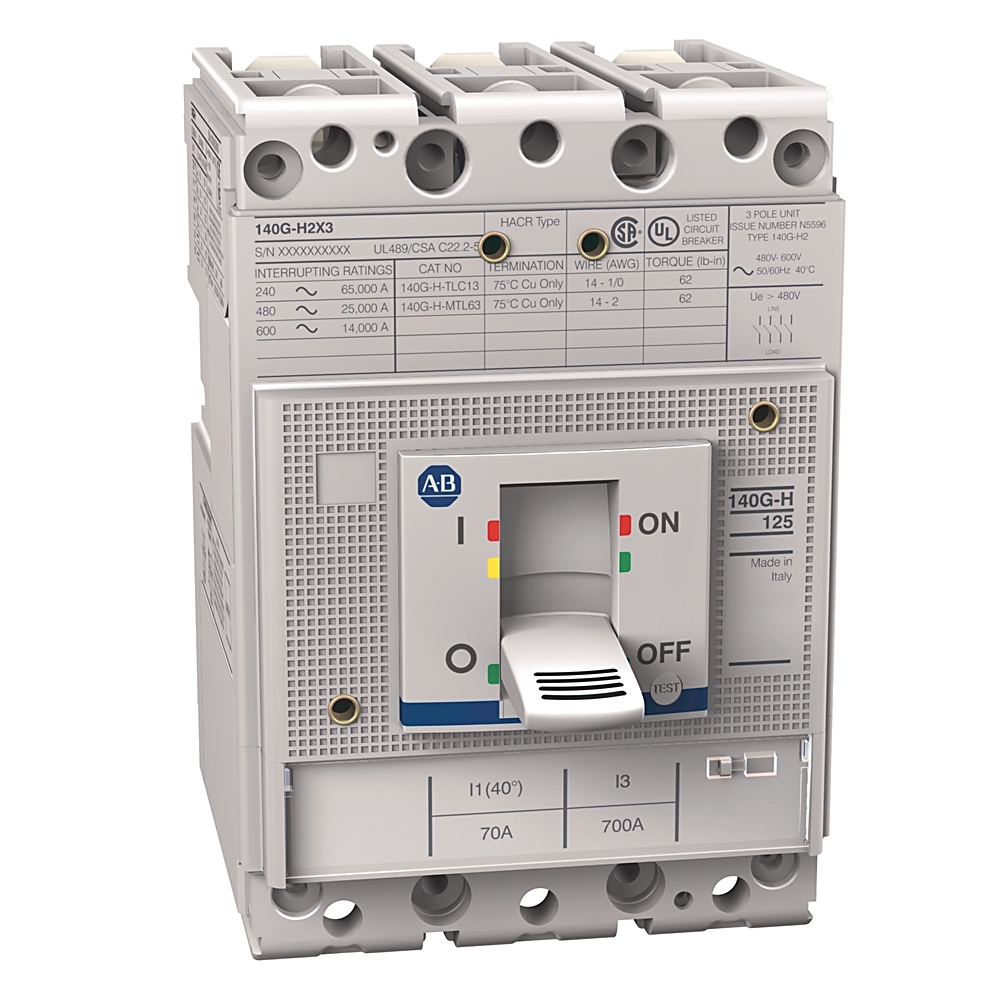

125A H Frame Molded Case Ckt-Bkr

Name: 125A H Frame Molded Case Ckt-Bkr
Brand: Rockwell Automation
SKU: 140G-H2C3-C70

Serial #:

Lifecycle status: Active

Description

140G - Molded Case Circuit Breaker, H frame, 25 kA Interrupt Rating, T/M - Thermal Magnetic, 3 Poles, Rated Current 70 A

Lifecycle status: Active

Description

140G - Molded Case Circuit Breaker, H frame, 25 kA Interrupt Rating, T/M - Thermal Magnetic, 3 Poles, Rated Current 70 A

Unique Product Identifier	140G-H2C3-C70
UPC	887172314124
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	Italy

Ambient temperature without derating	104 °F
Depth	82.5 mm
Operational voltage (Ue)	90% of voltage rating @ 3000 m (9840 ft) altitude
Rated uninterrupted current (Iu)	98% of current rating @ 3000 m (9840 ft) altitude
Storage temperature	-40 °F
Width	90 mm
Wire temperature rating	Cu 75 °C

Complete device with protection unit	True
Electrical life cycle	8000 @ 415V AC
Frame size	125 A
Insulation voltage (Ui)	Rated 1000V per IEC
Integrated earth fault protection	False
Interrupting rating	65kA @ 240V AC, 50/60 Hz per NEMA, UL, CSA
Magnetic trip current (Im)	700 A
Motor drive integrated	False
Motor drive optional	True
Number of poles	3
Position of connection for main current circuit	Front side
Protection type	T/M-fixed thermal/fixed magnetic TMF
Rated impulse withstand voltage (Uimp)	8 kV
Rated permanent current Iu	70 A
Rated service short-circuit breaking capacity (Ics)	IEC 60947-2: 100% lcu @ 500V DC, 3-poles in series, thermal-magnetic trip unit only
Rated ultimate short-circuit breaking capacity (Icu)	IEC 60947-2: 65kA @ 220...230V AC, 50/60 Hz
Thermal trip current (Ir)	70 A
Thermal trip rating, max	70 A @ ambient temperature 40 °C
Type of control element	Toggle
Type of electrical connection of main circuit	Screw connection
Voltage for reverse-fed circuit breaker, max	480V AC per UL/CSA
Watt loss	Thermal magnetic type: 13.3 W
With integrated under voltage release	False
With switched-off indicator	False

Mechanical

DIN rail (top hat rail) mounting optional	True
Degree of protection (IP)	IP40
Factory option	None
Mechanical life operations	25000 /h
Shock	Peak acceleration: 150 m/s² peak, pulse duration 11 ms
Suitable for DIN rail (top hat rail) mounting	False
Vibration	2...13.2 Hz ±1 mm, 13.2...100 Hz ±0.7 G
Weight	2.65 lb

Construction

Device construction	Built-in device fixed built-in technique
Height	130 mm

Drawings
3-Dimensional STEP model (STP)	Download (ZIP)
2-Dimensional Drawing (PDF)	Download (PDF)
Product Drawing	Drawing (DXF)

Drawings
3-Dimensional STEP model (STP) Download (ZIP)
2-Dimensional Drawing (PDF) Download (PDF)
Product Drawing Drawing (DXF)

Click the Download CAD button below to view all file formats available for download.

General	Publication
Specifications and Technical Data	140G-TD101
Link to Literature Library for Selectivity Guide	140G-TD050
Product Cutsheet	--
Link to Literature Library for Installation Instructions	140G-IN097
Breaker Wars: MCCB vs MPCB vs MCP vs MCB Podcast	--

Technical Data	Publication
140g-td102_-en-p	140G-TD102

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

MOROCCO DOC

This product was certified with the above certifications as of 2026-09-13. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
